Stride Right Cast Stair Treads

Stride Right Cast Stair Treads have been installed in thousands of projects throughout the United States. Virgin grain granules cast into the walking surfacewhile the metal is in a molten state create an anti-slip tread that can last the life of the stairway.

LONGEST WEARING: Stair nosings shown here ensure anti-slip protection for pedestrians. They also prevent wear and deterioration at the front edge of each step, which can greatly extend the life of the stairway.

CHOICE OF METALS
Aluminum Corrosion resistant, maintenance free aluminum alloy all purpose usage.
Bronze    Cast iron all purpose usage. Will with-stand heavy industrial punishment.
Nickle Bronze      Cast iron all purpose usage. Will with-stand heavy industrial punishment.
Iron      Cast iron all purpose usage. Will with-stand heavy industrial punishment.

IMPACT RESISTANT: Cast metal stair treads are manufactured with alloys that create highly impact-resistant treads that are able to withstand heavy traffic on interior and exterior stairways

BARRIER FREE: These stair treads are in full compliance with the Barrier-Free Code for all stairways. They offer a solid anti-slip surface and a gently radiused front edge with no projection beyond the riser.

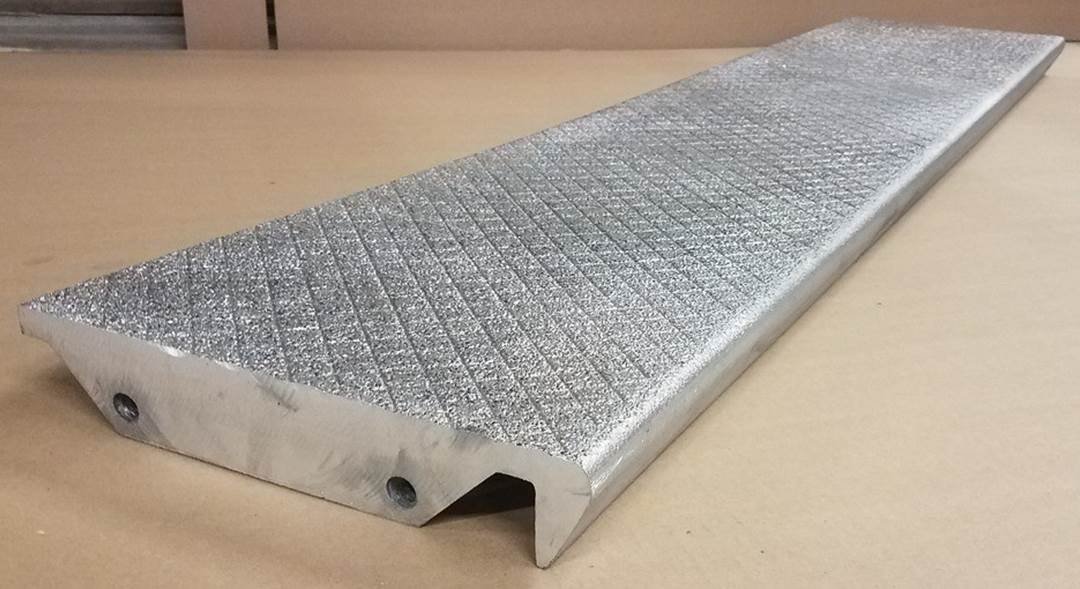

ANTI-SLIP SURFACE: Maximum protection against slip and fall accidents is established through the proper blend of abrasive granules permanently embedded into the exposed walking surface. The process provides effective traction underfoot even when wet and oily. Plain of cross-hatched.

ECONOMICAL: The advanced manufacturing equipment and special molding process assure the lowest cost per unit

Product Number Summary Description Detailed Description
Profile
3697-800-0124 Cast Abrasive Nosing Stride Right Cast Abrasive Nosing; [metal] 5/16" x [3" - 4" - cust] x ____ ; 1/4" rad nose; str back; Anchor: [integral/loose] 1.07#/LF; $/ea (rack#: style-AX)

3697-800-1111 Stride Right Style 1111 - Cast Abrasive Self-Supporting Tread with Toe Flange for Steel Stairs with Risers Stride Right Cast Abrasive Tread; [metal] 1/2" x [10" - 11" - cust] x ____ ; bull nose; toe plate back; Anchor: SS Screws; ___#/LF; $/ea (rack#: style-KK)
  Stride Right Style B-4 - with Beveled Back
  Stride Right Style B-4 - with Square Back


Self-supporting Treads with Toe Flange for Steel Stairs construction with plate riser.

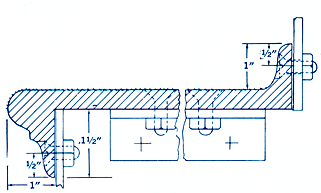

The Stride Right Style 1111 tread is designed for bolting to carrier angles – also for bolting through nosing and toe flange to flat-type plate holes risers. Holes in nosing flanges 9/32″ for 1/4″ countersunk flat-heat bolts. The recommended minimum thickness should be followed: for iron – 7/16″ for aluminum – 3/8″. Ribs provided if necessary.











Specifications: Click HERE for details.
