Sure and Secure Safety Stair Treads
Extruded Aluminum Stair Treads with Aluminum Oxide Abrasive Traction Inserts



Sure and Secure Safety Stair Treads have been designed for both interior and exterior applications. They provide a heat-treated, corrosion resistant, extruded aluminum base with satin/lacquered finish. The diamond-hard aluminum oxide grit in the insert filler material assures long tread life under heavy pedestrian traffic use.

Sure and Secure Safety Stair Treads 3 Profiles Black

Sure and Secure Safety Stair Treads feature a sturdy extruded aluminum base into which is inserted a rock solid abrasive filler made of a material with a high content of aluminum oxide (AL2O3) and which is available in eleven (11) standard colors that extend through the entirety of each insert. The treads are non-combustible and can be ordered in custom lengths up to 12’-0” (3.66 m) maximum in one continuous piece. Lengths required in excess of the maximum one-piece construction will be supplied in equal sections unless otherwise requested. Noncombustible. Protective tape available.

Sure and Secure Safety Stair Treads are intended for pedestrian and light wheeled traffic. Click HERE to review the suggested way to evaluate existing such traeds and to determaine how to rejuvenate or what to do to make the area in question is safe to transverse.

Sure and Secure Safety Stair Treads Architectural Specifications:

• Provide Sure and Secure Safety Stair Treads type ___ safety nosings as produced by Geoffrey Drew Marketing, Inc. d/b/a The Mat King, for interior and exterior stairs.

• Nosing base shall be type 6063-T5 extruded aluminum.

• Anti-slip filler shall contain not less than 65% virgin grain Aluminum Oxide/Silicon Carbide abrasive.

• Nosings shall be noncombustible as tested under Federal Test Method Standard No. 501a. Method 6411.

• Type of anchor shall be specified.

• Nosings shall terminate not more than 4" from ends of steps for poured concrete stairs; for concrete filled steel pan stairs, nosings shall be full length of steps less 1/8" clearance.

• Color shall extend uniformly throughout the filler; black color will be furnished if no other color is specified.

• Nosings shall finish flush with the top of the traffic surrtace.



Guidelines for the Installation of Sure and Secure Safety Stair Treads or Nosing into New Concrete or Steel Pan Filled Stairs:

• The use of very large aggregate in the concrete mix may make placement of the safety nosing difficult.

• Safety nosing placement may be difficult in concrete with very slow slump.

• Place concrete into the stair forms or steel pans as quickly as possible; schedule pours so as to install the metal safety nosings quickly before initial set of concrete occurs.

• Puddle the concrete, tamp the safety nosing to insure proper concrete formation around the anchors.

• Remove protective tape (if used) as soon as practical.

• Order nosings or treads well in advance of the pour or installation date.

• Close stairway after pour; permit no use for 24 hours.

Sure and Secure Safety Stair Treads 3 Profiles Black




Sure and Secure Safety Stair Treads 3 Profiles Black
Colors of Abrasive Insert Grit include:
light green light brown light red concrete grey
Light Green
Light Brown Light Red Concrete Gray

dark green Dark Brown Dark Red Blue
Dark Green Dark Brown Dark Red Blue

Safety Yellow Black White
Safety Yellow Black White





Stair Repair Aluminum & Abrasive Grit Tread System - Standard Types and Sizes

Product Number



Tread or Nosing Depth (from nose to riser)
Diagram

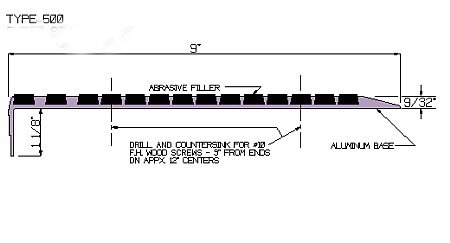

9831-100-0500
Stair Repair, Alum w/Alum Oxide Color: ___; replacement tread, [____] treads 9/32"x 9" x __", Nose =1-1/8" straight, Back= Bev 1", 3.3#/LF, $/LF (rack#: wp-500)
Type 500

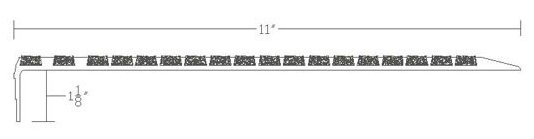

9831-100-0511 Stair Repair, Alum w/Alum Oxide Color: ___; ___ pcs each being 9/32"x11"x __" (tread width), Nose =1-1/8" straight, Back= Bev 1", 3.6#/LF, $/LF (rack#: 511) Type 500
9840-100-0121

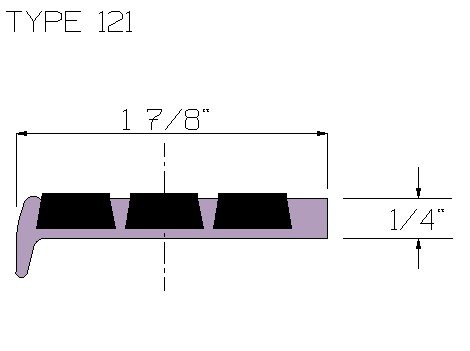

Sure & Secure Type 121, Alum with Alum Oxide Color: ___; __ pcs of 1/4" x 1-7/8" x ___"; Nose = rounded, Back= Sq, 0.64#/LF, $/LF (rack#: 121)

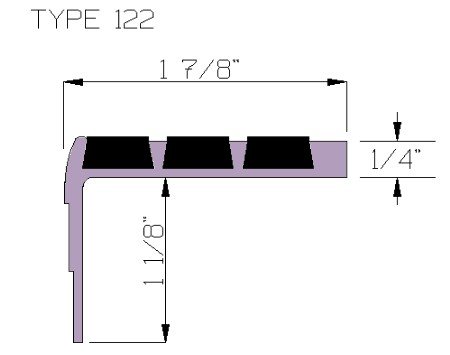

9840-100-0122 Sure & Secure Stair Tread; Type 122;Alum w/Grit;Anchor: [Aro/Holes];Color: ___; __ pcs 1/4''x1-7/8''x__ ; Nz = 1-1/8 Rnd; Back=Sq; __#/LF; $/LF(rack#: SG-122)

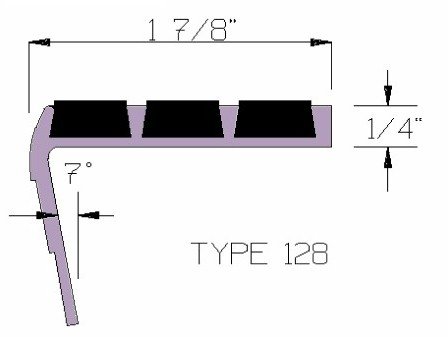

9840-100-0128

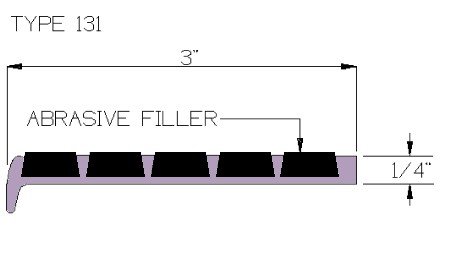

9840-100-0131 Sure & Secure Stair Tread; Type 131;Alum w/Grit;Anchor: [Aro/Holes];Color: ___; __ pcs 1/4''x 3''x__ ; Nz = Rnd; Back=Sq; __#/LF; $/LF(rack#: SG-131)

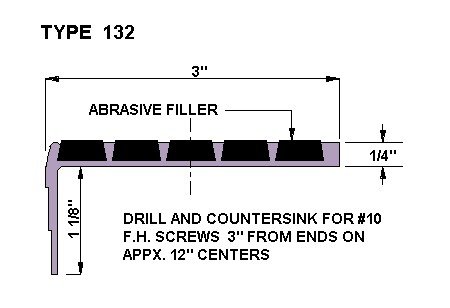

9840-100-0132 Sure & Secure Stair Tread; Type 132;Alum w/Grit;Anchor: [Aro/Holes];Color: ___; __ pcs 1/4''x 3''x__ ; Nz = 1-1/8 Rnd; Back=Sq; __#/LF; $/LF(rack#: SG-132)

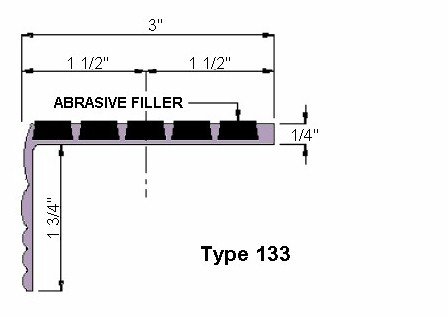

9840-100-0133 Sure & Secure Stair Tread; Type 133;Alum w/Grit;Anchor: [Aro/Holes];Color: ___; __ pcs 1/4''x 3''x__ ; Nz = 1-3/4 Rnd; Back=Sq; __#/LF; $/LF(rack#: SG-133)

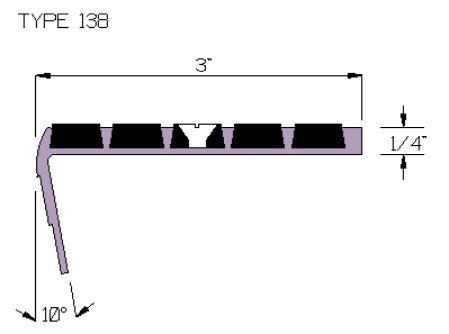

9840-100-0138 Sure and Secure Safety Tread, Type 138, Alum w/Grit; Anchor: [Aro/Holes]; Color: ___; __ pcs 1/4"x3"x__ , Noz = Slant, Back= Sq, ___#/LF, $/LF (rack#: SG-231BF)

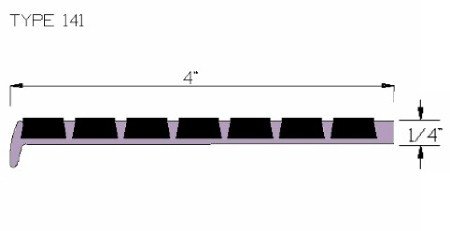

9840-100-0141 Sure & Secure Stair Tread; Type 141;Alum w/Grit;Anchor: [Aro/Holes];Color: ___; __ pcs 1/4''x 4''x__ ; Nz = 10() Rnd; Back=Sq; __#/LF; $/LF(rack#: SG-141)

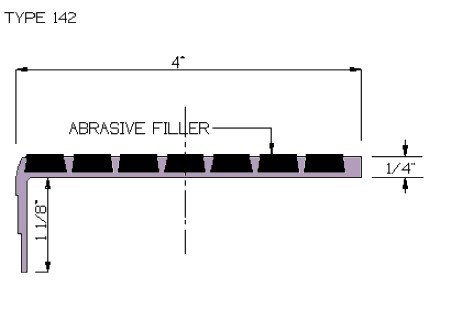

9840-100-0142 Sure & Secure Stair Tread; Type 142;Alum w/Grit;Anchor: [Aro/Holes];Color: ___; __ pcs 1/4''x 4''x__ ; Nz = 1-1/8 Rnd; Back=Sq; __#/LF; $/LF(rack#: SG-142)

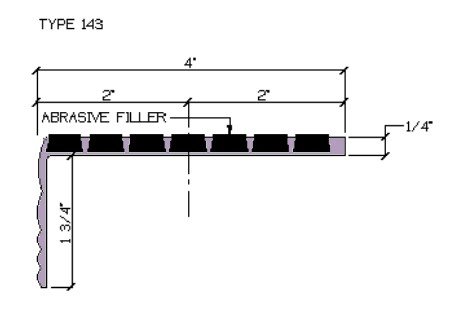

9840-100-0143 Sure & Secure Stair Tread; Type 143;Alum w/Grit;Anchor: [Aro/Holes];Color: ___; __ pcs 1/4''x 4''x__ ; Nz = 1-3/4 Rnd; Back=Sq; __#/LF; $/LF(rack#: SG-143)

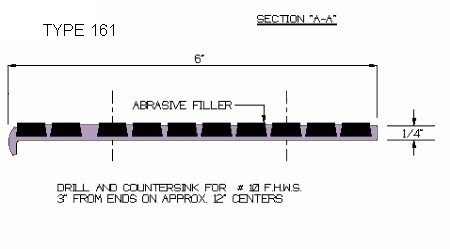

9840-100-0161 Sure & Secure Stair Tread; Type 161;Alum w/Grit;Anchor: [Aro/Holes];Color: ___; __ pcs 1/4''x 6''x__ ; Nz = Rnd; Back=Sq; __#/LF; $/LF(rack#: SG-161)

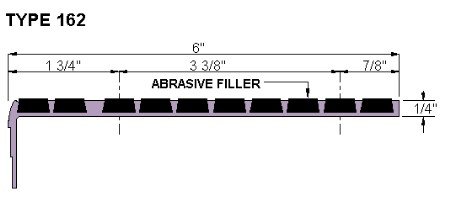

9840-100-0162 Sure & Secure Stair Tread; Type 162;Alum w/Grit;Anchor: [Aro/Holes];Color: ___; __ pcs 1/4''x 6''x__ ; Nz = 1-1/8 Rnd; Back=Sq; __#/LF; $/LF(rack#: SG-162)
9840-100-0231

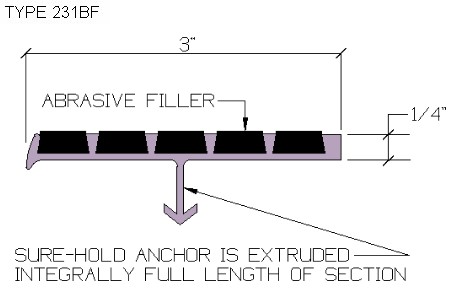

Sure and Secure Safety Tread, Type 231BF, Alum w/Grit; Anchor: [Aro/Holes]; Color: ___; __ pcs 1/4"x3"x__ , Noz = Rnd, Back= Sq, 1.1#/LF, $/LF (rack#: SG-231BF)
9840-100-0232

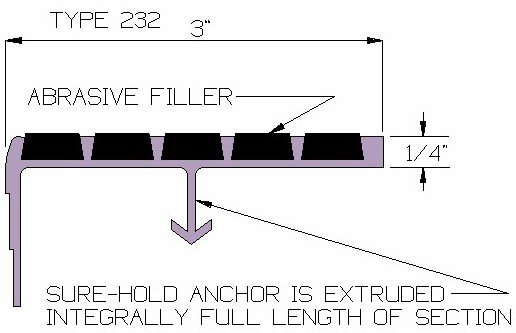

Sure and Secure Safety Tread, Type 232, Alum w/Grit; Anchor: [Aro/Holes]; Color: ___; __ pcs 1/4"x3"x__ , Noz = 1-1/8", Back= Sq, 1.1#/LF, $/LF (rack#: SG-232) Architectural Specifications

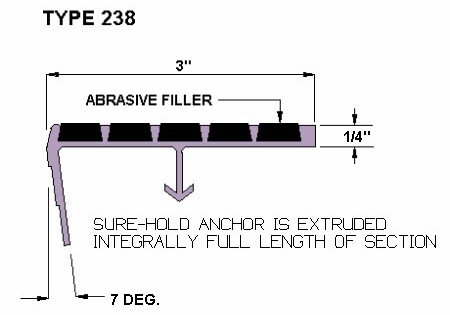

9840-100-0238 Sure & Secure Stair Tread; Type 238;Alum w/Grit;Anchor: [Aro/Holes];Color: ___; __ pcs 1/4''x 3''x__ ; Nz = 1-1/8 7()Rnd; Back=Sq; __#/LF; $/LF(rack#: SG-238)
9840-100-0241

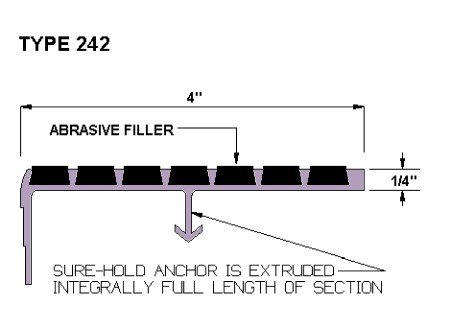

9840-100-0242 Sure & Secure Stair Tread; Type 242;Alum w/Grit;Anchor: [Aro/Holes];Color: ___; __ pcs 1/4''x 4''x__ ; Nz = 1-1/8 Rnd; Back=Sq; __#/LF; $/LF(rack#: SG-242)

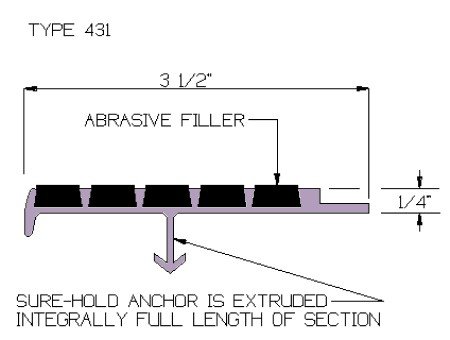

9840-100-0431 Sure & Secure Stair Tread; Type 431;Alum w/Grit;Anchor: [Aro/Holes];Color:___;__ pcs 1/4''x 3-1/2''x__;Nz=1-1/8 Rnd;Back=recessed;__#/LF; $/LF(rack#: SG-431)

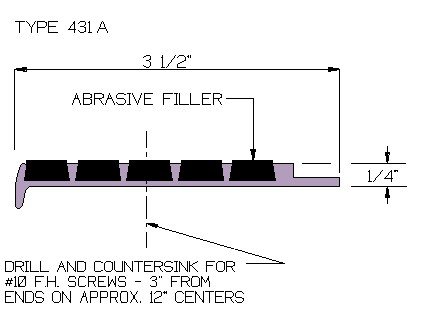

9840-200-0431

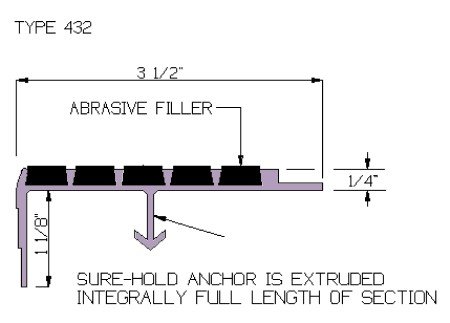

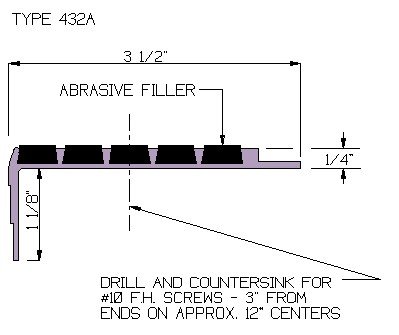

9840-100-0432 Sure & Secure Stair Tread; Type 432;Alum w/Grit;Anchor: [Aro/Holes];Color:___;__ pcs 1/4''x 3-1/2''x__;Nz=1-1/8 Rnd;Back=recessed;__#/LF; $/LF(rack#: SG-432)
9840-200-0432

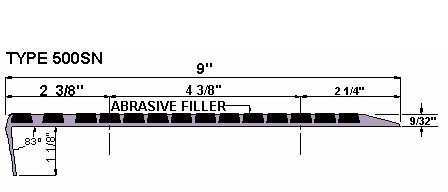

9831-200-0500
Stair Repair, Type 500SN, Alum w/Alum Oxide Color: ___; replacement tread, 9/32" x 9" x___" , Nose =1-1/8" SLANTED, Back= Bev1", 3.3#/LF, $/LF (rack#: wp-500sn)
9831-200-0511

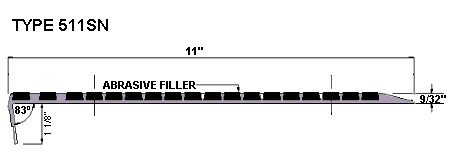

Stair Repair, Type 511SN, Alum w/Alum Oxide Color: ___; replacement tread, 9/32" x 11" x___"; Nose =1-1/8" SLANT, Back= Bev 1", 3.3#/LF, $/LF (rack#: wp-511sn)

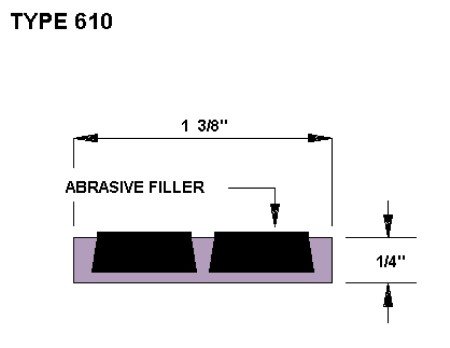

9840-100-0610 Sure & Secure Stair Tread; Type 610;Alum w/Grit;Anchor: [Aro/Holes];Color:___;__ pcs 1/4''x 1-3/8''x__;Back=Sq;__#/LF; $/LF(rack#: SG-610)

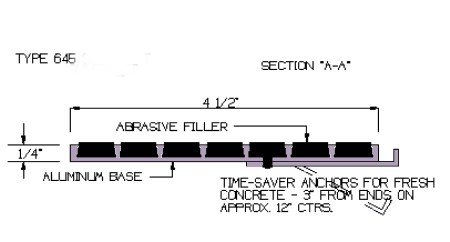

9840-100-0645 Sure & Secure Stair Tread; Type 645;Alum w/Grit;Anchor: [Aro/Holes];Color:___;__ pcs 1/4''x 4-1/2''x__;Back=Sq;__#/LF; $/LF(rack#: SG-645)
9831-100-0182

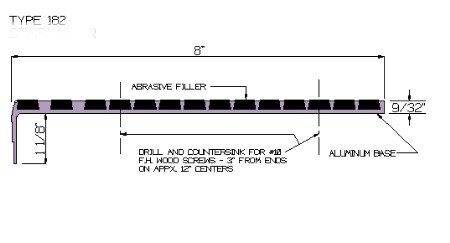

Stair Repair, Alum with Alum Oxide Color: ___; replacement tread, __ pcs each is 9/32"x 8"x ___, Nose =1-1/8" straight, Back= Sq, 3.3#/LF, $/LF (rack#: wp-182)

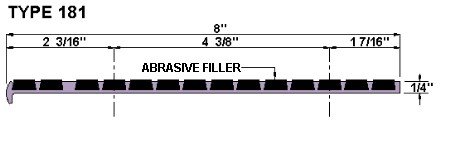

9831-300-0181
Sure & Secure Stair Tread; Type 181;Alum w/Grit;Anchor: [Aro/Holes];Color:___;__ pcs 1/4'' x 8'' x__; Nose = 1/4";Back=Sq;__#/LF; $/LF(rack#: SG-181)

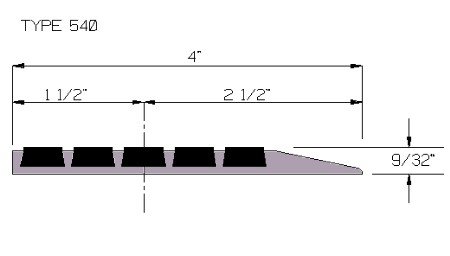

9831-400-0540
Stair Repair, Alum with Alum Oxide Color: ___; replacement tread, __ pcs each is 9/32"x 4"x ___, Nose = 0", Back= Beveled, 1.30#/LF, $/LF (rack#: wp-540)

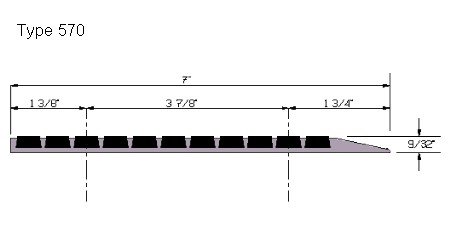

9831-400-0570
Stair Repair, Alum with Alum Oxide Color: ___; replacement tread, __ pcs each is 9/32"x 7"x ___, Nose = 0", Back= Beveled, 3.25#/LF, $/LF (rack4#: wp-570)

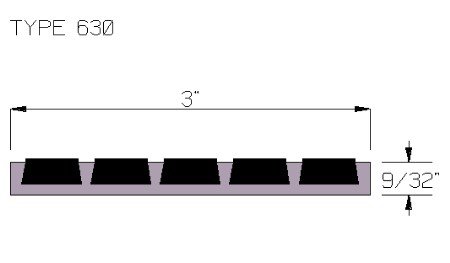

9831-400-0630
Stair Repair, Alum with Alum Oxide Color: ___; replacement tread, __ pcs each is 9/32"x 3"x ___, Nose = 0", Back= Sq, 1.25#/LF, $/LF (rack#: wp-630)

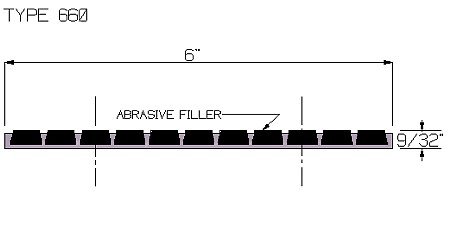

9831-400-0660
Stair Repair, Alum with Alum Oxide Color: ___; replacement tread, __ pcs each is 9/32"x 6"x ___, Nose = 0", Back= Sq, 1.15#/LF, $/LF (rack#: wp-660)

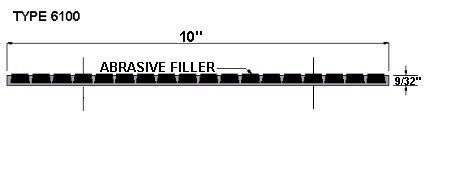

9831-400-6100
Stair Repair, Type 6100, Alum with Alum Oxide Color: ___; replacement tread, 9/32"x 10"x __, Nose = none, Back= Sq, 3.3#/LF, $/LF (rack#: wp-6100)

Rubber Base Construction Adhesive
Product Number Description
9831-999-0001 Stair Repair Heavy Duty Construction Adhesive, Carton of (12) 10-1/2 ounce cartridges; Coverage estimate 70 LF/carton, $/carton (rack#: 500-adhesive)
$94.50/carton

Plastic Leveling Compound
Product Number Description
9831-990-0050 Leveling Compound; "just-add-water" ready to trowel; Coverage 50 SF at 1/8" thickness; 50#/drum, $/drum (rack#: wp-lev)
$74.50/drum

Evaluation of Existing Treads and Repair
