The DynaCushion Play Mat is a patented product that
is intended for use to provide or enhance playground safety.
The DynaCushion Play Mat is composed
of reclaimed tire rubber glued together with a non-soluble
adhesive to form the 4 ft. x 6ft. x 2 inches thick design.
The reclaimed rubber contains no metals. The rubber is passed
by a magnet and through a shaker screen to ensure proper
removal of any metal prior to manufacturing.
The DynaCushion Play Mat provides a fall height of 5 feet
at an ambient temperature of 73 degrees F.

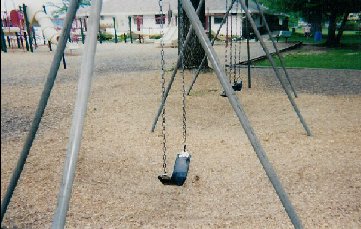

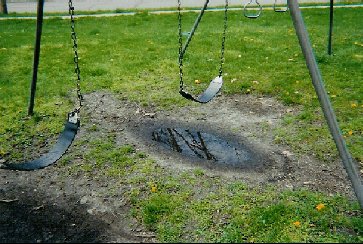

The DynaCushion Play Mat has been designed as a simplified
method to stabilize and limit the loss or displacement of
loose-fill material in areas of high traffic and/or kick-out
on playgrounds. The DynaCushion mat may also be used to
provide a stable slip-resistant access surface glued to
a solid sub surface.

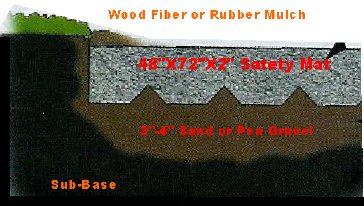

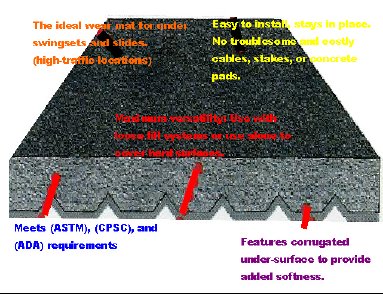

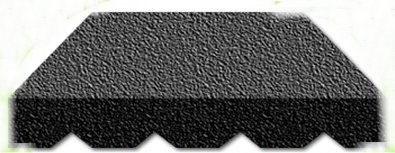

One side of the DynaCushion is flat and rough and the other
side is designed featuring V-shaped grooves.
The DynaCushion Play Mat is permeable, allowing water to

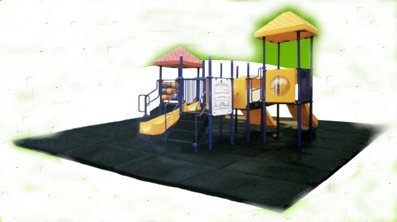

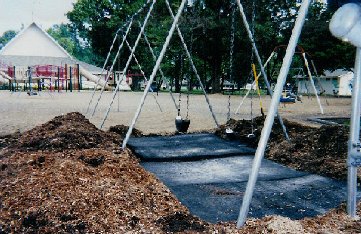

The DynaCushion Play Mat can stand alone or be used in
conjunction with loose fill material such as sand, pea gravel,
and wood fiber safety surfaces to reduce kick-out underneath
playground equipment. Each DynaCushion weighs 192 (+ or
– 3 lbs.) pounds.
DynaCushion can be supplied with Beveled Safety Edges,
which are advisable where the mats will create a drastic
difference in terrain such as when applied on a cement of
black top base.
When Beveled Safety Edges are used, the DynaCushion mats
are specially fabricated to a thickness of 2-1/4”
to accommodate the edge units. The fall height rating and
pricing is the same as the 2” thick version. Beveled
Safety Edges are to be adhered in the field to the edges
of their corresponding DynaCushion using DynaGrip Adhesive.
Oddly shaped playground layouts can be cut to size in the
factory to enable easy on site assembly with minimal if
any onsite trimming required.
