Zap Control Industrial Workstation Grounding Kit 8034
Basic Items for a Static Safe Environment.

The Zap Control Workstation Grounding Kit 8034 provides the basic items needed to create a static-safe work environment. Each kit includes a floor mat, a table mat, an adjustable wrist strap with grounding cord and the accessories to properly connect all the kit components.

Zap Control Workstation Grounding Kit 8034 - includes the following:

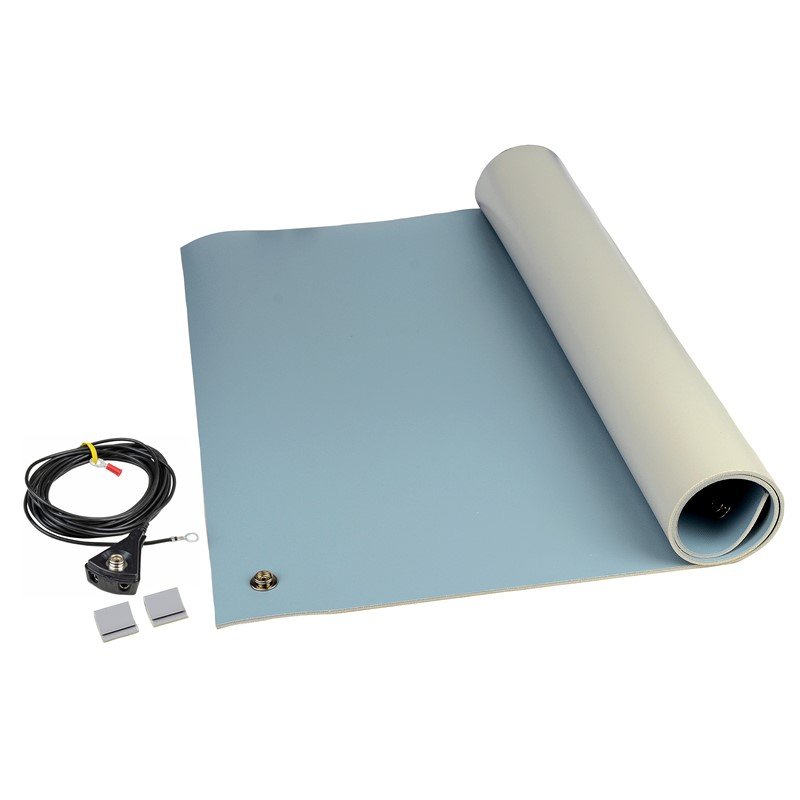

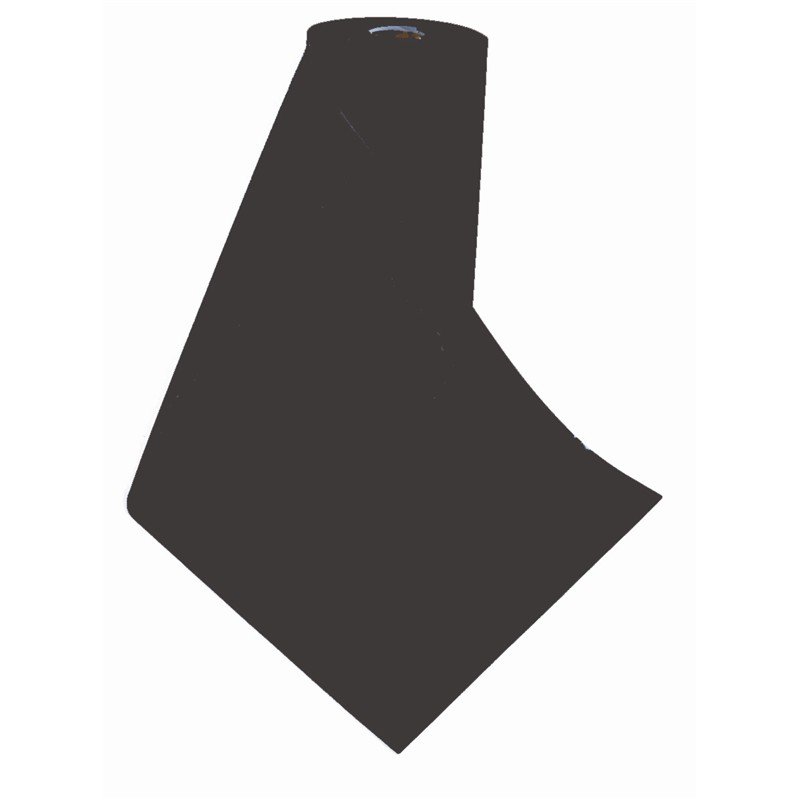

Conductive Black Rubber Floor Mat; 0.125" X 48" x 72"; with ground cord snap..		Premium 24" x 48" Anti-Static Table Mat; Blue, with ground cord snap..
		another view
Reversible Conductive Rubber Floor Matting Provides a flooring surface that does not generate a static charge and will act as part of the path to ground for an operator wearing ESD footwear Rtt: < 1 x 106 ohms per ANSI/ESD 7.1 and ESD TR53 Meets the required limits of ANSI/ESD S20.20 and is suitable flooring component in personnel grounding Footwear/Flooring System (Ref: STM97.1 and STM97.2). The resistance range of the surface layer remains low enough to act as a path to ground with the normal buildup of dirt and grime on the mat. Low Profile Reduces trip hazards and designed for use in high traffic areas and good for use under chairs and carts. Made in the United States of America		3-Layer Vinyl Material Provides reliable path-to-ground and eliminates static charge generation as a worksurface table mat, shelf liner, and cart liner. Dissipative (1 x 106 < 1 x 109 ohms Rtt) Top Color Layer Meets ANSI/ESD S20.20 worksurface required limit and recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items. Electricals will not drift for the life of the mat. Highly, Conductive Scrim Middle Layer Provides main discharge path to ground. Dissipative (1 x 106 < 1 x 109 ohms Rtt) Foam Bottom Layer Provides durable, nonskid cushion, choice for components susceptible to physical shock. Mat Kit Includes: 1 Wrist Strap Grounding System 2  Snap Fasteners (snaps installed on long side of mat) Compatible with Constant Monitors Lead-free RoHS 2, REACH and Conflict Minerals compliant Made in the United States of America
Homogeneous conductive rubber construction of the Conductive Floor Mat for Hard Floors ensures rapid discharge from personnel wearing heel grounders. The low profile reduces trip hazards and is preferred for use with rolling carts or chairs. This mat is reversible. Conductive Floor Mat meets the ANSI/ESD S20.20 flooring required limit tested per ANSI/ESD STM7.1 and ESD TR53, and is suitable as the flooring component of a Footwear / Flooring personnel grounding system tested per ANSI/ESD STM97.1.		Dissipative Vinyl Three-Layer Mat are soft table mats with a three-layer construction that meet ANSI/ESD S20.20 tested per worksurface standard ANSI/ESD S4.1 and ESD TR53. The top color layer is durable static dissipative vinyl, which has sufficiently low resistance to discharge static-laden conductors, yet will help prevent the shorting of pins on the backs of printed circuit boards laid on the mat. The middle layer is a highly-conductive scrim that provides the main discharge path to ground, and the bottom layer is static-dissipative foam, providing a durable nonskid cushion. Compatible with Constant Monitors.

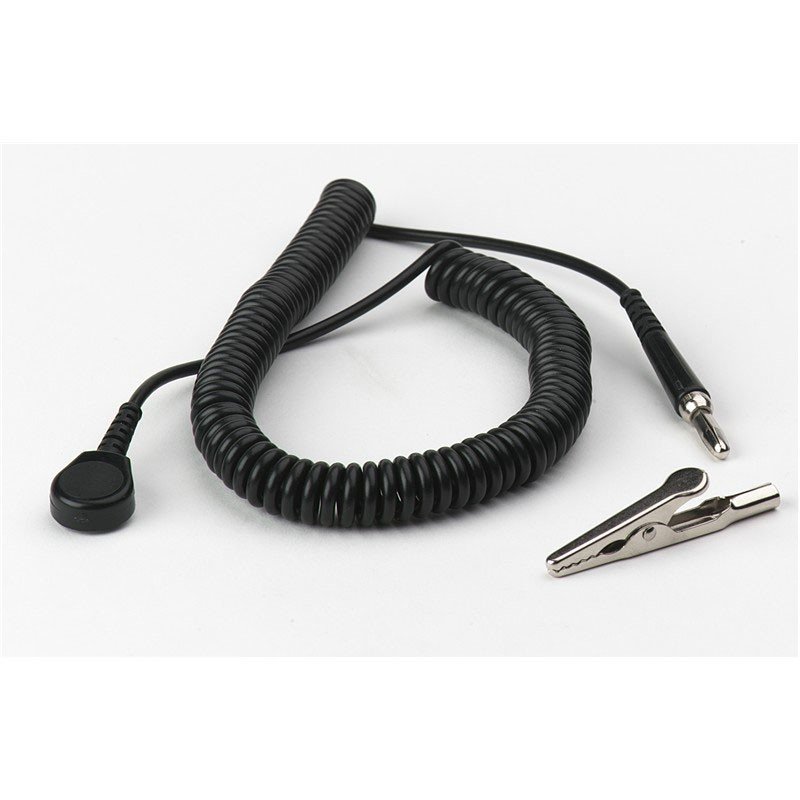

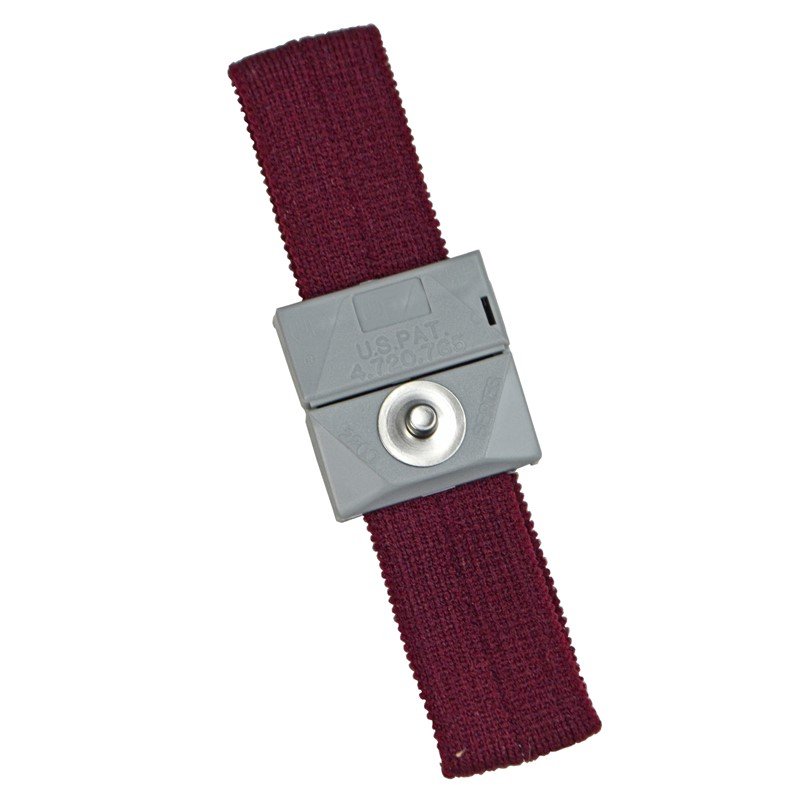

5 Foot Long Coiled Grounding Cord Kit - Estimated Shipping Weight: 0.07 lb		Wrist Strap - Adjustable Wrist Strap with 5' long coiled ground cord featuring 1 magohm resistor built in and 1/8" (4 mm) snap end available.
The Wrist Strap Ground Cords are highly durable with segmented strain relief, and a single bundle of tinsel conductors laced for great strength and reinforced with strong synthetic fibers.  Coiled cord, 5 ft. (1.5 m), includes alligator clip.		Adjustable Wrist Straps provide a comfortable, custom fit. One size adjusts to most any size wrist to provide reliable, 360-degree protection. A 1 megohm resistor is built into the ground cord. Available with 1/8 in. (4 mm) snap end.

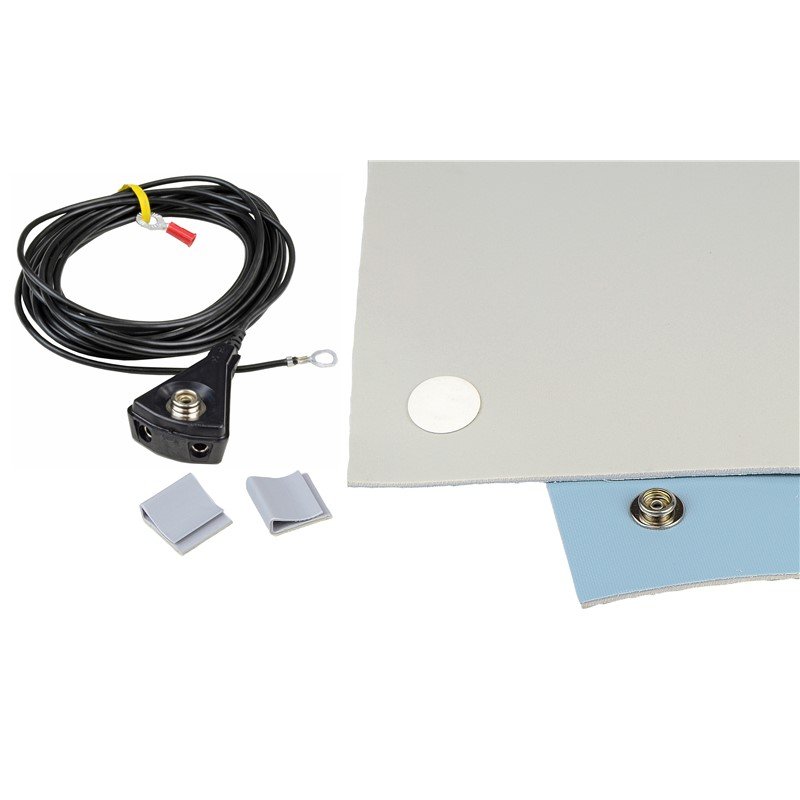

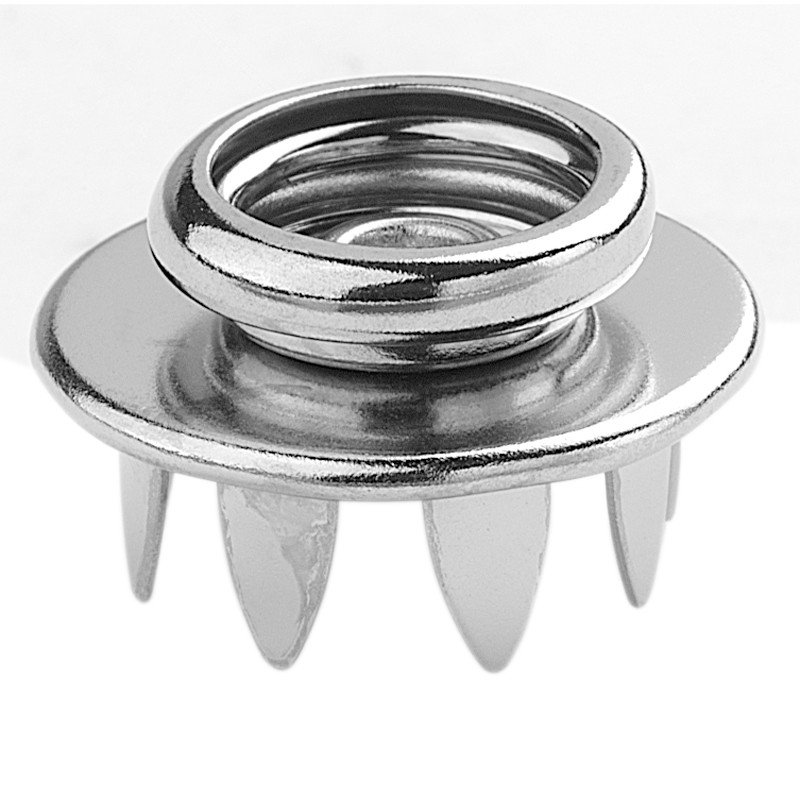

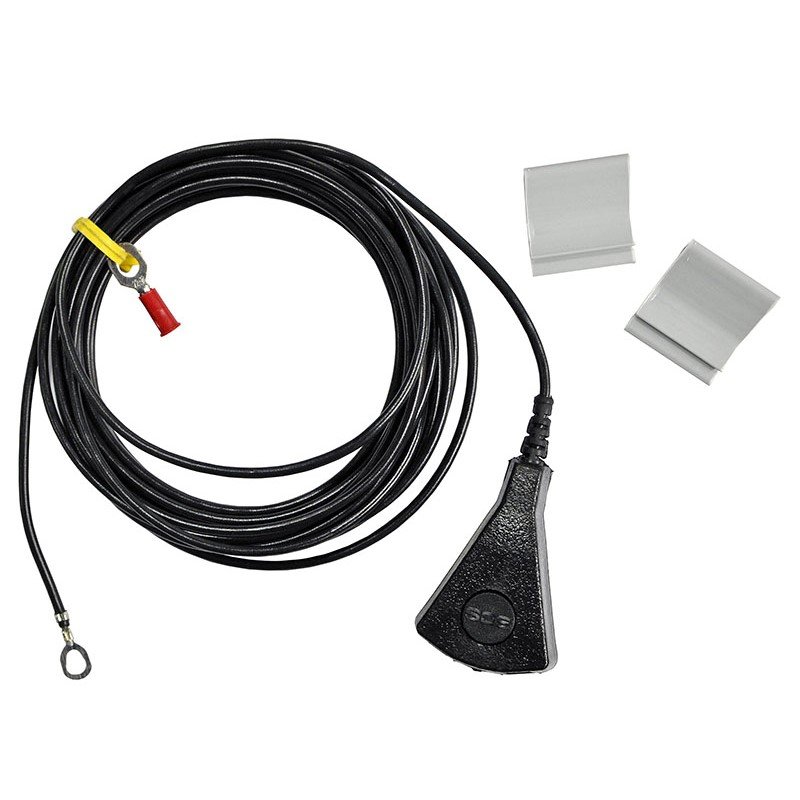

Common Ground Cord Kit - 15 ft., 10mm Male Snap.		Snap, 10mm, 3050, Female Socket, 8-Prong
Easily snaps onto mats and runners, (10 mm snap); grounds two single conductor wrist straps. Comes complete with ring connector and 15 ft. (4.6 m) ground cord. Ground cord has a one megohm resistor for mat connection only. Estimated Shipping Weight: 3.94 lb (Also, pictured above with Premium 24" x 48" Anti-Static Table Mat).		Snap Fastener for mats and runners.  3/8" Female 8 prong snap. Ten of these Snap Fasteners are included in the Zap Control Workstation Grounding Kit 8034 and are installed on the long side of the table mat.
Zap Control Workstation Grounding Kit 8034 Product Number Description Detailed Description Price/Kit 1201-000-8034 Zap Control Work Station Grounding Kit 8034 Zap Control Work Station Grounding Kit 8034; Blue 2'x4' ESD table mat; Black 4'x6' Cond Floor Mat; 5' and 15' Grnd Cords; Wrist Strap; snaps installed (rack#: V-69632) $1,059.91 Please Note: Prices are exclusive of shipping. Deliveries to NY, NJ or CT are subject to applicable State Sales Tax.   Availability: Allow two 2 to 3 weeks after receipt of order exclusive of transit time. FOB mill. How to Order - Please provide quantity required, destination city, state and Zip Code, along with contact person's name, company name, contact phone number, and e-mail address for custom quote including shipping details. Thank you.
