Static Electric Discharge Control Carpet
Squares
For areas where uncontrolled
static electric discharges can mean real trouble. |
 |
|

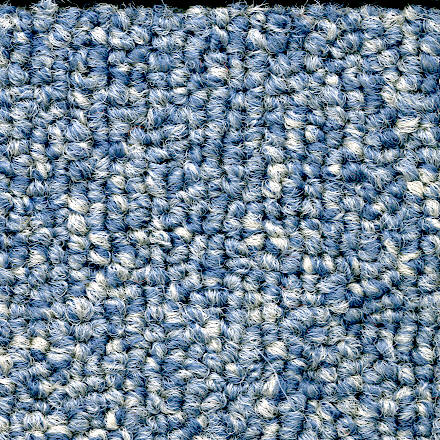

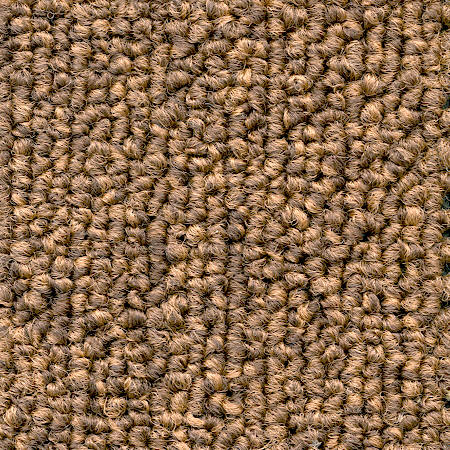

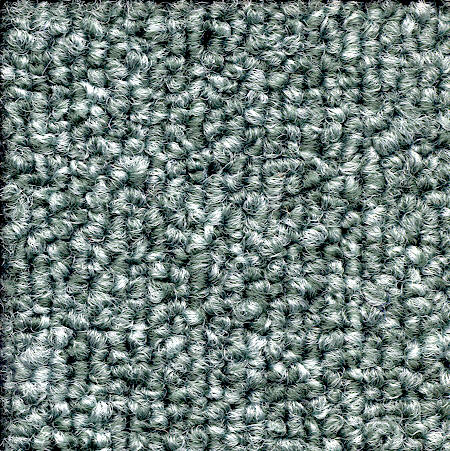

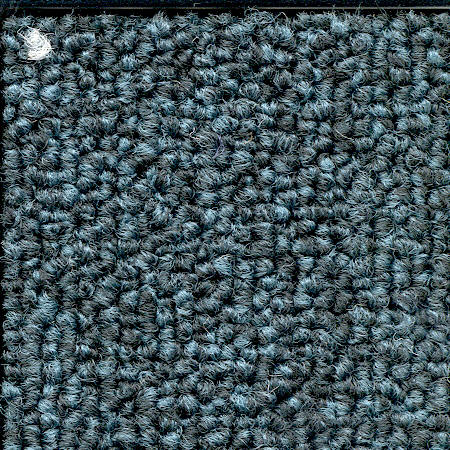

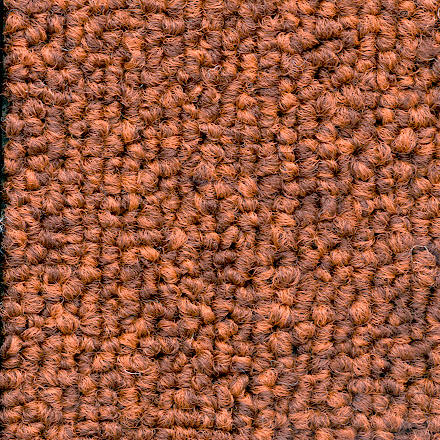

Sturdy dependable protection against static dissipative discharges

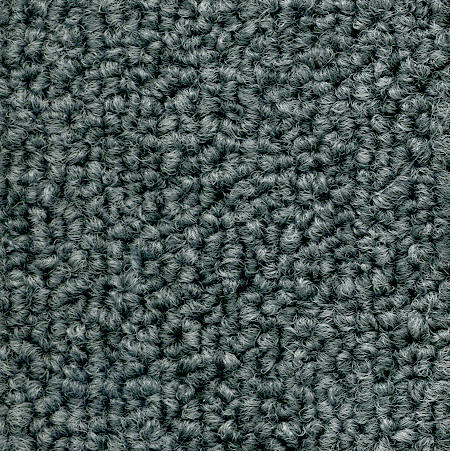

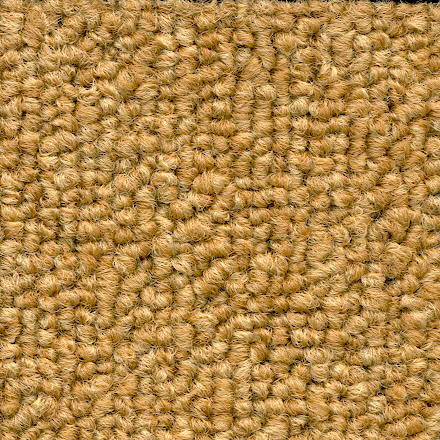

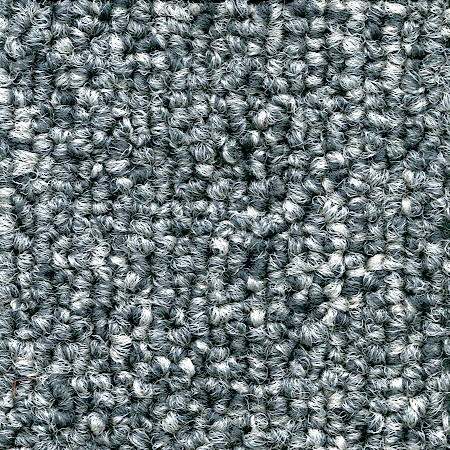

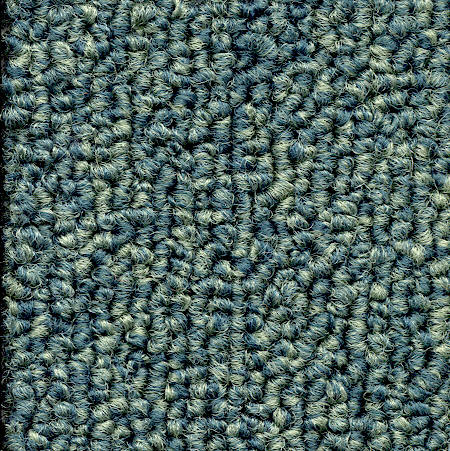

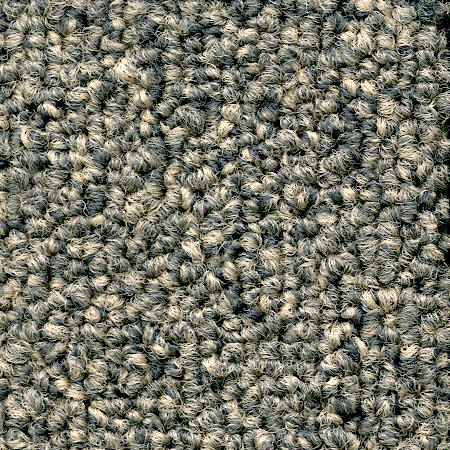

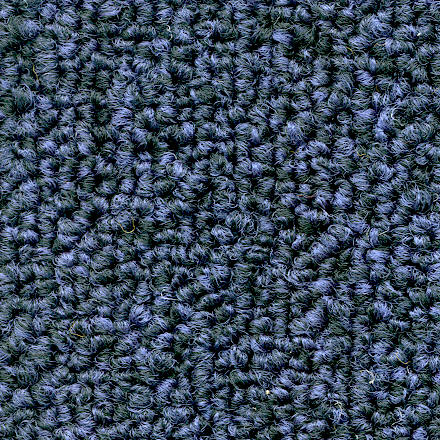

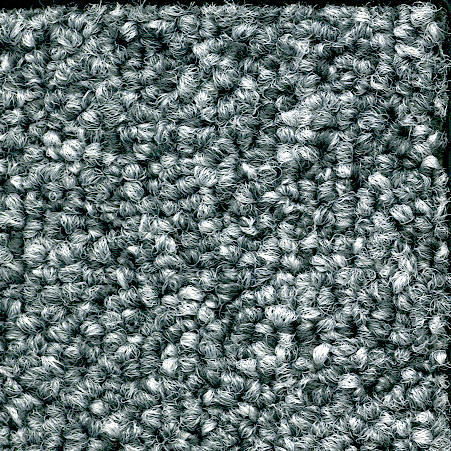

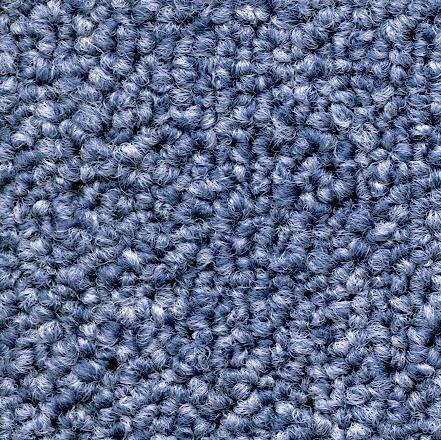

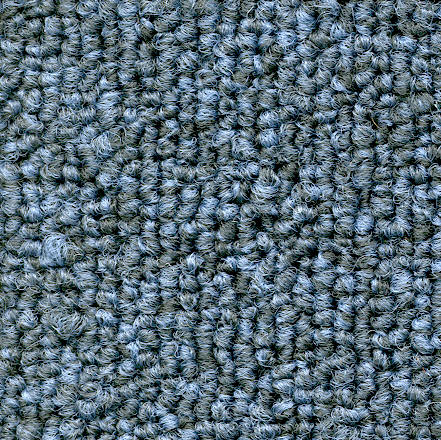

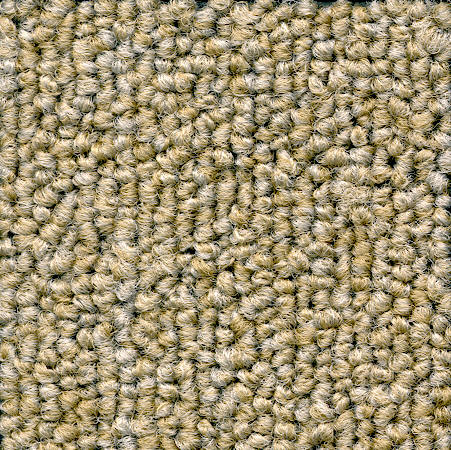

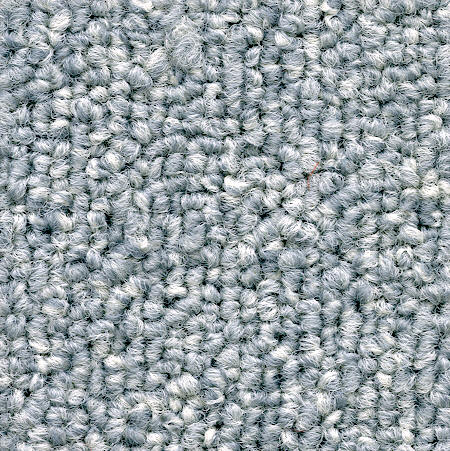

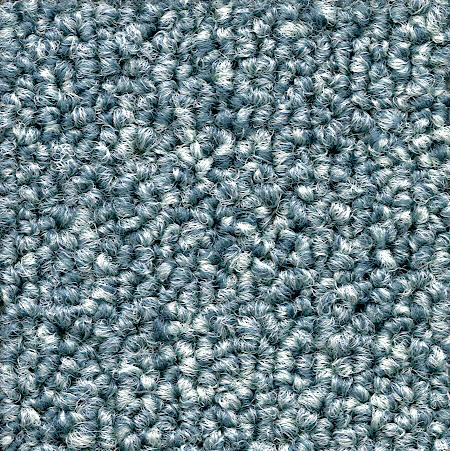

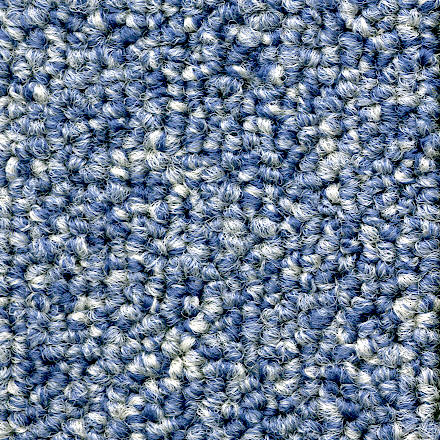

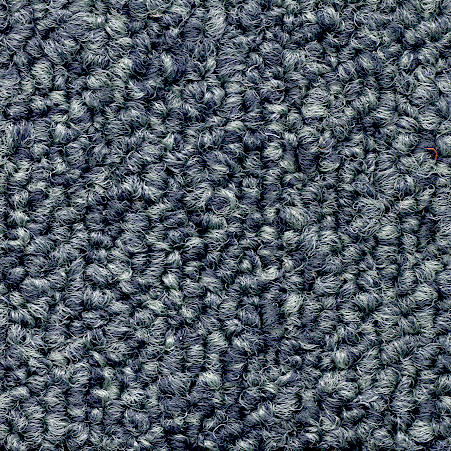

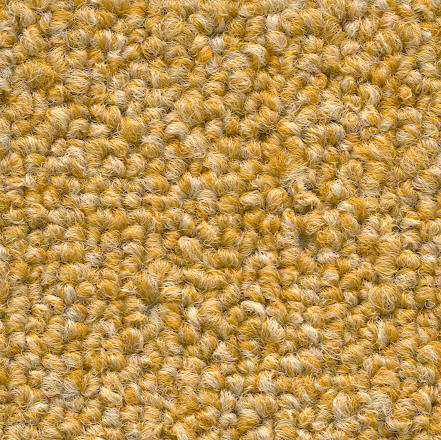

in twenty stain resistant deep-dyed (solution dyed) colors for
the commercial environment.
Please Note the special properties of Antron®
Excel SC: Solution Dyed; Long-lasting color fastness; Teflon
protection against soiling; anti-microbial; Lifetime static
protection.
| Colorfastness |
|
| to light (ISO
105 B 02) |
min
7 |
| to water (ISO
105 E 01) |
min
4 |
| to
rubbing (ISO 105-X12) |
dry |
min 4 |
| wet |
min 4 |
| to shampoo (BS
1006: UK-TB) |
min
4 |
| Flammability
Tests |
|
| Hot metal nut
(BS 4790/5287) |
low
radius of effects of ignition. |
| Radiant
panel |
(ASTM E648) |
Cat. 1 (>0.5
W/cm2) |
| (DIN 4102 part
14) |
B1 |
|
 |
| Maintenance
& Installation |
Static Electric Discharge Control Carpet Squares
can be installed
using the manufacturer's standard installation instructions.
Regular vacuum cleaning and spot removal, within a comprehensive
maintenance plan, is the basis for retaining a high appearance
level. |
| Guarantee |
Static Electric Discharge Control Carpet Squares
are guaranteed
by the manufacturer for 5 years, provided they are professionally
installed in accordance with the installation instructions and
that guarantee stipulations are respected. |
|
| |
| Warning:
Static Electric Discharge Control Carpet
Squares
should only be used as floor covering. |
| Back
to Floor Covering Index Page
|
| |
| |
|
Application examples: Communications
areas, computer centers, radio stations, television transmission stations,
electronic component assembly areas.. |
|
| Static
Electric Discharge Control Carpet Squares |
| Price
and Availability |
| Price: |
$43.75 per Square
Yard |
| Packed: |
20 tiles per box (6
SYs per Box) |
| Availability: |
Stocked Colors: 4
to 5 weeks after receipt of order. |
| Out-of-stock Colors:
6 to 10 weeks after receipt of order. |
| Prices are exclusive
of shipping which will be determined based on destination and
quantity required. |
| Static
Electric Discharge Control Carpet Squares |
| Specifications |
| Construction |
Tufted low level loop. |
| Guage |
1/10 inch |
| Stitch
Rate |
44 +/- 1 per cm |
| Tuft Density |
173,000 +/- 2.5% |
| Pile Yarn |
100% Polyamide (DuPont Antron Excel SC) |
| Pile Weight |
600 g/m2 +/-3% (18 oz/SY) |
| Pile Thickness |
3.5 mm |
| Backing |
Polyscan® Computer, Glas Polyver®, a conductive
modified bitumen incorporating glass fiber reinforcement with
PP/PES carrier |
| Total
Weight |
4600
g/m2 =/- 5% |
| Thickness |
6.8 mm
=/- 0.5 mm |
| Tile Size |
50x50 cm
(19.69"x19.69" or 2.69 SF par tile) |
| Tiles per Box |
20 |
| Performance |
| Category of Use (BS
7131) |
Class 4
Heavy Contract |
| Caster chair test: |
2.9 (DIN
54324) |
| Static Loading: |
min 90%
recovery after 24 hours (BS 4939) |
| Dimensional Stability
(EM 986) |
Max. -0.15%
+/- 0.05% |
| Static
Electricity |
| Stroll Test (ISO/TR
6356) |
<2kV
at 25% RH and 23oC |
| Acoustic
Behavior |
| Impact sound insulation
(ISO 140-8) |
36 db -
1000 Hz (^Lw: 27 db) |
| Sound Absorption
(ISO 354) |
| Frequency (Hz) |
250 |
1000 |
2000 |
4000 |
| Absorption coefficient |
0.03 |
0.24 |
0.31 |
0.39 |
| N.R.C. (250-2000 Hz) |
0.16 |
. |
. |
. |
|
| |
| |
| |
| |
| |
