| Product Data |
Product
|
Salamanca Rubber Flooring vulcanized rubber compound 913 with environmentally compatible color pigments that are free of toxic heavy metals like lead, cadmium or mercury. |
| Description |
Material Dimensions: 39.37 feet x 48 inches (15 m x 1.22 m)
Thickness: 0.12 inches (3.0 mm)
Dimensional Stability: Meets requirements

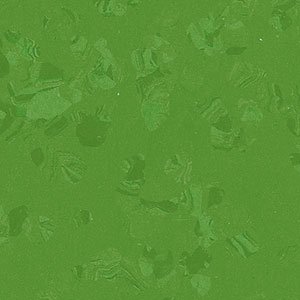

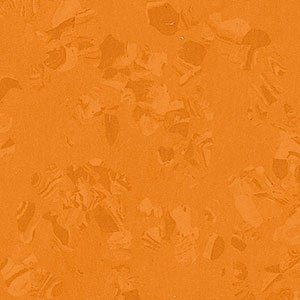

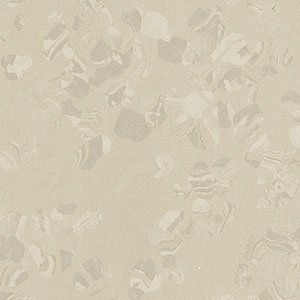

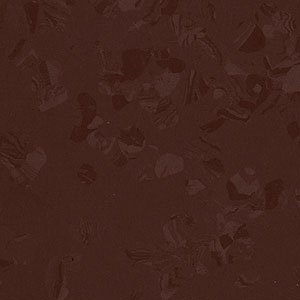

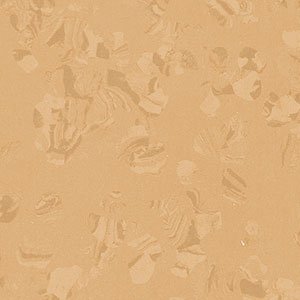

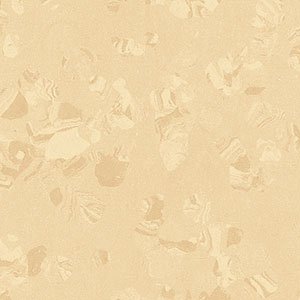

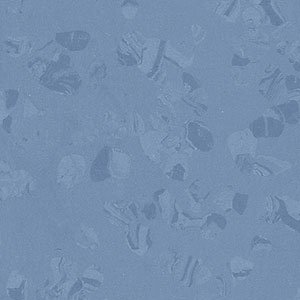

Composition: Homogeneous rubber compound with a random scattered design

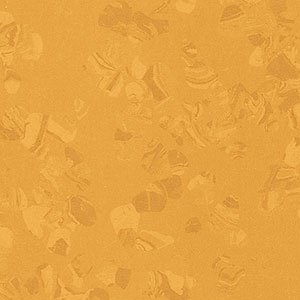

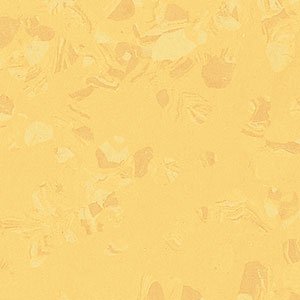

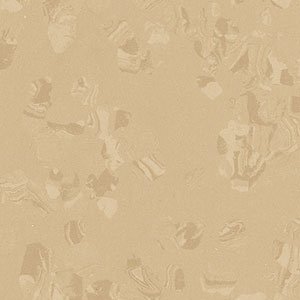

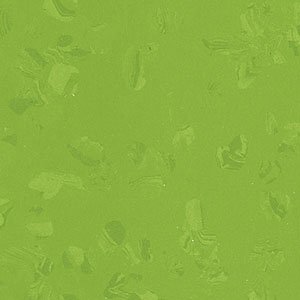

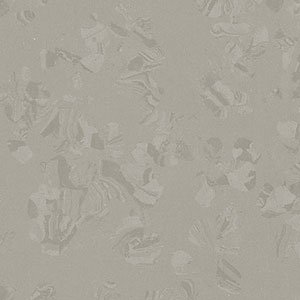

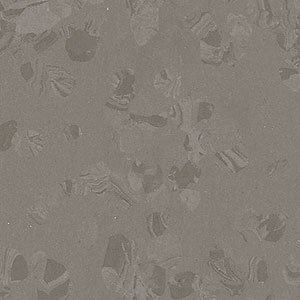

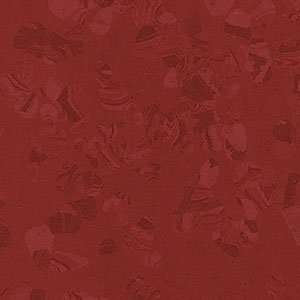

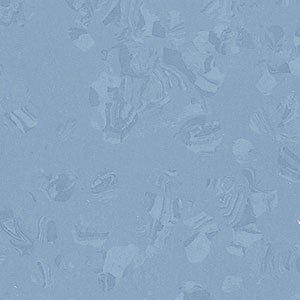

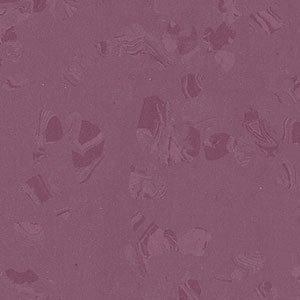

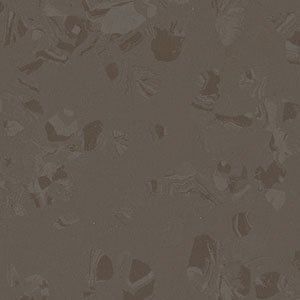

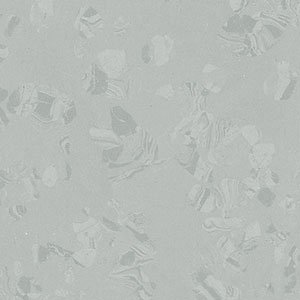

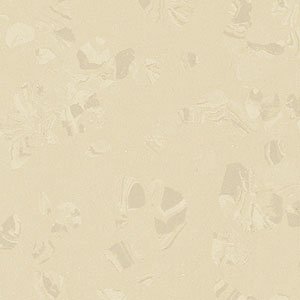

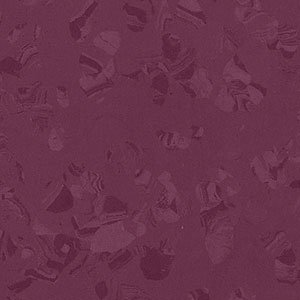

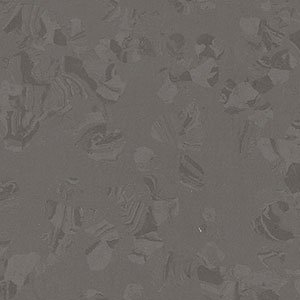

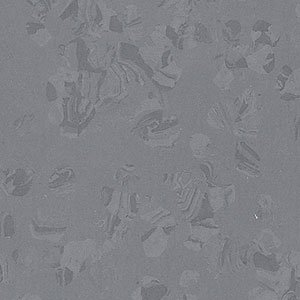

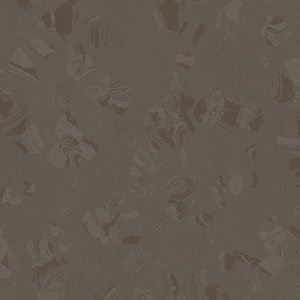

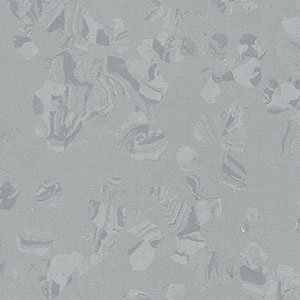

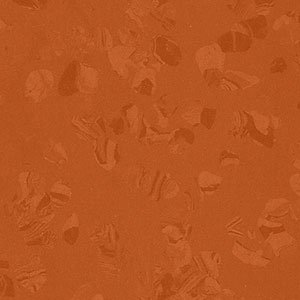

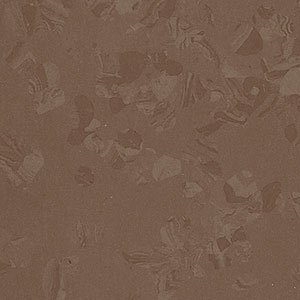

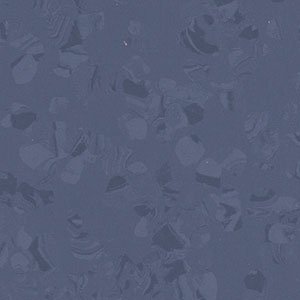

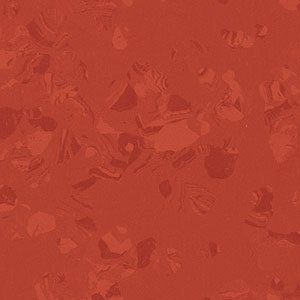

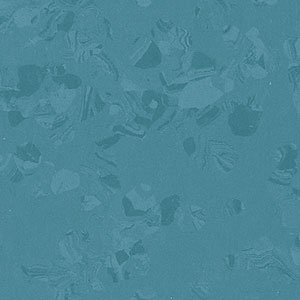

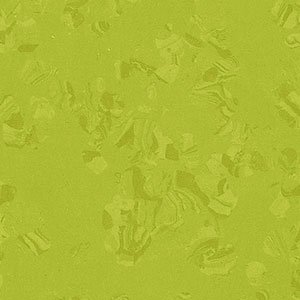

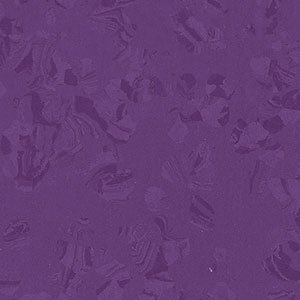

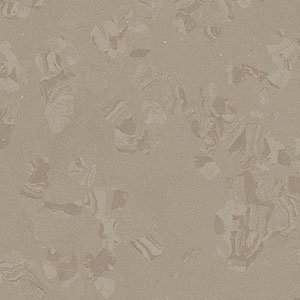

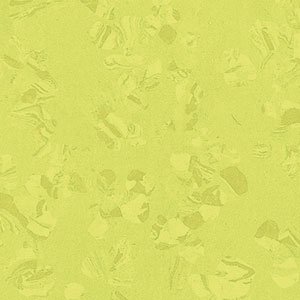

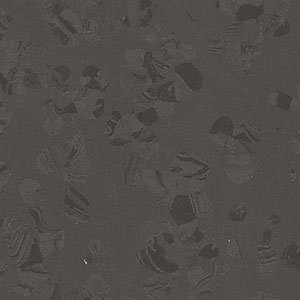

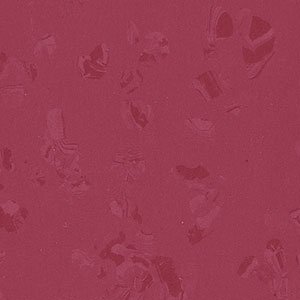

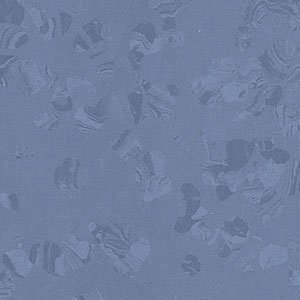

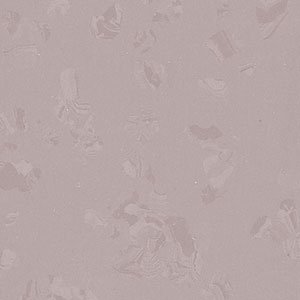

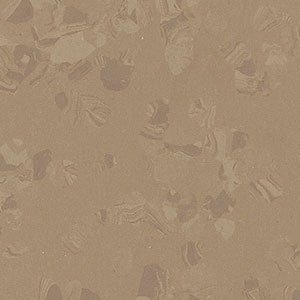

Colors: 38 Standard
Surface: Smooth |
| Technical Data |
Static Load Limit
|
ASTM F970, Residual compression of 0.003” with 800 lbs. achieved, ≤ 0.005”
with 250 lbs. is required
|
Rolling Load Limit
|
≤ 550 lbs. /sq. inch, with no forklift traffic
|
Slip Resistance
|
ASTM D2047 Static coefficient of friction, Neolite dry 0.92 Neolite wet 0.91
achieved, ≥ 0.5 is required (not recommended for ramps)
|
Flammability
|
ASTM E648; NFPA 253; NBSIR 75 950, 1.03 achieved, Class 1, ≥ 0.45
watts/sq. cm is required
|
Smoke Density
|
ASTM E662; NFPA 256; NBS, 376 (flaming) and 256 (non-flaming) achieved, <
450 is required
|
Bacteria Resistance
|
ASTM E2180 and ASTM G21, resistant to bacteria, fungi, and micro-organism
activity
|
Sound Absorption
|
ASTM E2179;ISO 140, ∆ IIC 14, Lw10dB (compare only ∆ values)
|
Hardness
|
ASTM D2240, Shore type “A”, 92 achieved, ≥ 85 is required |
CAN/ULC-S102.2
|
Surface Burning, FSC1 of 125 and SD of 370
|
| Environmental Attributes |
Transparency
|
Environmental Product Declarations (EPD), Health Product Declarations (HPD)
and Cradle (C2C) documentation is available |
Manufactured Without
|
PVC (polyvinyl chloride);
Plasticizers (phthalates);
Halogens (chlorine) |
Production Plant Certifications
|
ISO 9001:2000
ISO 14001 |
VOC Emissions
|
GREENGUARD Gold Certified for Low VOC Emissions
CA 01350 Compliant |
| Installation |
Site Conditions
|
The installation area must be fully enclosed, weather tight, and climate controlled between 63°F and 75°F and 40% to 60% ambient relative humidity (RH) for at least 48 hours prior, during and 72 hours after installation. |
Adhesive
|
Absorptive substrates: use Spotlight AC 100 or Spotlight dryfix 750 adhesives
Non-absorptive substrates: use Spotlight dryfix 750 adhesive
|
Unique Characteristics
|
Welding not required
Recommended for use in hospital operating rooms when using Spotlight dryfix 750
(welding would be required) |
| For complete installation instructions, please refer to the Spotlight Installation Guide. |
| |
Care and Cleaning
|
Refer to the Spotlight Maintenance Guides.
|
Wheel Types
|
No metal or hard plastic wheels, the shape of the contact surface of wheels must be flat with round edges. The
shore hardness must be ≤ 90 type A. |
Storage
|
Spotlight Rubber Flooring can be stored within a temperature range of -5˚F (-21˚C) to 120˚F (49˚C) under the following conditions: Pallets shall remain intact, undamaged, not be stacked, be in a permanently dry environment, and with
no direct sunlight. However, all adhesives and cold weld must remain at room temperature without freezing. |
Warranty
|
Limited 5-year warranty. See Spotlight Rubber Flooring Limited Warranty. |
| |
.jpg){kind=small}

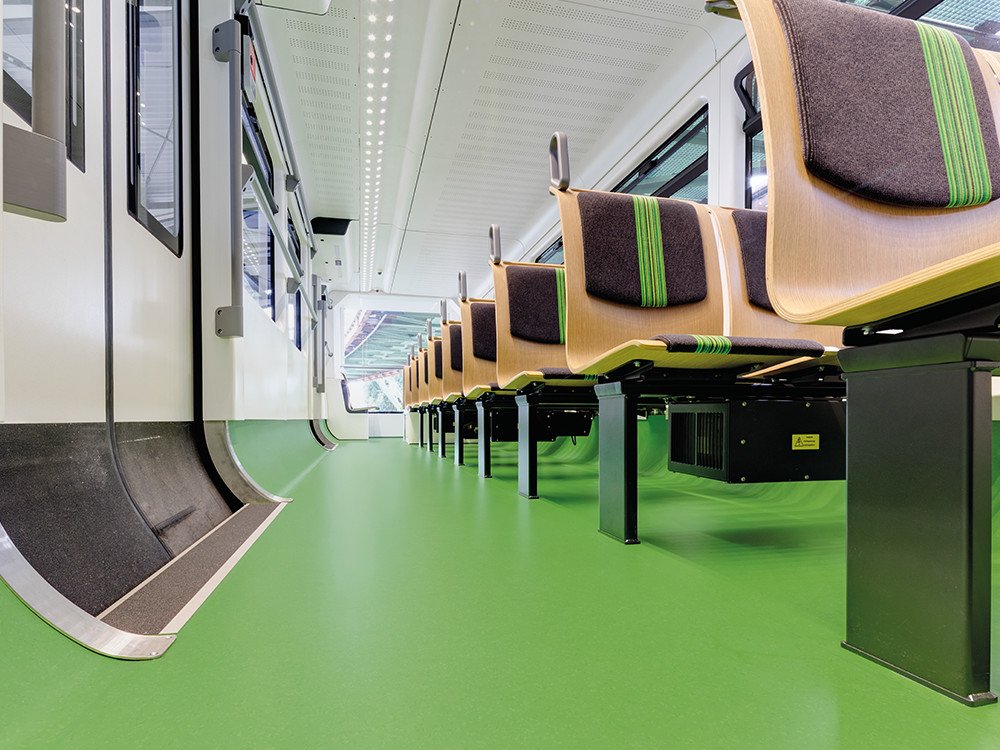

Good for heavy traffic
