Steel
Pan : Generally installed full stringer to stringer length , less
1/8 " (3.05 mm) clearance. |
|
|
 |
|

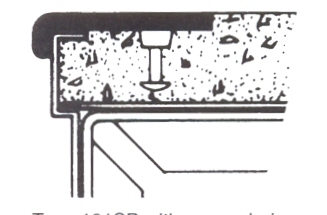

| Type 101SP typical installation. |
|
Depth |
Cast
Aluminum |
Depth |
Cast
Aluminum |
3"
|
P/N
9833-101-0103 |
3" |
P/N
9833-100-0203 |
|
4"
|
P/N
9833-101-0104 |
4" |
P/N
9833-100-0204 |
| 6" |
P/N
9833-101-0106 |
6" |
P/N
9833-100-0206 |
|
Custom Depths require pattern with order. |
Custom Depths require pattern with order. |
|
|
|
|
. |
| Depth |
Cast Aluminum |
|
|
|
3"
|
P/N
9833-100-0303 |
|
|
|
| 4"
|
P/N
9833-100-0304 |
|
|
|
| 6" |
P/N
9833-100-0306 |
|
|
|
| Pricing: Due to the specialty
nature of this material, pricing is by quotation according to lengths,
coverage of landings and accessories required.
Price quotes are furnished at no charge and with no obligation.
|
| Maximum Length versus Depth - To
be used as a guide when developing a specification or bid request.
Platform recommended piece size. Consult The Mat King for details. |
| Type Number |
Metal |
Depth |
Thickness |
Structural
Max Length |
Non-Structural
Max Length |
Diagram |
| 100 |
Cast
Aluminum |
1.5" to 6" |
5/16"
to 3/8" |
N/A |
8'-6" |
Type
100
Architectural
Specifications
|
| |
|
6" to 12" |
5/16"
to 5/8" |
N/A |
6' |
| 101 |
Cast
Aluminum |
1.5" to 6" |
5/16"
to 3/8" |
N/A |
8'-6" |
 |
| |
|
6" to 12" |
5/16"
to 5/8" |
N/A |
6' |
| 101SP |
Cast
Aluminum |
1.5" to 6" |
5/16"
to 3/8" |
N/A |
8'-6" |
 |
| |
|
6" to 12" |
5/16"
to 5/8" |
N/A |
6' |
| 102 |
Cast
Aluminum |
1.5" to 6" |
5/16"
to 3/8" |
N/A |
8'-6" |
 |
| |
|
6" to 12" |
5/16"
to 5/8" |
N/A |
6' |
| 103 |
Cast
Aluminum |
1.5" to 6" |
5/16"
to 3/8" |
N/A |
8'-6" |
 |
| |
|
6" to 12" |
5/16"
to 5/8" |
N/A |
6' |
| 104 |
Cast
Aluminum |
1.5" to 6" |
5/16"
to 3/8" |
N/A |
8'-6" |
 |
| |
|
6" to 12" |
5/16"
to 5/8" |
N/A |
6' |
| 110 |
Cast
Aluminum |
1.5" to 6" |
5/16"
to 3/8" |
N/A |
8'-6" |
 |
| |
|
6" to 12" |
5/16"
to 5/8" |
N/A |
6' |
| 116 |
Cast
Aluminum |
1.5" to 6" |
5/16"
to 3/8" |
N/A |
8'-6" |
 |
| |
|
6" to 12" |
5/16"
to 5/8" |
N/A |
6' |
| 116A |
Cast
Aluminum |
1.5" to 6" |
5/16"
to 3/8" |
N/A |
8'-6" |
 |
| |
|
6" to 12" |
5/16"
to 5/8" |
N/A |
6' |
| 120 |
Cast
Aluminum |
1.5" to 6" |
5/16"
to 3/8" |
N/A |
8'-6" |
 |
| |
|
6" to 12" |
5/16"
to 5/8" |
N/A |
6' |
| 105 |
Cast
Aluminum |
6" to 12" |
1/2"
to 5/8" |
5' |
6' |
 |
| 105-A |
Cast Aluminum |
1-1/8" Slanted |
5/16"
to 3/8" |
N/A |
8'-6" |
 |
| |
|
6" to 12" |
5/16"
to 5/8" |
5' |
6' |
| 105-B |
Cast Aluminum |
1-1/8" Slanted |
5/16"
to 3/8" |
N/A |
8'-6" |
 |
| |
|
6" to 12" |
5/16"
to 5/8" |
5' |
6' |
| |
|
|
|
|
|
|
| 106 |
Cast
Aluminum |
4"
to 6" |
1/2"
to 5/8" |
N/A |
8'-6" |
 |
| |
|
6" to 12" |
1/2"
to 5/8" |
5' |
6' |
| 107 |
Cast Aluminum |
10" to 12" |
1/2" to 5/8" |
5' |
6' |
 |
| 107-A |
Cast
Aluminum |
10"
to 12" |
1/2"
to 5/8" |
5' |
6' |
 |
117 |
Cast
Aluminum |
4" to 6" |
1/2"
to 5/8" |
N/A |
8'-6" |
 |
| |
|
6" to 12" |
1/2"
to 5/8" |
5' |
6' |
117-A |
Cast Aluminum |
4"
to 6" |
1/2"
to 5/8" |
N/A |
8'-6" |
 |
| |
|
6"
to 12" |
1/2"
to 5/8" |
5' |
6' |
150 |
Cast Aluminum |
1.5"
to 1.5" |
3/8" |
N/A |
6' |
 |
| |
|
|
|
|
|
250 |
Cast
Aluminum |
2.5"
to 2.5" |
1/2" |
N/A |
6' |
|
| |
|
| |
| Price Quotation Requests Requirements:
|
| 1. Quantity of pieces required of each item. |
| 2. Size of each item, i.e. width (front to back) and length
of the tread. |
| 3. Type of Tread, i.e. Product Number and Product name.
|
| 4. Thickness of tread. |
| 5. Type of Application, i.e. Poured Concrete, Repair, Curb,
Steel Pan, Structural, etc. |
| 6. Type of Anchor. |
| 7. City, State and Zip Code of "Ship To" address
for determination of freight charges. |
| |
| |
|
|
