Up State Aluminum Rail Roll Up Entrance Grates Mat RG-250

Up State Aluminum Rail Roll Up Entrance Mats RG-250
Providing protection for for interior and exterior entrance applications.

Up State Aluminum Rail Roll Up Entrance Mats provide protection for interior and exterior hight-traffic applications.

The Up State Aluminum Rail Roll Up Entrance Mats (RG-250) entrance mats feature a quiet vinyl hinge connecting the aluminum rails to minimize clatter. Perfect for high traffic interior or covered exterior environments, RG-250 is fabricated from at least 70% recycled aluminum, helping to add to LEED credits. With an easy roll back feature that allows for easy cleaning, RG-250 handles rolling loads up to 1,000 pounds. All RG-250 entrance mats feature:

Easy to clean; rolls back 180°

Six different tread insert options for up to 39 combinations of colors and functions

Custom fabrication, including angles, arcs/radii, cutouts

Continuous resilient vinyl cushion

Rolling load test to 1,000 lbs per wheel

Height: 11/16”

Rail Material: Aluminum

Rail Color/Finishes: Mill, Clear Anodized, Medium Bronze Anodized, Black Anodized

Construction: Perforated vinyl hinge

Traffic: High Interior or Covered Exterior

Roll Back Capability: Yes

Deep Pit Availability: No

Tread Insert Options:

Rigid-Back Nylon Carpet (SNC) - 100% solution-dyed nylon carpet fiber.

Aluminum Abrasive (AA) - aluminum oxide tape grit adhered to mill finish aluminum rail.

Bristle Filament (BF) - bristle filament carpet.

Corrugated Aluminum (CA) - corrugated aluminum mill finish.

Maxi-Tuft Carpet (MLW) - maxi-tuft long wear carpet.

Rigid Corrugated Vinyl (RCV) - rigid corrugated vinyl (colorable).

Weight/square foot: 3.8 lbs.

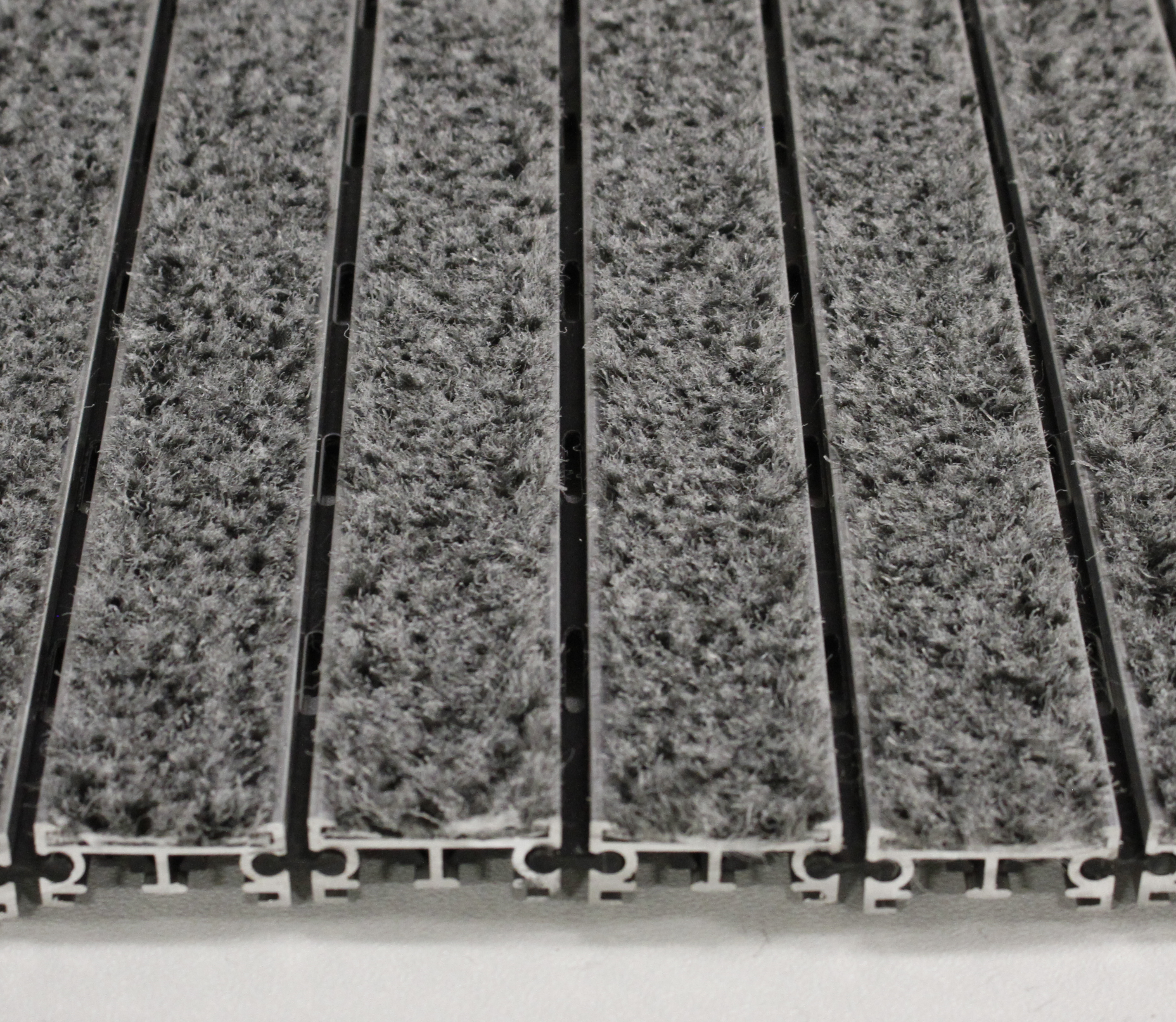

RG-250 a Close Up View

Entrance Matting Systems Color Chart
Aluminum Abrasive Inserts

1 - Black	7 - Terra Cotta	4 - Brown	5 - Gray

Bristle Filament Inserts
			.
7 - Sand	4 - Brown	344 - Teal	.

Corrugated Aluminum Insert
	.	.	.
405 - Mill Finish	.	.	.


Maxi-Tuff: Long Wear Inserts

536 - Black Granite	537 - Dark Gray	592 - Chrome	18 - Sand


538 - Navy	596 - Winter Slate	539 - Denim	531 - Emerald


Rigid Corrugated Vinyl Inserts

374 Ash Brown	7 - Terra Cotta	289 - Pearl Gray	1 - Black

	.	.	.
385 - Beige Desert	.	.	.

Standard Nylon Carpet Inserts

512 Desert Plum	595 - Truffle	513 - Terra Clay	514 - British Green

	.	.	.
596 - Winter Slate	.	.	.



Up State Aluminum Rail Entrance Grate RG-250
Product Number: 3185-501-0250
Available Finishes: Mill finish, Clear anodized, Medium Bronze anodized and Black anodized
Weight: 2.3 lbs / SF depending upon insert selection
Deflection:	-1/16" at 700 lbs.
	-1/8" at 1,800 lbs.
Rolling load: 1,000 lbs
Frame Selection: TBD
Available with Level Bed frame system. Recommended specifically for northern climates where maximum moisture control is required. Custom fabrication available, including angles, arcs, radii, cutouts and logos. Tread inserts available in 42 combinations of colors and functional materials. Continuous resilient dual durometer bottom cushion provides the comfortable flex of soft vinyl and the dimentional stability of rigid vinyl. Easy grate removal to access the well for periodic cleaninhg.
Architectural Specifications availabkle on request.
