Up State Entrance Mat Frame Selection Guide
Protect fine floring and present a
finished appearance to entrance mats. |
 |
 |
Lifetime
Fitness, Novi, Michigan |
|
| |
|

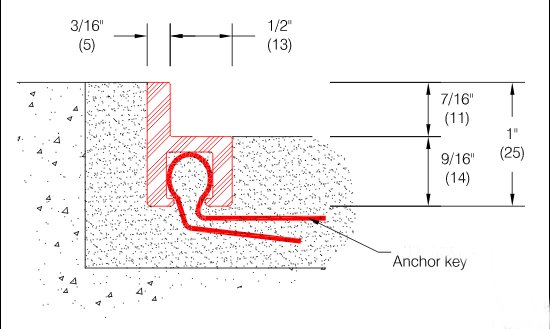

Recessed
Mat Frame for Poured-in-Place Application |
| Product
Number: 3183-500-0001 |
Product
Number: 3183-600-0001 |
| Available

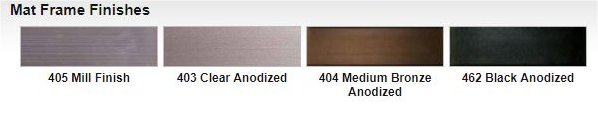

Finishes: Mill, Clear Anodized, Medium Bronze Anodized and Black Anodized. |
Available
Finishes: Solid Architectural Bronze |
| Weight:
0.4 lbs/LF |
Weight:
1.0 lbs/LF |
| Maximum
Length: 16'-6" |
Maximum
Length: 12'-4" |
| Anchoring:
Anchor keys and corner pins provided. |
Anchoring:
Anchor keys and corner pins provided. |
| Use
with all 3/8" to 5/8" thick mats. Frame is custom
constructed for permanent installations. Frames ensure a
well finished appearance for recessed entrances and protect
edges of fine flooring and floor covering from trauma that
often results in premature cracking, chipping or fraying. |
| Features: Use
for 3/8 inch through 5/8 inch thick mats. Made of extruded aluminum alloy 6063-T5. Stock length is 16 feet 6 inches. Weight is 0.4 lbs per linear foot. |
|
|
Recessed

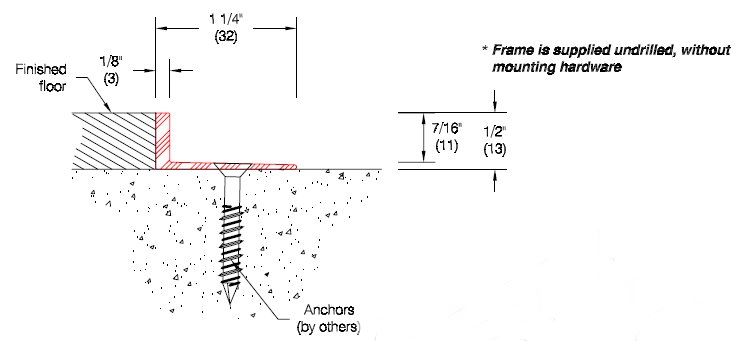

Mat Frame for Retrofit Application |
| Product
Number: 3183-300-0001 |
| Available
Finishes: Mill. |
| Weight:
0.15 lbs/LF |
| Maximum
Length: 12'-4" |
| Anchoring:
Flat head screws by others. |
| Use
with all 3/8" to 5/8" thick mats such as Vinyl
Backed Cocoa Mats. Frame is custom constructed for permanent
installations. Frames ensure a well finished appearance
for ecessed entrances and protect edges of fine flooring
and floor covering from trauma that often results in premature
cracking, chipping or fraying. |
| |
|
|

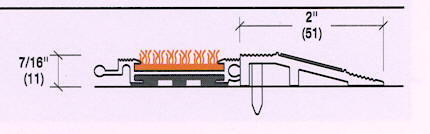

Beveled
Edge Surface Mat Frame |
| Product
Number: 3185-500-0001 |
| Available
Finishes: Clear Anodized |
| Weight:
1.0 lbs/LF |
| Maximum
Length: 12'-5" |
| Anchoring:
Flat head screws by others. |
| Use
with all 3/8" to 5/8" thick mats. Frame is custom
constructed for permanent installations. Frames ensure
a well finished appearance for ecessed entrances and protect
edges of fine flooring and floor covering from trauma
that often results in premature cracking, chipping or
fraying. |
| |
|
| Specifications: Click HERE for Architectural
Specifications.
Price are exclusive of Shipping
and applicable Sales tax: Please provide City, State and Zip Code of "Ship To"
address for determination of freight charges. Applicable Sales
Tax will be added to final Invoice. Back to Up State Architectural Products Index |
| |
| |
| |
| |
