Watershed
Stainless Steel Grating - 3/8" Thick |
|
||||||||||||||

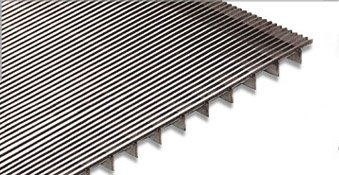

Watershed Stainless Steel Grating - 3/8" Thick - is designed for shallow, level bed recessed applications for new construction or renovation. Its self-cleaning design makes regular maintenance effortless. The wires are evenly spaced providing safe support for high heels, canes, wheelchairs, crutches, and other walking aids. Custom designs are available to fit almost any application. The 59% air flow makes this grating a great for option for registers.
|
|||||||||||||||
Applications: Entrance Mats: Level Bed Applications, Air Grilles, Light Diffusers, Revolving Doors, Ceiling and WallL Applications. |
|||||||||||||||
|
|||||||||||||||
Specifications: Construction:

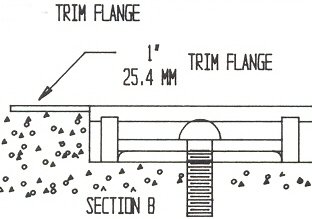

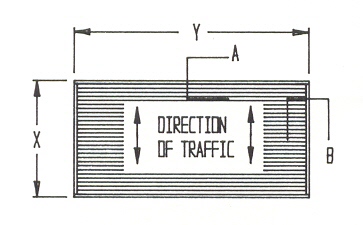

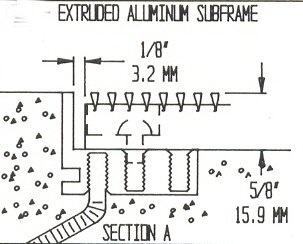

Support Rods Type 304 stainless steel .070" x .375", spaced 1" on center. Wire Spacing Standard slot openings of .125". Assembly Each juncture of surface wires to support rods shall have electric resistance welded joints. Hidden or visual locking devices are provided to fasten grating. Framing Type 304 Stainless Steel (or 6063-T5 Extruded Aluminum). Warranty: 5 years. For details click HERE. Specification Drawing: Please click HERE.
|
|||||||||||||||
|
|||||||||||||||
|
|||||||||||||||
|
|||||||||||||||
