Stainless Steel Grating - 1-1/8" Thick |
|
|||||||||||||
Watershed Stainless Steel Grating - 1-1/8" Thick - is designed for deep, level bed recessed applications for new construction or renovation. Its self-cleaning design makes regular maintenance effortless. The wires are evenly spaced providing safe support for high heels, canes, wheelchairs, crutches, and other walking aids. Custom designs are available to fit almost any application. The 59% air flow makes this grating a great for option for registers.
|
|||||||||||||||

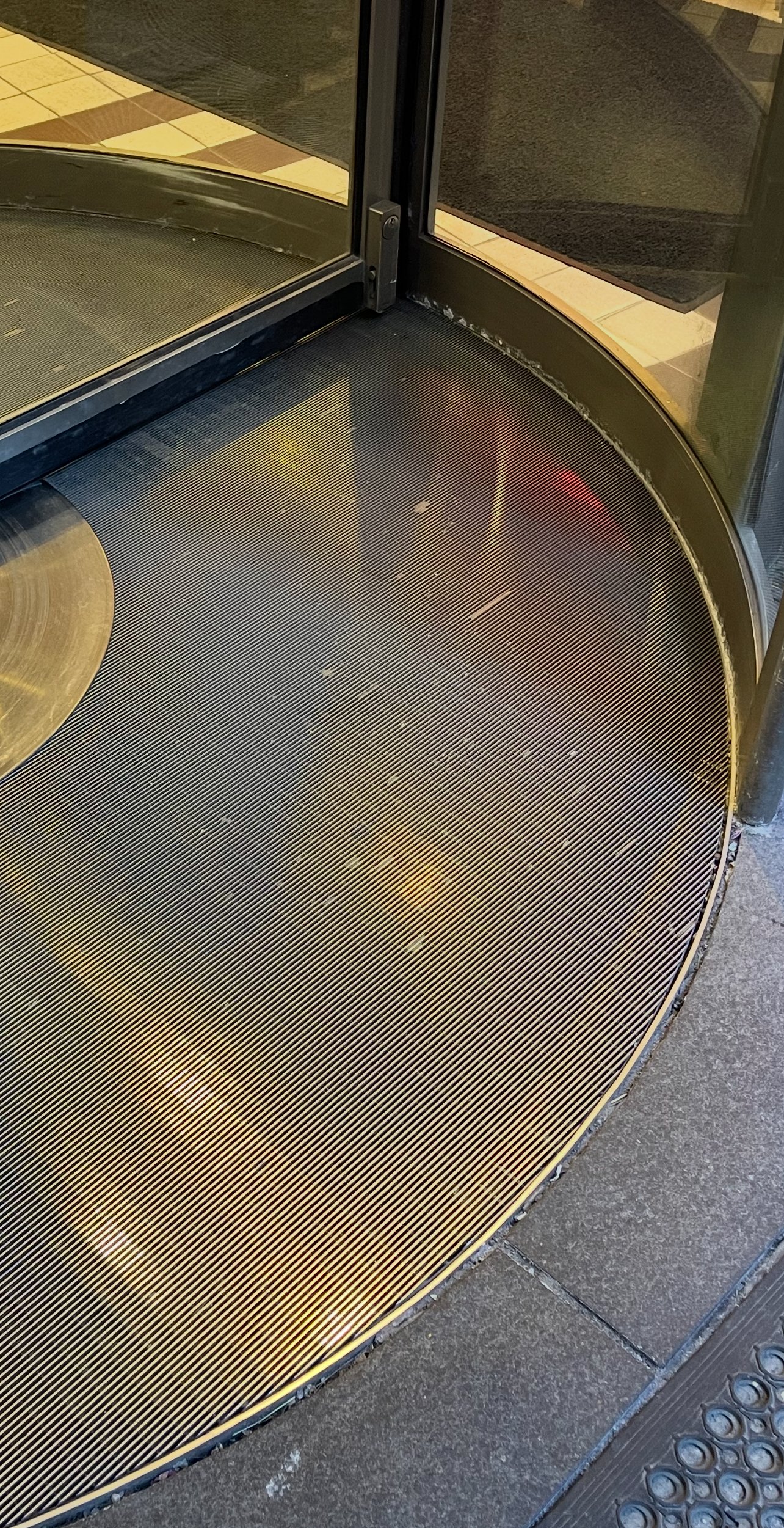

Applications: Entrance Mats: Level Bed Applications, Air Grilles, Light Diffusers, Revolving Doors, Ceiling and WallL Applications. |
|||||||||||||||
|
|
|||||||||||||||
| Specifications: Construction:
Support Rods Type 304 stainless steel .070" x 1", spaced 1" on center. Wire Spacing Standard slot openings of .125". Air Flow 59.9% - great for registers. Water Flow Computation: Q = 0.0108A ✓ d [Please Note: Q = Flow (CFS, cubic feet per second); A = Open area in grate (inches ²); d = Depth of water over grate; Coefficient = 0.0108] To calculate the gallons per minute per square foot the following details are needed: Factor A will be equal to 144 in² x 59.9% = > 86.256” per square foot. Once the depth of factor “d”, it can be inserted into the formula. Assembly Each juncture of surface wires to support rods shall have electric resistance welded joints. Hidden or visual locking devices are provided to fasten grating. Framing Type 304 Stainless Steel (or 6063-T5 Extruded Aluminum). Warranty: 5 years. For details click HERE.
|
|||||||||||||||
|
|||||||||||||||
|
|||||||||||||||
| |
|||||||||||||||
|
|||||||||||||||
