3M™ Safety-Walk™ Slip-Resistant Conformable Tapes and Treads - 500 Series
For uneven surfaces.
3M Logo



3M™ Safety-Walk™ Slip-Resistant Conformable Tapes and Treads - 500 Series - are available in Black #510 and Safety Yellow #530 in a variety of sizes to provide slip-resistance on irregular or contoured surfaces in light to heavy shoe-traffic areas.

The aluminum foil backing conforms to corners and irregular surfaces.

Aggressive high performance adhesive forms an excellent bond to hold securely which makes for ease in application and for durability.

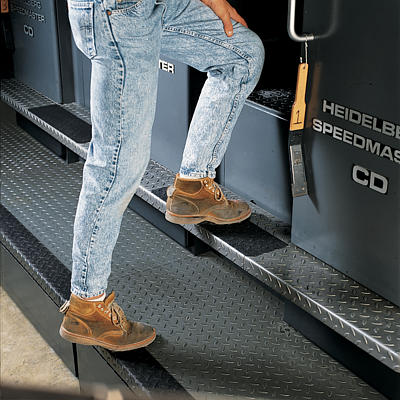

Uses: stairs, ladders, loading ramps, platforms, irregular surfaces like diamond plate tread metal, over exposed screw heads, lawn mowers, riveted equipment, machinery and vehicles. Can be used over textured surfaces and textures porous surfaces if primed.

Treads: 5-1/2" x 5-1/2" (139mm x 139mm) and 6" x 24" (152mm x 609mm)

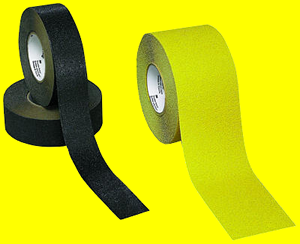

Tapes: A variety of widths from 2 inch to 24 inches wide x 60 feet long (50mm to 609mm wide x 18.2m long).

Custom shapes and sizes also available. Special adhesives are also available for powder-coated surfaces.

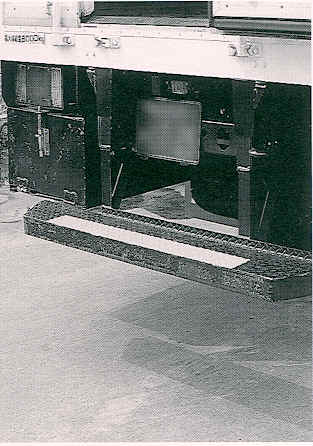

On Equipment & Vehicles

Typical Properties Average Measured Values
Applied Thickness .036 in. (.914 mm)
Applied Weight 2.8 oz. /Sq. Ft. (854 g/m2)
Minimum Application Temperature 40° F (4° C)
Maximum Service Temperature 175° F (79° C)
Fire Retardancy:
NFPA 101 Type I
GSA Classification Class A
FAA 25.855-F-1 Passes
Coefficient of Friction:
Mil-D-1795 E Meets or exceeds
Chemical Resistance Resists most chemicals



Color Selection
3M Nomad Carpet Mat 4000 - Charcoal 3M Nomad Carpet Mat 4000 - Brown
Black Safety Yellow



Technical Specifications: Please click HERE for Technical Specifications.





3M™ Safety-Walk™ Slip-Resistant Coarse Tapes and Treads - 700 Series
Product Number Summary Description Detailed Description Price Contact The Mat King to Order
8353-201-0260 3M-510/2 in x 60 ft/Tape/Black 3M Safety-Walk Conformable Slip-Resistant Tread Black 2 in x 60 ft: 2/cs 1 yr warranty/4.5#/0.187 Cube(rack#: 500-48011-19280-7) $166.30
8353-201-0460 3M-510/4 in x 60 ft/Tape/Black 3M Safety-Walk Conformable Slip-Resistant Tread Black 4 in x 60 ft: 1/cs 1 yr warranty/4.25#/0.187 Cube(rack#: 500-48011-19281-4) $166.22
8353-201-0684 3M-510/6 in x 24 in/Tape/Black

3M Safety-Walk Conformable Slip-Resistant Tread Black 6 in x 24 in: 50/cs 1 yr warranty/10#/0.286 Cube(rack#: 500-48011-19279-1)

 $431.58
8353-201-0660 3M-510/6 in x 60 ft/Tape/Black

3M Safety-Walk Conformable Slip-Resistant Tread Black 6 in x 60 ft: 1/cs 1 yr warranty/7.055#/0.234 Cube(rack#: 500-48011-19282-1)

 $249.28
8353-201-1260 3M-510/12in x 60 ft/Tape/Black 3M Safety-Walk Conformable Slip-Resistant Tread Black 12in x 60 ft: 1/cs 1 yr warranty/10.3#/0.441 Cube(rack#: 500-48011-19283-8) $479.40
8353-201-1860 3M-510/18in x 60 ft/Tape/Black 3M Safety-Walk Conformable Slip-Resistant Tread Black 18in x 60 ft: 1/cs 1 yr warranty/16.4#/0.648 Cube(rack#: 500-48011-19284-5) $719.20
8353-201-8460 3M-510/24in x 60 ft/Tape/Black

3M Safety-Walk Conformable Slip-Resistant Tread Black 24in x 60 ft: 1/cs 1 yr warranty/21.7#/0.836 Cube(rack#: 500-48011-19285-2)

 $959.08
8353-202-0260 3M-530/2 in x 60 ft/Tape/Yellow

3M Safety-Walk Conformable Slip-Resistant Tread Yellow 2in x 60 ft: 2/cs 1 yr warranty/3.5#/0.229 Cube(rack#: 500-48011-19288-3)

 $166.30
8353-202-0460 3M-530/4 in x 60 ft/Tape/Yellow 3M Safety-Walk Conformable Slip-Resistant Tread Yellow 4in x 60 ft: 1/cs 1 yr warranty/3.5#/0.229 Cube(rack#: 500-48011-19289-0) $166.22
8353-202-0660 3M-530/6 in x 60 ft/Tape/Yellow 3M Safety-Walk Conformable Slip-Resistant Tread Yellow 6in x 60 ft: 1/cs 1 yr warranty/5.2#/0.286 Cube(rack#: 500-48011-19290-6) $249.28
Prices are exclusive of shipping. Provide sizes and quantities of mats and rolls desired along with destination city, state and Zip Code for custom quotations.

Transportation: Prices are F.O.B. point of shipment with transportation charges prepaid via lowest cost routing destination within the continental limits of the United States. If customer chooses a different freight company, customer incures the difference in freight charges. Prices for Alaska, Hawaii and Puerto Rico available on request.

Orders of $3,000.00 or greater will be shipped freight free to anywhere within the continental limits of the United States. Orders of less than $3,000.00 will incure a 20% handling charge.

Shipment to NY, NJ or CT will have State Sales Tax added to the final invoice.

Warranty and Limited Remedy: Product will be free from defects in material and manufacture. 3M MAKES NO OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. If product is defective, customer's exclusive remedy shall be, at 3M's option, replacement or repair of the 3M product or refund of the purchase price of the 3M product.

Limitation of Liability: 3M nor it's distributor, Geoffrey Drew Marketing, Inc. d/b/a The Mat King, shall not be liable for any losses or damages, whether direct, indirect, special incidental, or consequential regardless of the legal or equitable theory asserted, including contract, negligence, warranty, or strict liability.
