Safe Spot Bonded Rubber
Anti-Static Conductive Modular Comfort Matting
An Adaptable Anti-Fatigue and Electrostatic
Control Matting System |
 |
|
Safe Spot Bonded Rubber Anti-Static Conductive
Modular Comfort Matting combines the superior durability
and ergonomic properties of Safe Spot Interlocking Rubber Electrostatic
Dissipative Mats with the flexibility of multiple widths and
lengths. Area designers and Space Planners can select from over
200 sizes to configure work areas without interlocks. The various

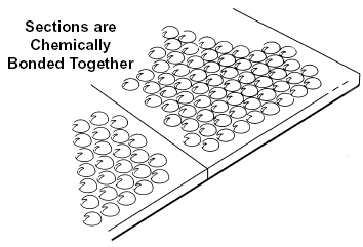

lengths and widths are made by chemically bonding the seams
from both the top and the bottom, creating sections which are
easy to install, providing attractive, durable, ergonomic and
safe ESD protected flooring for any size area. The larger sections
are then able to be connected with other sections to create
very specific floor plans. Once configured, the patented** interlocking
strip is designed to be cut away, leaving a clean, safe, and
finished edge. |
 |
| Safe Spot Bonded
Rubber Anti-Static Conductive Modular Comfort Matting is manufactured
using 100% premium Nitrile butadiene rubber in dissipative and/or
conductive resistance range that are non-humidity dependent and
dimensionally stable. Durable high quality rubber provides superior
heat, chemical and wear resistance. Send floor layout for assistance
in obtaining optimum flooring layout configuration. This material
is sold by the linear foot, in your choice of five widths. Safe
Spot Bonded Rubber Anti-Static Conductive Modular Comfort Matting
exceeds the minimum recommended ESD protective flooring requirements
of ANSI/ESD S20.20 and EIA-625. Suitable for Flooring component
in Flooring - Footwear System when used as the primary grounding
method (<3.5 x 107ohms per ESD STM 97.1) |
| |
| Product Number |
Description |
Weight |
Price/SF |
| 5201-001-1780 |
2' wide in 3' length increments up to
120 feet |
.67#/SF |
$16.00 |
| 5201-001-1781 |
3' wide in 2' length increments up to
120 feet |
.67#/SF |
$16.00 |
| 5201-001-1782 |
4' wide in 3' length increments up to
120 feet |
.67#/SF |
$16.00 |
| 5201-001-1783 |
6' wide in 2' length increments up to
60 feet |
.67#/SF |
$16.00 |
| 5201-001-1784 |
8' wide in 3' length increments up to
60 feet |
.67#/SF |
$16.00 |
|
| Prices
are exclusive of freight which will be quoted on request.
|
| Deliveries
to NY, NJ and CT are subject to applicable Sales Tax, which will
be added to the final Invoice. |
| |
|
| |
| |
|
Electrical Properties:
|
Property |
Test Method |
Value |
|
RTT Resistance: |
ESD-S7.1 |
103
- 105 Ohms |
|
RTG Resistance: |
ESD-S7.1 |
105
- 103 Ohms |
Electrical Properties
obtained by testing to industrial standards by an independent
testing laboratory @ 10 Volts and 50% relative humidity unless
otherwise specified. Complete text of the test report is available
upon request.
Grounding: This material must be properly
grounded for optimum electrical performance. Ask for mat grounding
instructions.
Thickness:
0.50" (12.7mm)
Color:
Black (Note: Color and texture may vary
between lots and mills).
Specifications: Thickness: 0.50" (12.7mm)
Color: Black Texture: Bubble cells (Color and texture may
vary between lots and mills); Grounding: This material must be
properly grounded for optimum electrical performance. Ask for
mat grounding instructions.
Cleaning:
For optimum electrical performance, surface must be cleaned regularly
using an ESD mat cleaner. ESD Systems.com suggests using our Reztore?
Surface & Mat Cleaner Item #16031or Static-Wipes Item #16021.
Do not use cleaners with silicone. Silicone buildup will create
an insulative film on the surface.
Safe Spot Bonded Rubber Anti-Static Conductive
Modular Comfort Matting is a manufactured rubber article and
is excluded from the requirements of M.S.D.S. as defined by OSHA
29 CFR Ch. XVII ?1910.1200.
Disclaimer: All statements, technical data,
and recommendations contained herein are based upon tests we believe
to be reliable. However, the accuracy or completeness thereof
is not guaranteed. The proper and correct applications of products
and data is the responsibility of the user. Statements or recommendations
not contained herein shall have no force or effect unless embodied
in a written agreement signed by authorized offers of
Geoffrey Drew Marketing, Inc.
|
| |
|
| |
| |
| |
| |
