Everyday 1/8" Corrugated Vinyl Matting
A Standard in the Matting Industry

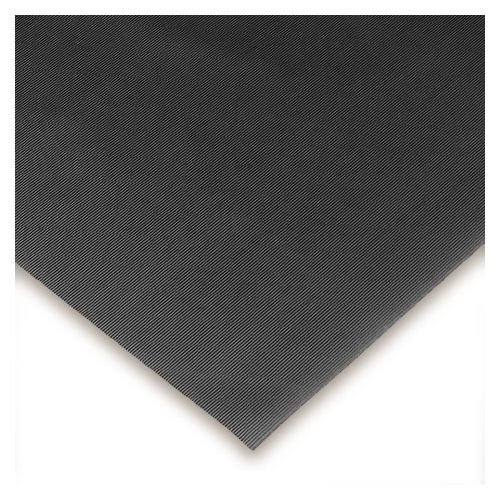

    Everyday 1/8" Corrugated Vinyl Matting - with pointed top surface ribbing to provide maximum traction for people transversing along a walkway. Can be used over hard floors to protect fine finishes and to offer surefotted traction when walking from point "A" to point "B" in a straight line path. This matting can also be trimmed to create anlgular pathways. It is available in one thicknesses which is 1/8" thick. The color is Black and the surface pattern is a "V" shapped goove that also allows the matting to be easily swept by just running a push broom in the direction of the grooves. The grooves run the entire length of the roll. Rolls are available in a variety of widths and lengths. The back of the matting is smooth. However, the matting can be ordered with an optional sponge backing which provides users a certain amount of anti-fatigue value when standing or walking back and forth over the matting for extended periods of time.

Product Specifications:

PRODUCT COMPOSITION	DATA
Style Description:	Standard: Fine Rib; Optional Sponge Backing: Fine Rib/Anti-Fatigue
Surface Aspect:	Black Vinyl
Backing:	Standard - Smooth; Optional - Closed Cell Vinyl Sponge
PRODUCT DIMENSIONS
Thickness	Standard - 1/8”; Optional Sponge Backing 1/2"
Standard Sizes	Full rolls or custom sizes only
Roll Sizes	3' x 105', 4' x 105'
Custom Sizes	3’ and 4’ widths by custom lengths to 105’. Maximum 60’ length for Optional Sponge Backing
Colors	Black Only
PHYSICAL PROPERTIES	MD Spec Initial	MD Spec 70h @ 70ºC Heat Aged
Tensile Strength (kN/M) ASTM D412 Die A	10,340	10,340
Tear Strength (kN/M) ASTM D624 Die C	35	35
Elongation (%) ASTM D412 Die C	225	160
Hardness Shore A ASTM D2240 15s Delay	83 ± / -6
Resistance to Wear ASTM D3389	Maximum Allowable Loss = 76 mm ³
Cold Flex (5h/-29º C/1” mandrel)	Mat must withstand a 180º flex around 25mm mandrel @ -29º C with no evidence ofcracking
FLAMMABILITY PROPERTIES	Requirement <=4

Cleaning and Maintenance:

Dry Areas: Sweep and then mop the Corrugated Vinyl Matting with a neutral cleaner.

Periodic Maintenance: If severely soiled, scrub mat using a brush with a low foaming general purpose cleaner. Flush mat with hot water and allow to dry flat before placing it back into service.

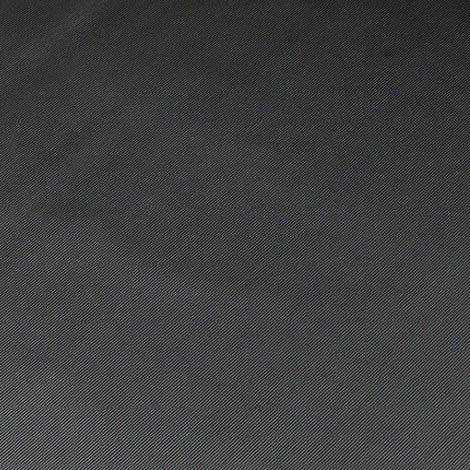

Color: Black

Common Uses: Indoor or outdoor walkways. Please Note: Sponge backing is not recommended for wet areas.

Limited 1-Year Warranty by manufacturer who guarantees its Anti-fatigue Mats against deterioration due to faulty materials or workmanship. This guarantee does not cover damage that could occur from other abuses beyond the general intended application of the product. No other warranty is expressed or implied. Limit of liability from any losses resulting from the use of this product shall be for the purchase price only, and applied in form of credit, excluding any freight charges.
