Century-Long Vinyl Diamond Deckplate Switchboard Matting
Tested to the requirements of MIL-DTL-15562G Type III

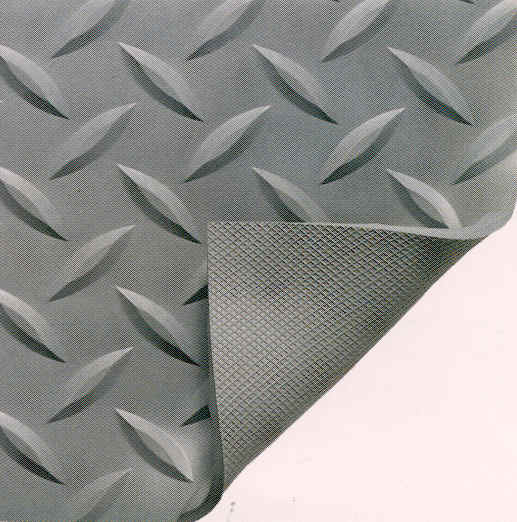

The Mat King Century-Long Diamond Deckplate Switchboard Matting conforms to the requirements of MIL-DTL-15562G Type III. It features a distinctive and effective diamond deckplate surface pattern and made from an exclusive proprietary vinyl formula

There are many industrial and commercial applications that take advantage of the characteristics unique to this specification, which include testing requirements for performance following exposure to sulfuric acid, oxygen bomb aging and ultraviolet light exposure.






Gray

Green

Tested to MIL-DTL-15562G
Type III

(3/16" thick)
Dielectric Test Voltage
30,000 VAC
Proof Tested Over Entire Surface at
15,000 VAC
Recommended Maximum Use Voltage
7,500 VAC
Fire Resistance
Mil Std 1623
Abrasion Resistance, Less than 20 mils lost
ASTM D-1242
Sulfuric Acid Aging, 70% of Tensile
Mil-DTL-15562G
Oxygen Bomb Aging, 80% of Tensile
Mil-DTL-15562G
Light Aging, 65% of Tensile
Mil-DTL-15562G



Application Photos and Links - Product application pictures, customer comments, availability.

Product Number Item Description   Detailed Description Price/LY Price/Roll
9928-303-3625 Century-Long Diamond Deckplate Switchboard Matting-per MIL-M-15562G Type III Vinyl  3/16" x 36"x 25 Yards, Gray
Century-Long Switchboard Matting per MIL-M-11562G Type III Deckplate, Recommended Maximum Use 3,000 VAC, Gray, Knurled Back, 3/16"x36"x 25 yards 250# $/LY (rack#: 39-46-3000-221)
$71.20
$1,780.00
9928-304-3625 Century-Long Diamond Deckplate Switchboard Matting-per MIL-M-15562G Type III Vinyl  3/16" x 36"x 25 Yards, Green
Century-Long Switchboard Matting per MIL-M-11562G Type III Deckplate, Recommended Maximum Use 3,000 VAC, Green, Knurled Back, 3/16"x36"x 25 yards 250# $/LY (rack#: 056-1944-C) $71.20 $1,780.00
Prices are exclusive of Freight. Provide "Ship To" city, state, and Zip Code with quantity of each type of matting required for custom quote via E-mail, Fax, phone or mail.
Sold in Full-Rolls Only
