MIL-T-24634 (SH) Treads, Compound Filled, for Inclined Ladders
NAVSEA Approved for Installation on ALL US Navy Ships.

    US Navy Design for Ships Inclined Ladders - Complies with Specification MIL-T-24634 (SH) Treads, Compound, Filled, for Inclined Ladders. This product is available in two formulations: Type I Full Tread (Ships Ladder Tread) and Type II Cap Tread (Ships Ladder Tread). These treads offer improved safety and a reversible NAVSEA designed durability in 4", 6" and 9" widths for interior or exterior uses and applications.

Design features include a lower life cycle cost, improved wear resistance, slip resistance, damage resistance and weather resistance. Also improved appearance. Available in 4-inch, 6-inch and 9-inch widths. Custom lengths are available and will be quoted on request.

The Mat King also offers a complete line of Anti-slip Safety Products for ships ladders, decks, ramps, showers, galleys, gangways and passageways.

US Navy Design for Ships Inclined Ladders per MIL-T-24634 (SH)

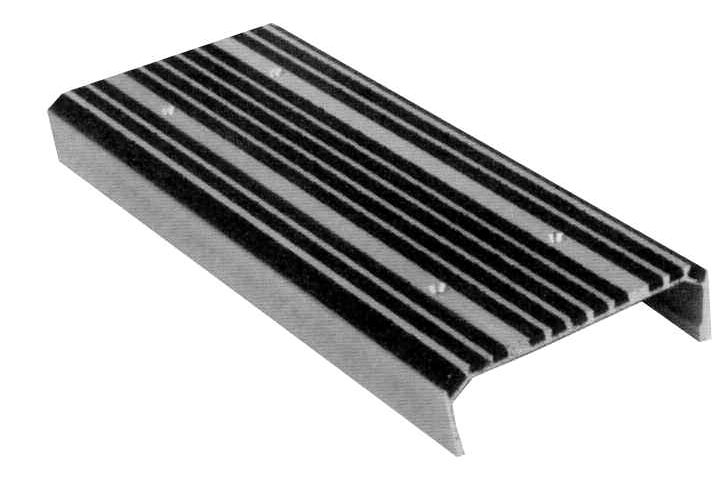

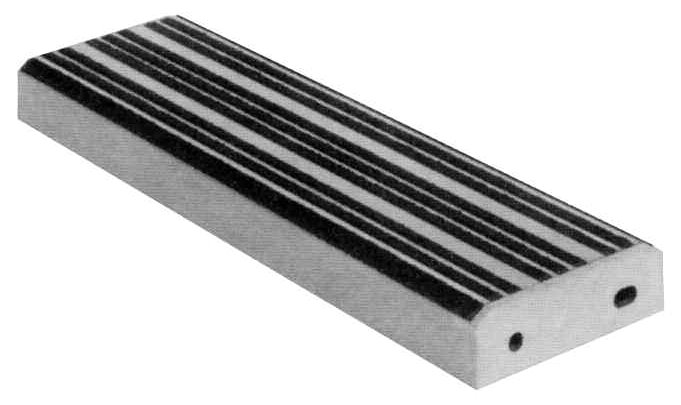

MIL-T-24634 (SH) - Type I Full Treads MIL-T-24634 (SH) - Type II Cap Treads



MIL-T-24634 (SH) - Type I Full Treads & Type II Cap Treads
Style 841 Type I Full Tread 4 inch depth Style 842 Type II Cap Tread 4 inch depth
Style 841 MIL-T-24634 4 inch Full Tread end view

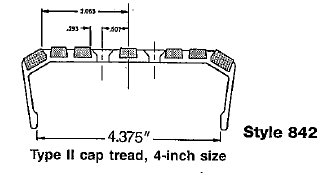

Style 842 MIL-T-24634 4 inch Cap Tread end view
Product Number Summary Description Detailed Description Product Number Summary Description Detailed Description


Style 861 Type I Full Tread 6 inch depth Style 862 Type II Cap Tread 6 inch depth

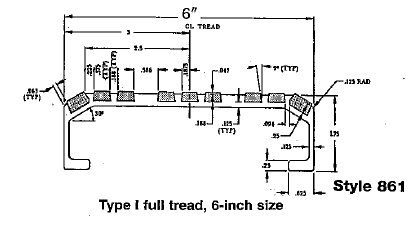

Style 861 MIL-T-24634 6 inch Full Tread end view

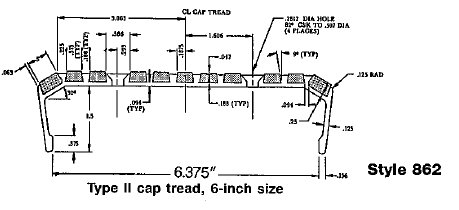

Style 862 MIL-T-24634 6 inch Cap Tread end view
Product Number Summary Description Detailed Description Product Number Summary Description Detailed Description
      9850-862-0006 MIL-T-24634/Sty862/TyII/6 inch MIL-T-24634 Type II Cap Tread for Inclined Ladders; Compound Filled; Reversible; ___ pcs; 6 inch size; Length: __; 1.17#/LF; $/LF (rack#: Sty862TypII-6-in)

Style 891 Type I Full Tread 9 inch depth
Style 892 Type II Cap Tread 9 inch depth

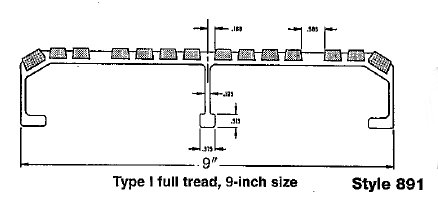

Style 891 MIL-T-24634 9 inch Full Tread end view

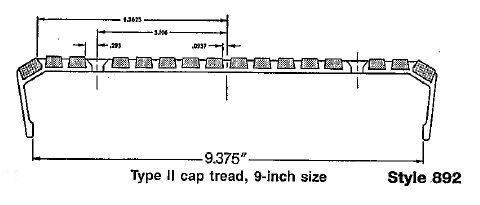

Style 892 MIL-T-24634 9 inch Cap Tread end view
Product Number Summary Description Detailed Description Product Number Summary Description Detailed Description
      9850-892-0009 MIL-T-24634/Sty892/TyII/9in MIL-T-24634 Type II Cap Tread for Inclined Ladders; Compound Filled; Reversible; ___ pcs; 9 inch size; Length: __; 1.76#/LF; $/LF (rack#: Sty892TypII-9-in).

MIL-T-24634 (SH) - Type I Full Tread End Plates

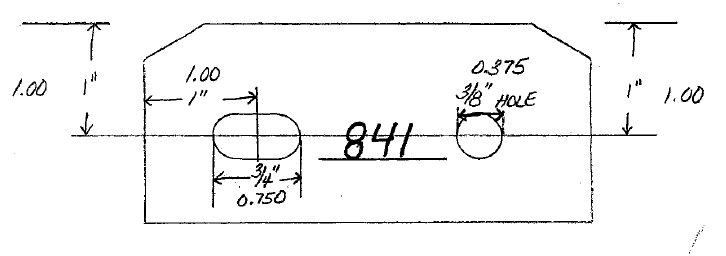

MIL-T-24634 (SH) Type 841 End Plate
MIL-T-24634 (SH) Type 841 End Plate
Product Number Summary Description Detailed Description

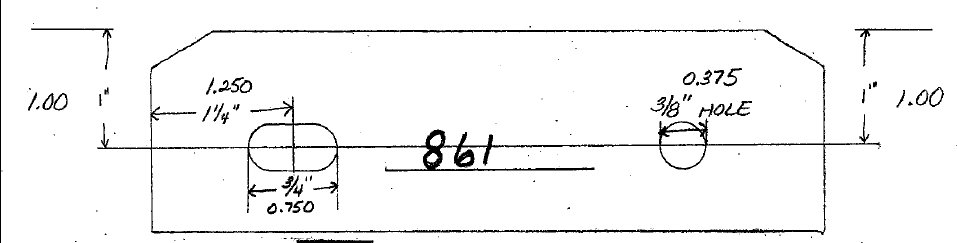

MIL-T-24634 (SH) Type 861 End Plate
MIL-T-24634 (SH) Type 861 End Plate
Product Number Summary Description Detailed Description

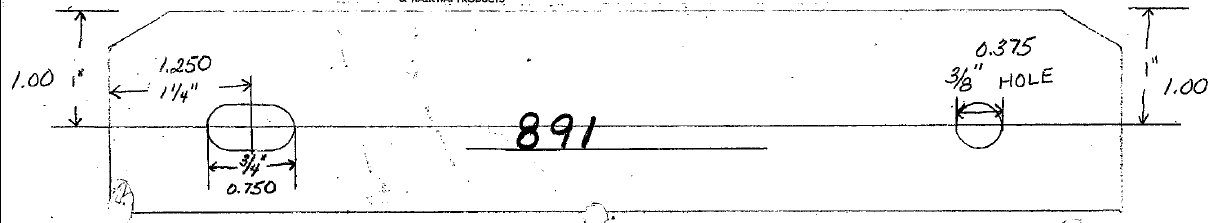

MIL-T-24634 (SH) Type 891 End Plate
MIL-T-24634 (SH) Type 891 End Plate
Product Number Summary Description Detailed Description


Please Note: Pricing will be provided based on types, sizes and quantities required. Thank you.



Details - Manufactured per Military Specification, Treads, Compound-Filled, for Inclined Ladders, per MIL-T-24634 (SH).

Application Photos and Links - See drawings and photos above. Short turnaround time in reasonable quantities.

How to Order - Please provide contact person's name, organization name, phone number, Fax number, e-mail address destination city, state and Zip Code, the type of treads needed; i.e. Type I Full Treads or Type II Cap Treads, the size or sizes of each type and the lengths of each tread type being ordered. Thank you.
