3MTM Wrist Strap and Footwear Tester 740
with optional Shoe Electrode 741

3M Logo



Wrist Starp Tester 740 Properties
Item Properties
Dimensions
5.43 in. x 7.48 in. x 2.09 in.
(13,8 cm x 19,0 cm x 5,3 cm)
Weight
15.75 oz. (450 gm)
Power Supply
27 volt DC transformer,
150 mA (AC/DC adapter suplied)
6 ft. (1,8 m) wire
Test Voltage 20 volts DC, ± 1 volt (open circuit)
Resistance Ranges Lower limit: 750K ohms
Upper limit
wrist strap
2, 5, 10 and 35M ohms
Upper limit
footwear
10, 35, 50 and 100M ohms
Accuracy + 20%, -0% for 750K ohms lower limit
±10% for 2M, 5M, 10M, 35M and 50M
ohms ±20% for 100M ohms
Output
Output Open collector at pins 1, 2, 4 and 5. DC return at pin 5. +5 volts at pin 3.
Wall Mounting 3M™ Dual Lock™ System.



Wrist Strap Tester 740 Characteristics
Height 2.09 Inch
Primary Trademark Name 7.48 Inch
Wall Mountable Yes
Weight 15.75 Ounce
Width 5.43 Inch



Shoe Electrode 741 Properties
Dimesions 20 in. x 16 in. (50.8 cm x 40.6 cm)
Weight 5 lbs. (2.3 kg)
Construction 1mm stainless steel plate and molded plastic base.
Other 3M adhesive strip prevents unit from sliding while in use. Shoe electrode interconnect cord 6 ft. (1.8m).



Back to 3M Shoe and Wrist Strap Testers Index

Back to 3M ESD Product Index



To 3M 740 Operating Instructions


3MTM Wrist Strap and Footwear Tester 740
Product Number Description Detailed Description Price/Case
1203-110-0740 3M Wrist Strap Tester 740 3M Wrist Strap Tester 740; size: 5.43 in. x 7.48 in. x 2.09 in.;15.75 oz; $/ea (rack#: 00051138375980) $426.54 Please Call (800)442-6544 to order.
1203-111-0740 3M Wrist Strap Tester 740 - Certified 3M Wrist Strap Tester 740; CERTIFIED; size: 5.43 in. x 7.48 in. x 2.09 in.;15.75 oz; $/ea (rack#: 00051138376215) $558.92 Please Call (800)442-6544 to order.
1203-110-0741 3M Shoe Electrode 741 3M Shoe Electrode 741; size: 20 in. x 16 in.; 5.0 oz; (for use with Tester 740) $/ea (rack#: 00051138375997) $110.76 Please Call (800)442-6544 to order.
3M Shoe Electrode 741sold separately.

Pricing: All prices shown are for budget and are subject to change. Shipment to NY, NJ or CT will have State Sales Tax added to the final invoice.

Ordering Information: Standard order value is $2,000.00 per order. Orders from $1,000.00 to $1,999.99 will be processed; however a 10% handling charge will be assessed. All products must be ordered in full carton quantities. Add-on orders are not allowed. To order, please Fax your order to 1-(800)628-7329. For questions, please call -(800)442-6544.

Cancellation and Modification: (a) Cancellation. 3M will inform buyer of cancellation charges for non-standard (custom) products upon receipt of written notice of cancellation. Order cancellation charges may be up to 100% of order price depending on the status of the order at the time of cancellation, whether or not product has been shipped by 3M or received by buyer. (b) Acceleration/Delay. 3M will use its commercially reasonable efforts to accommodate buyer's request to accelerate or delay delivery. Acceleration or delay is subject to premium charges which will be determined at the time of the buyer's request.

Freight: Orders $2,000.00 to $3,999.99 are FOB Levittown, Long Island,, NY with freight charges prepaid via lowest cost routing destination within the continental limits of the United States and added to the invoice. Orders of $2,000.00 to $3,999.99 may be shipped directly from the mill to end users with a 10% surcharge added to the standard listed pricing exclusive of shipping, which will also be added to the invoice.

Prices for Alaska, Hawaii and Puerto Rico available on request. Except for Static Control Permanent Flooring Products, orders of $4,000.00 or more are FOB Levittown, Long Island,, NY with freight charges prepaid and allowed via lowest cost routing to destination within the contiguous United States. Orders of $4,000.00 or more may be shipped directly from the mill to end users with a 10% surcharge added to the standard listed pricing with shipping charges to any commercial address in the Continental United States allowed.

All orders for Static Control Permanent Flooring Products are FOB point of shipment with freight charges prepaid and added to invoice.

Delivery: Standard Products will be shipped within one (1) week after receipt of order. Deliveries of special order items vary with the items and with the quantities. Permanent flooring products (i.e. tile and adhesives) normal delivery is one (1) week after receipt of order for standard items that can be shipped from inventory. For items not in inventory, normal delivery lead-time is 4 to six weeks after receipt of order.

Return Policy: No Product returns will be accepted without prior approval from 3M. 3M may, at its sole discretion, grant or withhold return approval based on type of product and customization or product. Custom and special products can not be returned to 3M.

Liability: 3M's and The Mat King's Liability arising out of or related to the products and services provided by 3M shall not exceed the purchase price paid for the products and services. In no even shall 3M nor its distributor The Mat King be liable for costs of procurement of substitute goods. In no even shall 3M nor its distributor The Mat King be liable for any special consequential, indirect or incidental damages arising in any way from the purchase of these products and services including damages based on contract, negligence, warranty, strict liability, statute, common law or otherwise, whether or not 3M has been advised of the possibility of such damage.

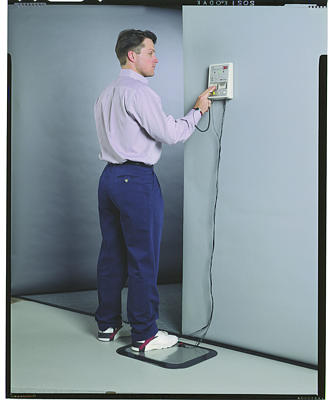

       3M™ Wrist Strap and Footwear Tester 740 is an AC-powered unit designed to be wall-mounted in a production facility for daily testing of employees' static control wrist straps. Use of the optional Shoe Electrode 741 attachment allows the 740 to be used as a footwear tester as well. The optional Shoe Electrode 741 is a test plate that connects the Wrist Strap and the Footwear Testere 740. By standing on the shoe electrode, personnel can use the wrist strap and footwear tester to check the operation of static control footwear, heel straps, and the like. This electrode, constructed of rugged stainless steel in a molded plastic base, must be ordered separately.

Simple to operate, the unit has several useful features and options. Red and green LEDs give a clear "Go" or No Go" indication. The user can select any of four different resistance levels, making the tester a versatile instrument to meet varying industry, corporate and global standards. The unit tests the wrist band and cord while they are being worn, and can also test each component independently to isolate an indicated fault. There is also a digital output that can be usedto interface with a computer, automatic door lock, alarm or other control device.

The wrist strap and footwear tester comes with the base unit, output connector, 3MDual Lock Wall-Mounting System and template cover for the wrist strap plug-in jack and the AC/DC transformer.

3M Id : 98-0798-2525-7
GTIN(UPC/EAN) : 0 00 51138 37598 0

Minimum Order Quantity:
1.0 EACH

Case Quantity:
1.0 EACH

Gross Weight: 4.0 lbs (1.8144 KG)



Transportation: Prices are F.O.B. point of shipment with transportation charges prepaid via lowest cost routing destination within the continental limits of the United States. If customer chooses a different freight company, customer incures the difference in freight charges. Prices for Alaska, Hawaii and Puerto Rico available on request.

Orders of $3,000.00 or greater will be shipped freight free to anywhere within the continental limits of the United States. Orders of less than $3,000.00 will incure a 20% handling charge.

Shipment to NY, NJ or CT will have State Sales Tax added to the final invoice.

Warranty and Limited Remedy: Product will be free from defects in material and manufacture. 3M MAKES NO OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. If product is defective, customer's exclusive remedy shall be, at 3M's option, replacement or repair of the 3M product or refund of the purchase price of the 3M product.

Limitation of Liability: 3M nor it's distributor, Geoffrey Drew Marketing, Inc. d/b/a The Mat King, shall not be liable for any losses or damages, whether direct, indirect, special incidental, or consequential regardless of the legal or equitable theory asserted, including contract, negligence, warranty, or strict liability.
