Transit-Flor
Fiber Reinforced Rubber Flooring is also available in special
formulation for rail cars in the Low Smoke and Flame
200 Series to meet the bridge and tunnel requirements.

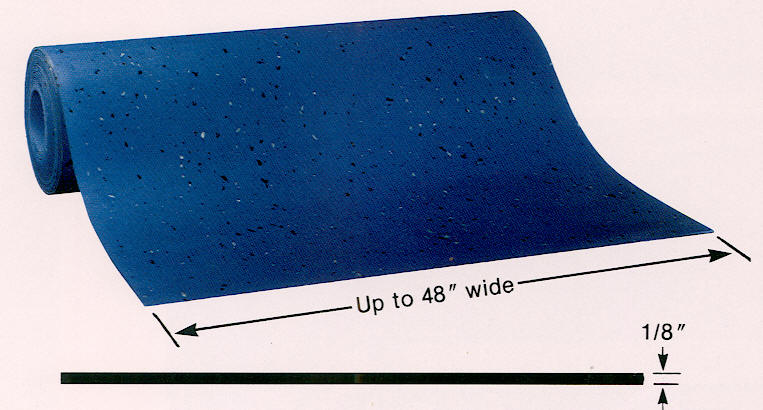

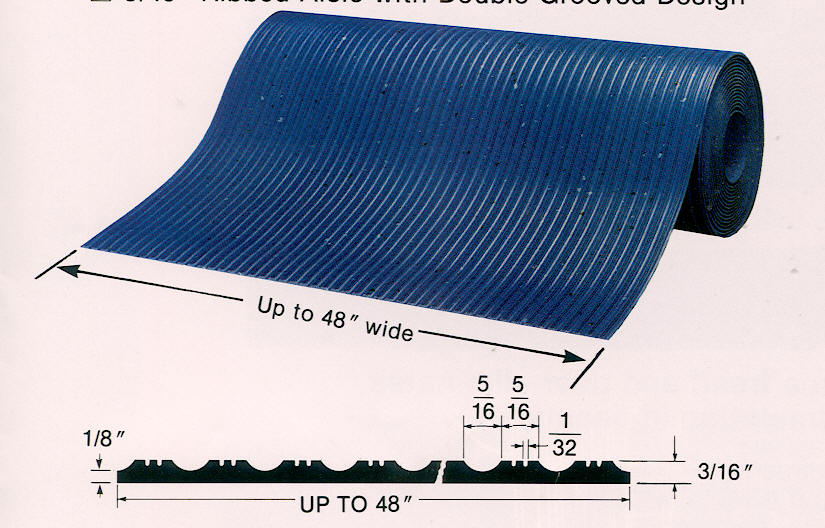

This material is available in 1/8" gauge smooth and in 3/16"
gauge ribbed. The flooring can be produced in a variety of width
to a maximum width of 48". Widths of 46" or less are
most popular. There are length limitations, which make the use
of a dimentional drawing for quoting and fabrication purposes.
Therefore, when requesting a quotation, please provide the following:
1. Contact person's name, company name, phone
number, fax number, e-mail address and destination city, state
and Zip Code or Postal Code.
2. Indicate whether the material required
is to include smooth and ribbed flooring or all of one type and
which type desired.
3. Please provide dimensional drawings indicating
the direction of the ribbing and any special cutting that may
be required.
4. If possible, please provide the make and
model of the rail car or cars being repaired, refurbished or rehabilitated
as we may well be familiar with the original Part Numbers and
exact dimensions assigned to each on for each unit.

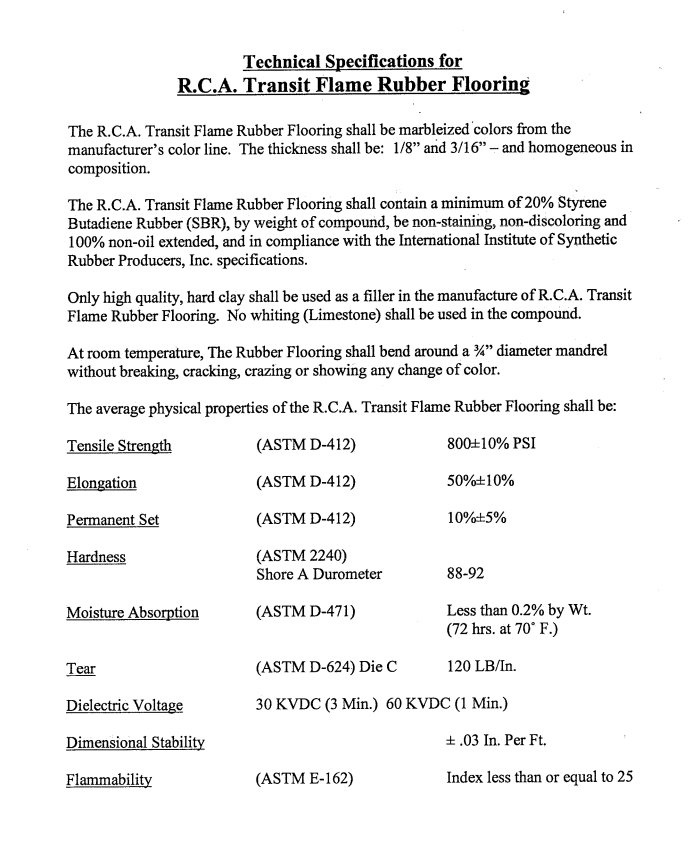

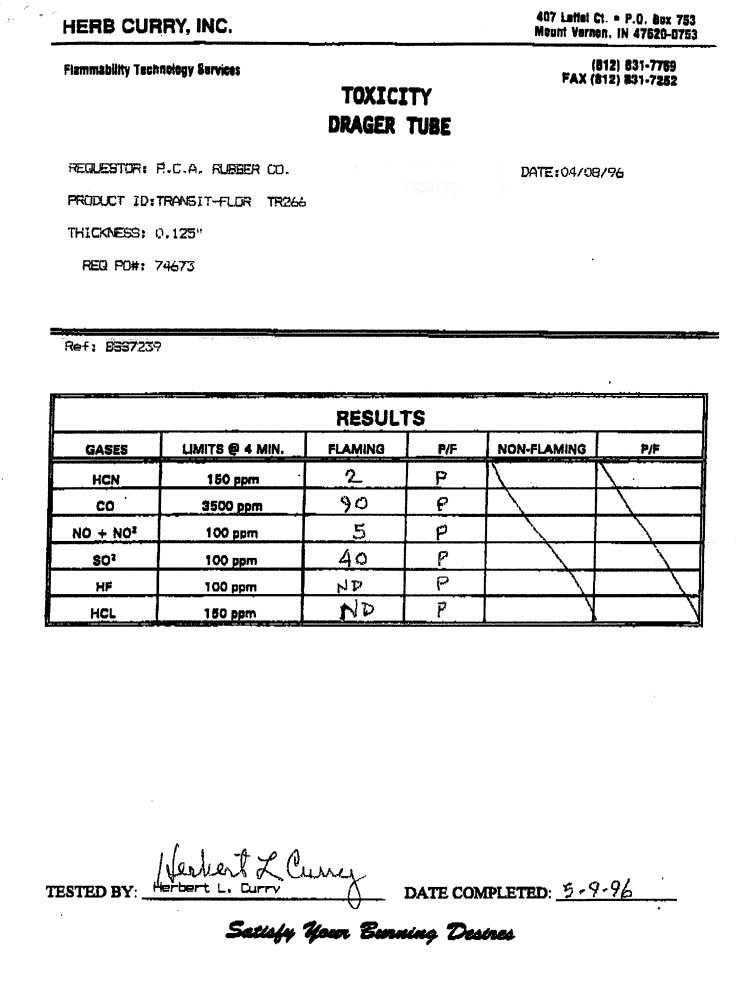

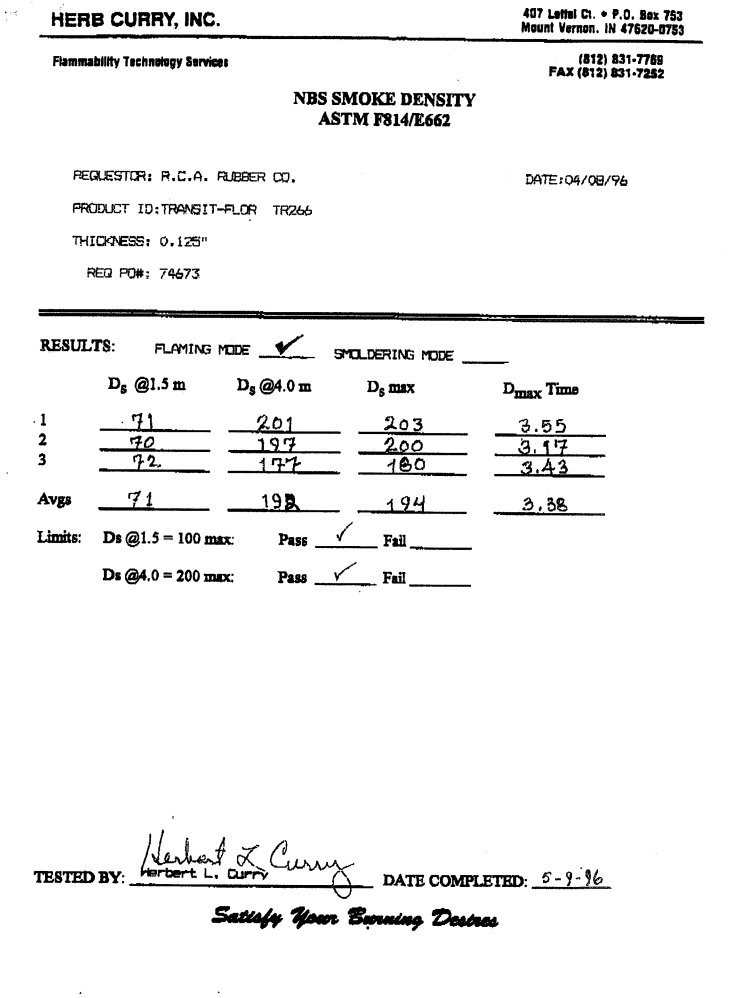

Please Note: Transit-Flor Fiber Reinforced
Rubber Flooring in the Low Smoke and Flame
200 Series formulation has its own specifications,
which can be reviewed by clicking on the following links:
|
