Take a stand on safety.

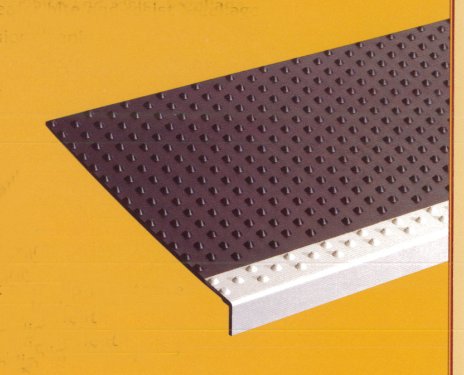

Why take any chances? The Summit Rubber Transit Stair Tread for school buses is designed to deliver the traction and durability needed to meet the safety demands of any school bus fleet. Take a look at what the Summit Rubber Transit Stair Tread delivers.



Title Architectural Specifications:



The Flooring herein specified shall be Summit Rubber Transit Stair Traed, as manufactured by The R.C.A. Rubber Company of Akron, Ohio, and also referred to as Apex Tread and supplied by The Mat King (800)442-6544 Fax (800)628-7329

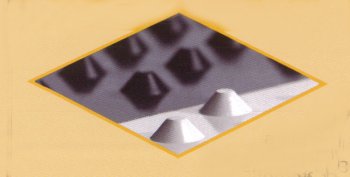

Product Specification for Summit Rubber Transit Stair Tread: The Summit Rubber Transit Stair Tread shall be compounded from natural and or synthetic rubber with a conical shaped design surface. Each conical or cone shaped raised stud shall have a trunkated top and be a nominal height of 0.130 inches with a base dimension of 0.375 inches tapering to 0.125 inches at the peak or "summit" which being trunkated, is flat. The raised "summit" also known as the "Apex Pattern" shall be spaced 0.75 inches on center. The integral contrasting nose (white or yellow) shall have a nominal width of 1.75 inches and a 1.25 (ID) lip. The rubber composition shall be bonded to 22 guage galvanized metal backing during vulcanization. The The product shall have a Flame Spread Rating of 25 or less when tested in accordance with ASTM-E84. The Summit Rubber Transit Stair Tread shall be installed with _________.

Larger cone-shaped saised nub design to give greater bite and to resist breakage.

Thicker and more widly spaced conical shaped raised nubs to make them easier to clean and maintain.

Proven RCA Rubber quality and durability.

Dimention ally stable rubber creats more grab with a student's typical footwear without the shrinkage commonly associated with other flooring products.

Rugged 22 guage galvanized metal backing for longer tread life.

Meets ADA guidelines for color contrast and for slip resistance.

Available in ALL OEM sizes to retrofit an existing fleet.

Available in Black and in Marbleized colors to mstch existing floor covering.

Click HERE for balance of Architectural Specifications.
