Yukon

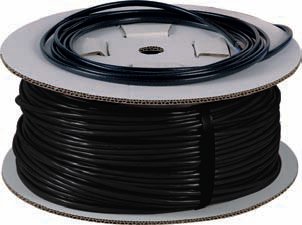

Inground Ice and Snow Melting Cable
"Out-a-sight" snow melting
mats with minimal environmental impact. |
 |
|
Yukon
Ice and Snow Melting Cables
- are one of the building blocks of the Yukon Embedded Ice and Snow Melting
System, which is designed to economically reduce the overall burden of
the snow removal process while, at the same time, minimizing the usual
deleterious effects of that process on the environment by allowing walkways
and driveways to be made safe and free of snow and ice complications without
the need for salt and chemicals so harmful to the earth and the natural
way of things.
 |
| |
| General
Information |
| Single point connection. |
| Easy and flexible installation. |
| Durable and advanced materials. |
| Snow melting system suitable for
concrete, asphalt [maximum 220°F
(105°C)],
pavers, and stonework. |
| Ideal for driveways, parking lots,
sidewalks, stairs, ramps, loading areas and bridges. |
| Reduces the environmental impact
of snow removal by eliminating the use of fossil fuel driven snow
blowers, snow plows, rock salt or other chemicals. |
| Silent.. |
| Efficient. |
| Automatic. |
| Safe. |
|
|
| Specifications |
| Type: |
Twin conductor. |
| Voltage: |
208,
240, 277, 347. 480, 600V |
| Output: |
Mat: 50W/sq.ft.
(540W/m2); Cable: 12W/ft (40W/m).. |
| Heating Element Size: |
6.5' (1.98m)
to 80' (24.38m) long x 2' (0.61m) wide. |
| Cold Lead: |
20' (6.0m) |
| Bending Radius: |
Minimum 1.5"
(38mm) . |
| Cable Diameter: |
1/4" (6.5mm) |
| Wire Insulation: |
FEP |
| Filler Sheath: |
PEX |
| Casing: |
PVC |
| Maximum Temperature: |
220°F (105°C) |
| Minimum Installation Temperature: |
40°F (5°C) |
|
| |
| Warranty
- Cable/Mat: 10 year comprehensive extended warranty against defects
in material, design and workmanships. |
|
| |
|
|
| |
| |
