Major Metal Cast Aluminum Abrasive Stair Treads and Nosing for Steel Pan Applications
Stair Treads and Nosing for Maximum Durability in Rough Use Area.


Major Metal Cast Aluminum Abrasive Stair Treads and Nosing are not intended to help you make a fashion statement. So, don't expect any pretty pictures here. This stuff just works. It can be  specified for:
  • Maximum Durability in Rough Use.
  • Indoor or Outdoor Use
  • New Construction or Renovation
  • Resistance to Unusually Corrosive Environments.
  • Anti-Slip Safety Properties.
  • Unusual Field Conditions.
.



Poured Concrete Applications Steel Pan Applications

Existing Stair Repair Applications

Structural Treads
Concrete Curb Applications Miscellaneous Applications
  • Castings are subject to usual foundry draft, tolerances and thickness +/- 1/8".
  • Nosing will show a parting line on nose surface.
  • Standard measurements are from top of nosing.
  • Custom lengths to +/- 1/16".
  • Standard hole size 1/4" with countersunk hole tops.
  • Beveled Treads: Contact The Mat King regarding availability per application.
  • Anchors can be Integral, Wing Type, Shields and Screws or Tapcon Screws. Standard Drill Pattern is 3" from ends and 12" on center between those end holes. Custom drill patters must be provided with purchase order.

These sections are available with concealed integral anchors, wing anchors, or countersunk holes. Click HERE for details.

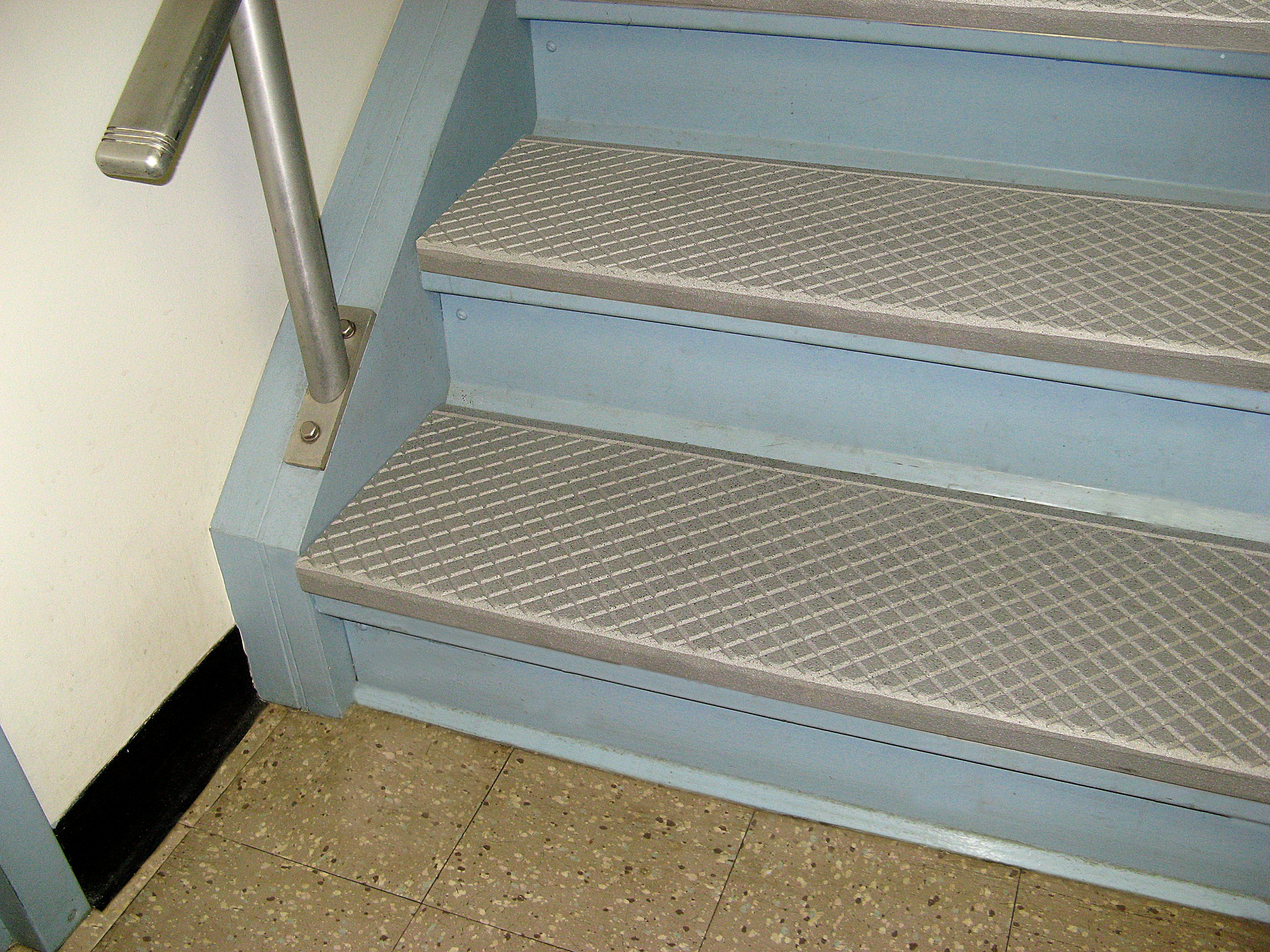

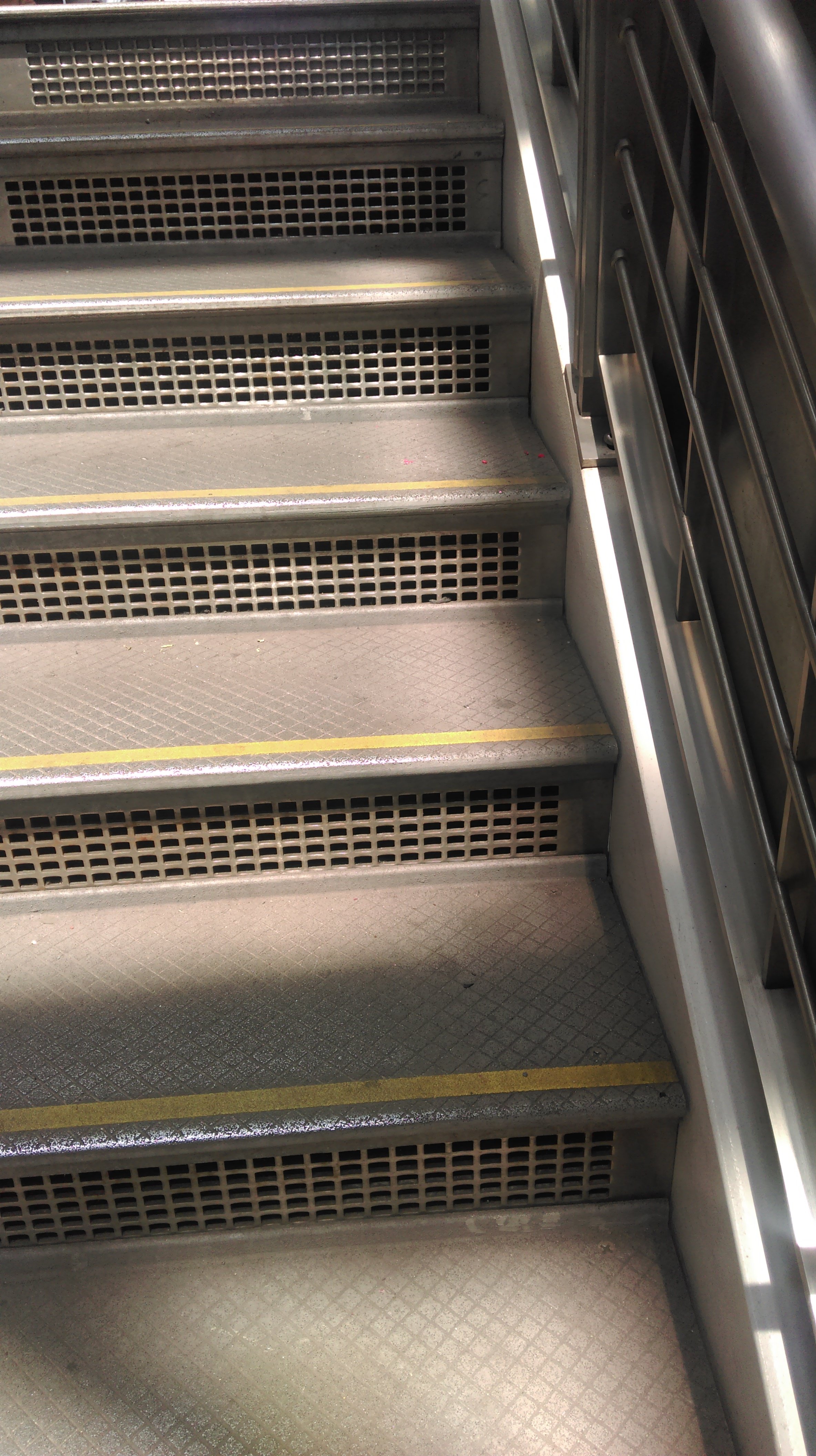

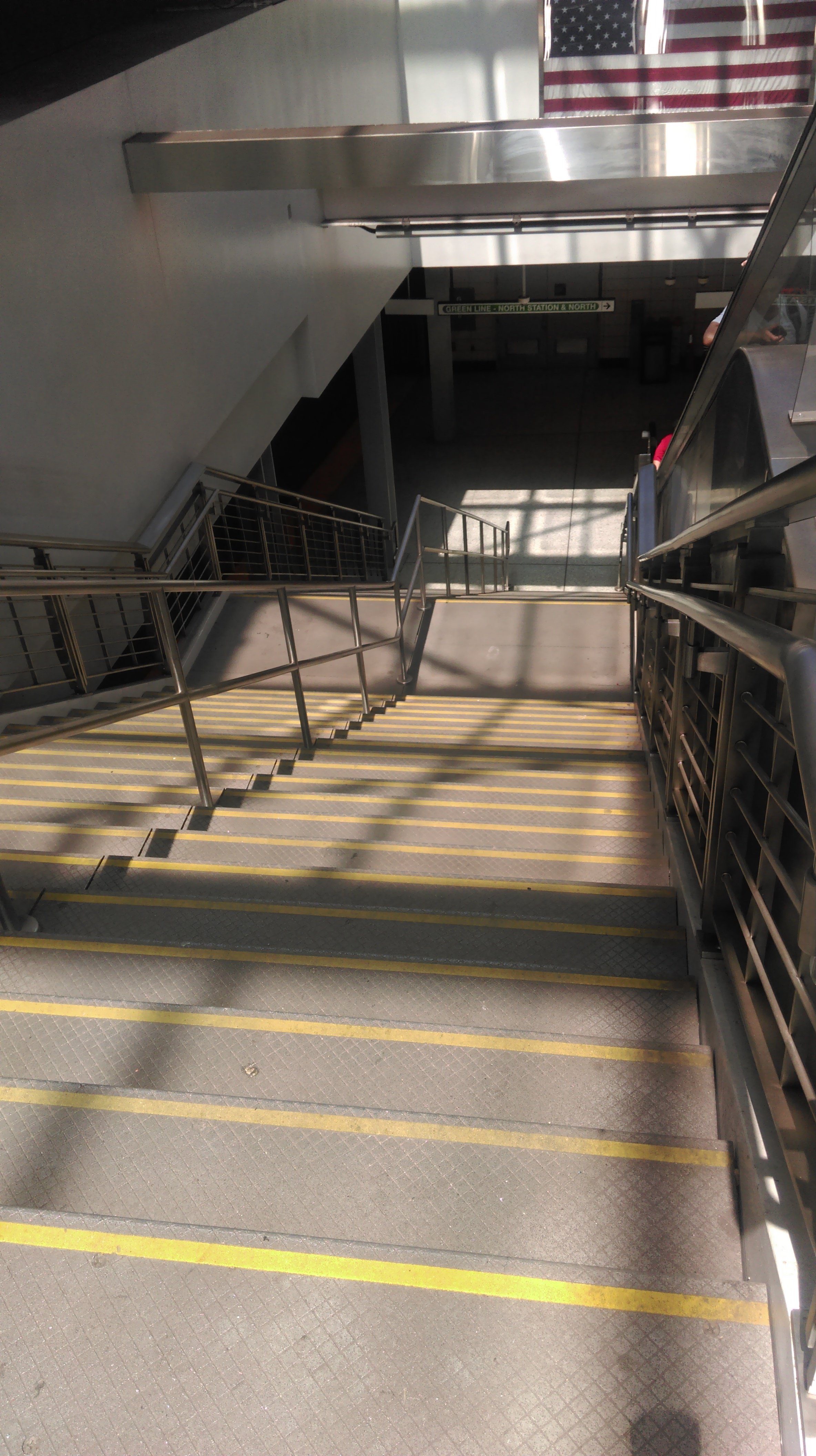

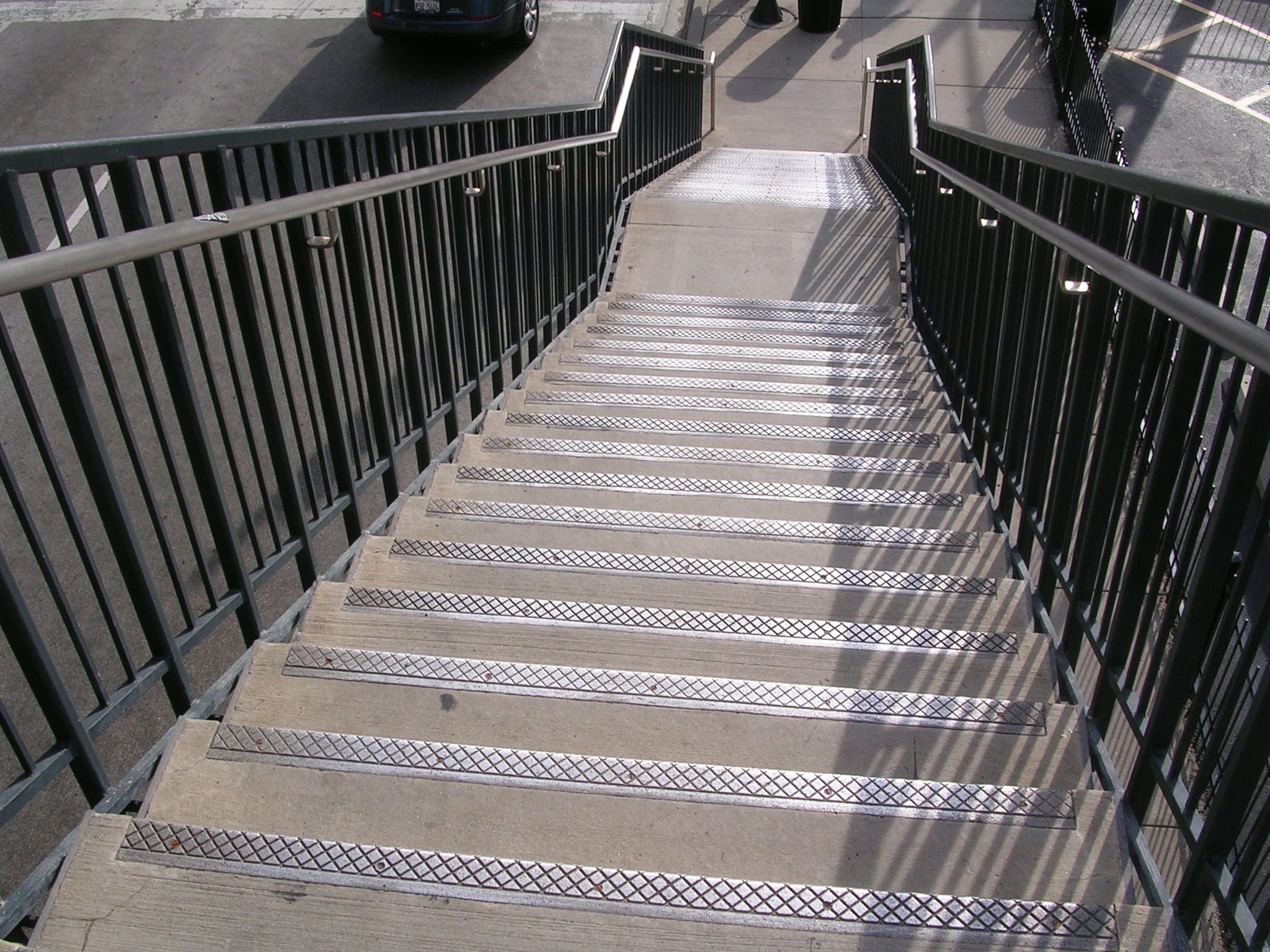

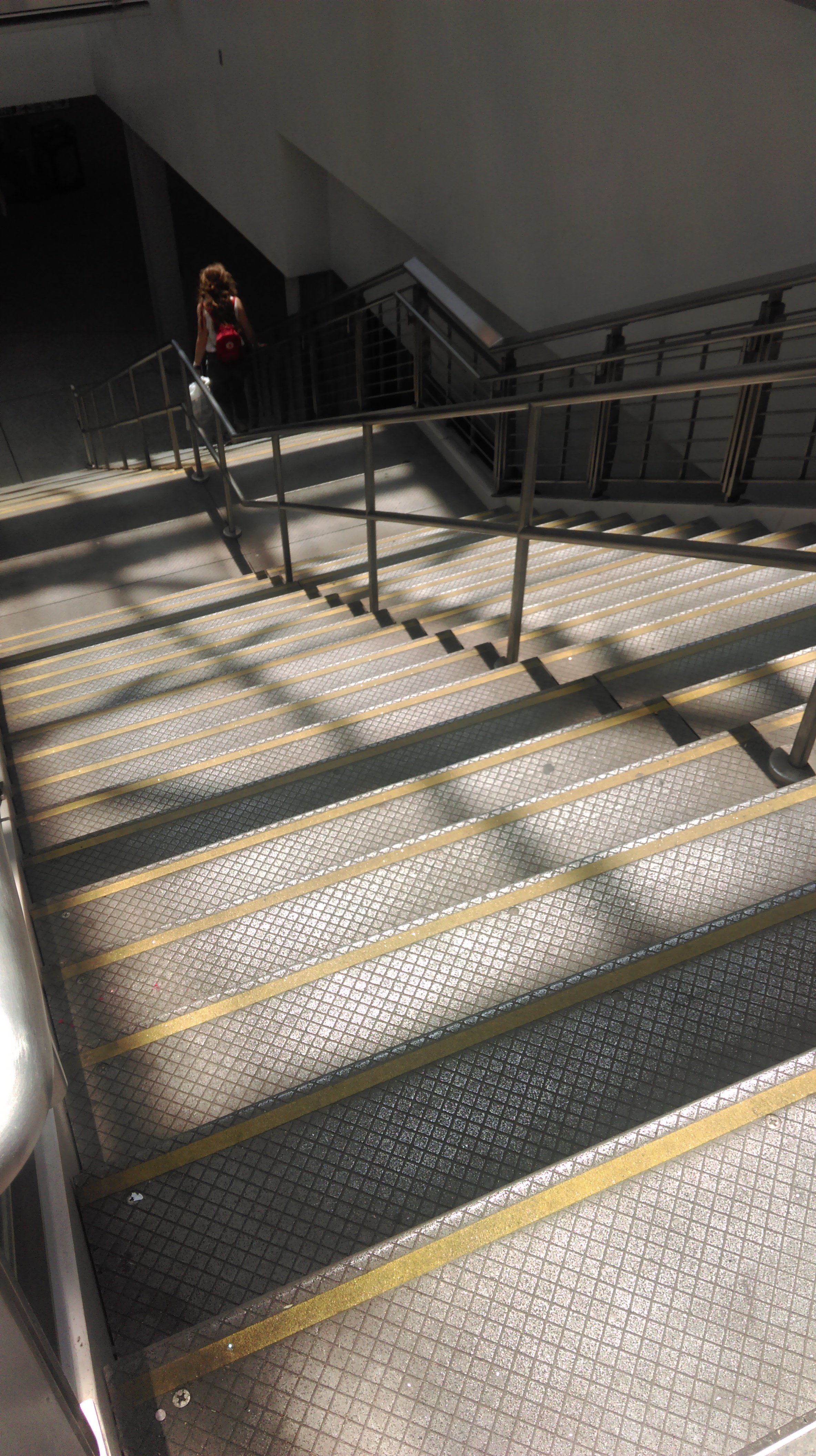

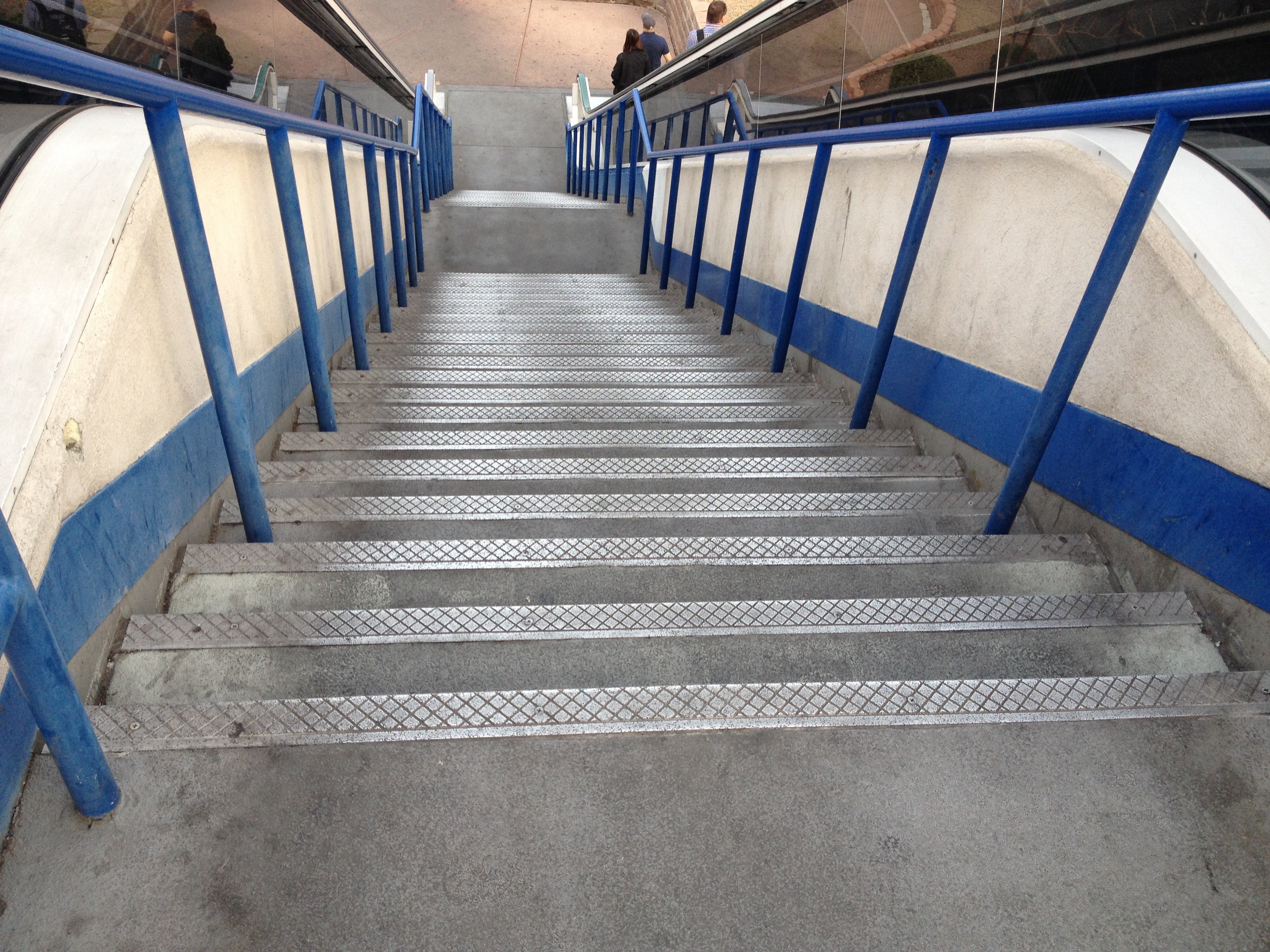

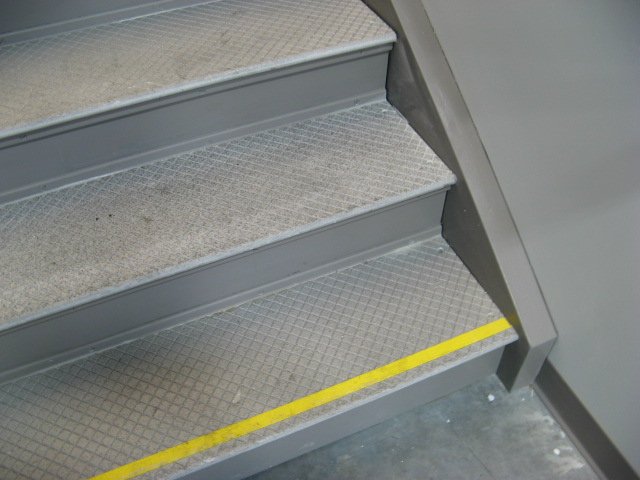

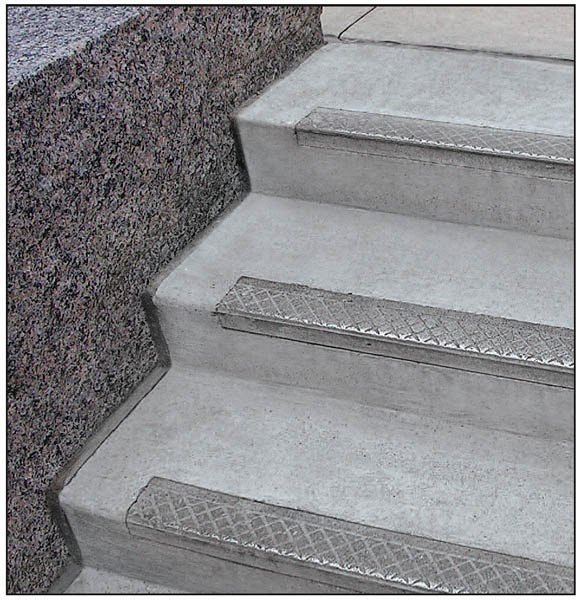

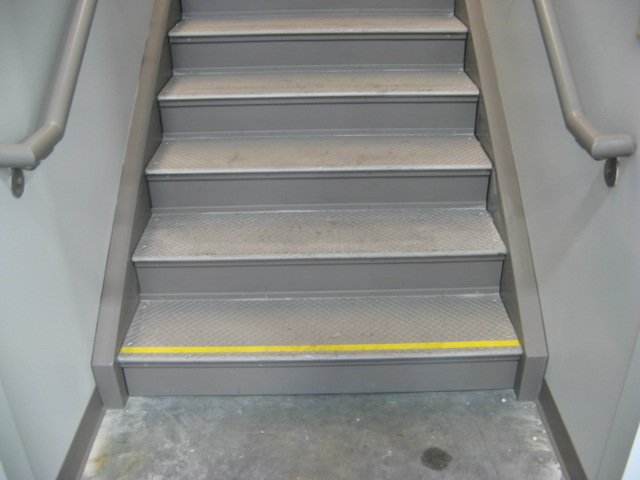

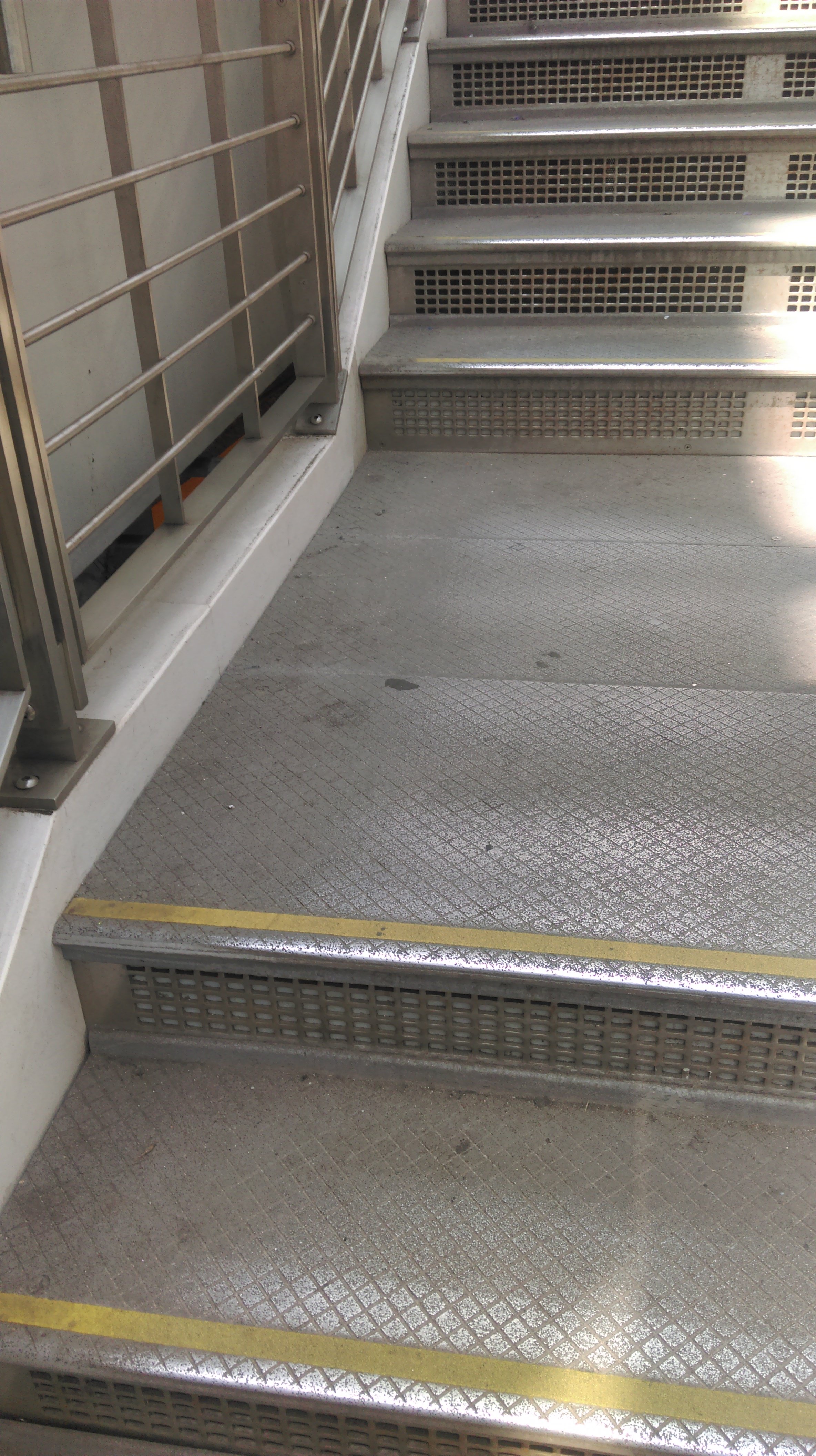

Application Photographs
1

Steel Pan : Generally installed full stringer to stringer length , less 1/8 " (3.05 mm) clearance.
Depth
Cast Aluminum
Depth
Cast Aluminum
3"
P/N 9833-101-0103
3"
P/N 9833-100-0203
4" P/N 9833-101-0104 4" P/N 9833-100-0204
6" P/N 9833-101-0106 6" P/N 9833-100-0206
Please Note: Type 116A can be provided with a beveled back edge for treads of 6" or wider at an additional charge.
Custom Depths require pattern with order. Custom Depths require pattern with order.
.

Depth

Cast Aluminum

3"
P/N 9833-100-0303

4"
P/N 9833-100-0304

6"
P/N 9833-100-0306

Pricing: Due to the specialty nature of this material, pricing is by quotation according to lengths, coverage of landings and accessories required.  Price quotes are furnished at no charge and with no obligation.

Maximum Length versus Depth - To be used as a guide when developing a specification or bid request. Platform recommended piece size. Consult The Mat King for details.
Type Number Metal Depth Thickness Structural Max Length Non-Structural Max Length Diagram
100 Cast Aluminum 1.5" to 6" 5/16" to 3/8" N/A 8'-6"

asa

Type 100

Architectural Specifications

    6" to 12" 5/16" to 5/8" N/A 6'
101 Cast Aluminum 1.5" to 6" 5/16" to 3/8" N/A 8'-6"
    6" to 12" 5/16" to 5/8" N/A 6'
101SP Cast Aluminum 1.5" to 6" 5/16" to 3/8" N/A 8'-6"
    6" to 12" 5/16" to 5/8" N/A 6'
102 Cast Aluminum 1.5" to 6" 5/16" to 3/8" N/A 8'-6"
    6" to 12" 5/16" to 5/8" N/A 6'
103 Cast Aluminum 1.5" to 6" 5/16" to 3/8" N/A 8'-6"
    6" to 12" 5/16" to 5/8" N/A 6'
104 Cast Aluminum 1.5" to 6" 5/16" to 3/8" N/A 8'-6"
    6" to 12" 5/16" to 5/8" N/A 6'
110 Cast Aluminum 1.5" to 6" 5/16" to 3/8" N/A 8'-6"
    6" to 12" 5/16" to 5/8" N/A 6'
116 Cast Aluminum 1.5" to 6" 5/16" to 3/8" N/A 8'-6"
    6" to 12" 5/16" to 5/8" N/A 6'
116A Cast Aluminum 1.5" to 6" 5/16" to 3/8" N/A 8'-6"
    6" to 12" 5/16" to 5/8" N/A 6'
120 Cast Aluminum 1.5" to 6" 5/16" to 3/8" N/A 8'-6"
    6" to 12" 5/16" to 5/8" N/A 6'
105  Cast Aluminum 6" to 12" 1/2" to 5/8" 5' 6'
105-A Cast Aluminum 1-1/8" Slanted 5/16" to 3/8" N/A 8'-6"
    6" to 12" 5/16" to 5/8" 5' 6'
105-B Cast Aluminum 1-1/8" Slanted 5/16" to 3/8" N/A 8'-6"
    6" to 12" 5/16" to 5/8" 5' 6'

106 Cast Aluminum 4" to 6" 1/2" to 5/8" N/A 8'-6"
      6" to 12" 1/2" to 5/8" 5' 6'
107 Cast Aluminum  10" to 12" 1/2" to 5/8" 5' 6'
107-A  Cast Aluminum 10" to 12" 1/2" to 5/8" 5' 6'

117

  Cast Aluminum

4" to 6"

1/2" to 5/8" N/A 8'-6"


6" to 12"

1/2" to 5/8" 5' 6'

117-A

Cast Aluminum

4" to 6"

1/2" to 5/8" N/A 8'-6"


6" to 12"

1/2" to 5/8" 5' 6'

150

Cast Aluminum
1.5" to 1.5"

3/8"

N/A 6'


250

Cast Aluminum
2.5" to 2.5"

1/2"

N/A 6'


.


Price Quotation Requirements: Please provide contact name, company name, phone and Fax numbers, as well as the following details of your material requirements:
1. Quantity of pieces required of each item.
2. Size of each item, i.e. width (front to back) and length of the tread.
3. Type of Tread, i.e. Product Number and Product name.
4. Thickness of tread.
5. Type of Application, i.e. Poured Concrete, Repair, Curb, Steel Pan, Structural, etc.
6. Type of Anchor.
7. City, State and Zip Code of "Ship To" address for determination of freight charges.
