Our Polyprene Thermoplastic Prestige Rubber Hinge
Roll Up Mat is more environmentally stable than vinyl hinge mats
- resisting ozone, heat, mildew, ultraviolet light and temperature
extremes. It remains flexible down to -71F and has been flex-tested
up to 3.4 million cycles with absolutely no breakdown. The exclusive
hinge design eliminates metal-to-metal noise and the mat configuration
causes water and dirt to run off quickly and easily. This quality-made
mat is available with the same frame options as the Prestige
Aluminum Hinge Mat.
Please Note: The maximum rail length in one
uninterrupted piece is 12'. Wider mats will be supplied in two
or more sections. It is preferable to locate the seams; i.e. where
mat sections come together, away from main traffic areas such
as directly between entrance doors.
|
|
|
| |
| |
| Brush
Tread
#538
|
 |
| Architectural
Specification: Roll-up mat shall be The Mat King Prestige
Rubber Hinge Brush Tread Mat Product Number 3300-400-0543.

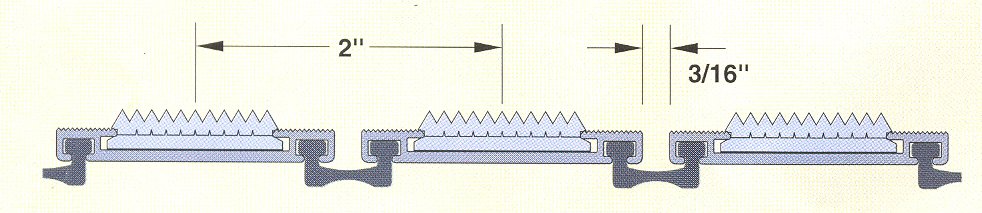

Tread rails shall be 6063-T52 aluminum spaced 2" on center
connected with a polyprene thermoplastic rubber hinge with 1"
x 3/16" slotted holes for maximum drainage. Brush inserts shall
be heavy denier polypropylene olefin fibers bonded to durable vinyl
backing. Three insert colors are available. |
| Product
Number: 3301-100-0538 |
| Description:
Rubber Hinge Aluminum Rail Mat 538 Brush Tread, Finish: [Mill, Black,
Other ___]; Brush Tread Color: ____; Size: ___ x ___; (rack#: Mat-538) |
 |
| |
Carpet
Tread
#536
|
 |
| Architectural
Specification: Roll-up mat shall be The Mat King Prestige
Rubber Hinge Carpet Tread Mat Product Number 3300-400-0536.
Tread rails shall be 6063-T52 aluminum spaced 2" on center
connected with a polyprene thermoplastic rubber hinge with 1"
x 3/16" slotted holes for maximum drainage. Carpet inserts
shall be of 100% nylon, fusion bonded to backing for durability
and mechanically secured in tread rails. Sixteen insert colors
are available. |
| Product
Number: 3301-100-0536 |
| Description:
Rubber Hinge Aluminum Rail Mat 538 Brush Tread, Finish: [Mill, Black,
Other ___]; Brush Tread Color: ____; Size: ____ x ____ (rack#: Mat-538) |
 |
| |
|
Vinyl
Abrasive Tread
#539
|
 |
| Architectural
Specification: Roll-up mat shall be The Mat King Prestige
Rubber Hinge Vinyl Abrasive Tread Mat Product Number 3300-400-0539.
Tread rails shall be 6063-T52 aluminum spaced 2" on center
connected with a polyprene thermoplastic rubber hinge with 1"
x 3/16" slotted holes for maximum drainage. Tread shall
be a rigid vinyl insert with factory secured abrasive grit tape
surface. Five insert colors are available. |
| Product
Number: 3301-100-0539 |
| Description:
Rubber Hinge Aluminum Rail Mat 539 Vinyl Abrasive Tread; Finish:
[Mill, Black; Other ___; Size: ___ x ___ (rack#: Mat-539) |
 |
| |
|
Vinyl
Tread
#537
|
 |
| Architectural
Specification: Roll-up mat shall be The Mat King Prestige
Rubber Hinge Corrugated Vinyl Tread Mat Product Number 3300-400-0537.
Tread rails shall be 6063-T52 aluminum spaced 2" on center
connected with a polyprene thermoplastic rubber hinge with 1"
x 3/16" slotted holes for maximum drainage. Tread surface
shall be convex to permit drainage and crosshatched to improve slip
resistance. Six insert colors are available. |
| Product
Number: 3301-100-0537 |
| Description:
Rubber Hinge Alum Rail Mat 537 Vinyl Tread; Finish: [Mill, Black,
Other ____]; Vinyl Tread Color: ___; Size: ___; (rack#: Mat-537) |
 |
|
|
|
Heavy
Duty Aluminum Roll-Up Entrance Grate
| Heavy
Duty yet easy to maintain. |
| Rolling Load of
1,000 lbs. per wheel. |
| Stable positive-locking
thermoplastic foot and hinge base.
|
| Continuous drainage
slots channel dirt and water away from the walking surface. |
| Custom sizes, nice
variety of metal finishes and tread inserts. |
|
Click HERE
to see detailed drawings and close-up photographs. |
| |
