Great
Grip Color Option Stair Treads
for sloped riser steel pan stairs
are designed to meet the OSHA barrier-free code for barrier-free
stair construction. They are intended for heavy pedestrian
traffic use and are non combustibleCustom lenghts to +/-
1/16". |
These sections available with countersunk
holes or time-saver anchors. |
|
|
|

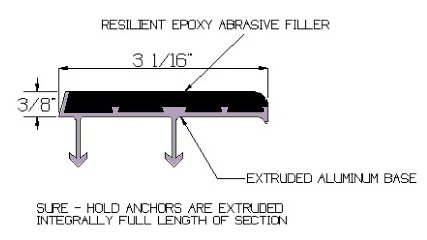

Type
GG-3-J |
Type
GG-2-J |
Type
GG-2-JT |
Product Number: 9850-100-3004 |
Product Number: 9850-100-2011
| Product Number: 9850-100-2005 |
Description: 3-1/16" (77.79 mm) wide x 3/8"
(9.53 mm) thick. Note: Nose design provides better fit
at formed edge of steel pan. |
Description: 2-1/16" (52.39 mm) wide x 3/8"
(9.53 mm) thick. Note: Nose design provides better fit
at formed edge of steel pan. |
Description: 2-1/16" (52.39 mm) wide x 3/8"
(9.53 mm) thick. Note: Nose design provides better fit
at formed edge of steel pan. |
|
|
|
|

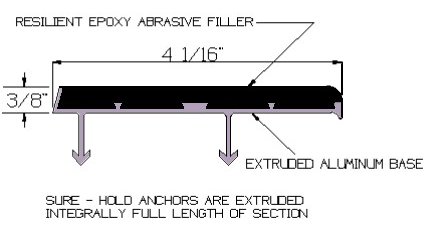

Type
GG-4-J |
Type
GG-3-JT |
Product Number: 9850-100-4004 |
Product Number: 9850-100-3005 |
Description: 4-1/16" (103.19 mm) wide x 3/8"
(9.53 mm) thick. Note: Nose design provides better fit
at formed edge of steel pan. |
Description: 3-1/16" (77.79 mm) wide x 3/8"
(9.53 mm) thick. Note: Nose design provides better fit
at formed edge of steel pan. |
|
|
|
|
|

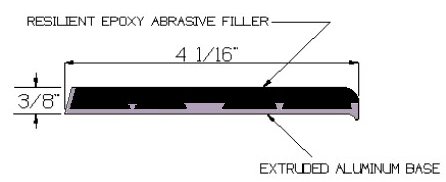

Type
GG-4-JT |
Product Number: 9850-100-4005 |
|
|
Description: 4-1/16" (103.19 mm) wide x 3/8"
(9.53 mm) thick. Note: Nose design provides better fit
at formed edge of steel pan. |
