| Great
Grip Color Option Stair Treads
for steel pan concrete-filled
stairs are generally installed to full stringer-to-stringer
length less approximately 1/8" clearance. They are
intended for heavy pedestrian traffic use and are non combustible.
|
These sections available with countersunk
holes or time-saver anchors. |
|
|
|

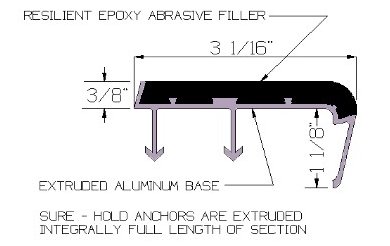

| Type
GG-3-SP |

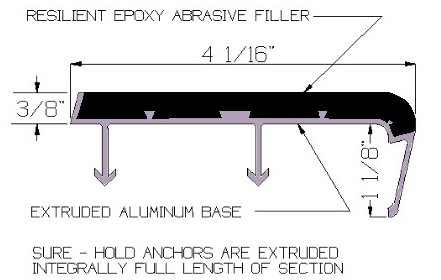

Type
GG-4-SP |

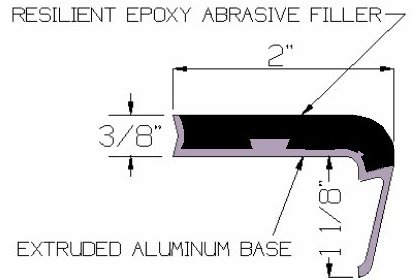

Type
GG-2 |
| Product Number: 9850-100-3003 |
Product Number: 9850-100-4003 |
Product Number: 9850-100-2000 |
| Description: 3-1/16" (77.79 mm) wide x 3/8"
(9.53 mm) thick with nose being 1-1/8" (28.58 mm) underside
having "arrow shaped" Sure-Hold Anchors. |
Description: 4-1/16" (103.19 mm) wide x 3/8"
(9.53 mm) thick with nose being 1-1/8" (28.58 mm) underside
and having "arrow shaped" Sure-Hold Anchors. |
Description: 2" (52.39 mm) wide x 3/8"
(9.53 mm) thick with nose being 1-1/8" (28.58 mm) underside. |
| |
|
|
| |
|

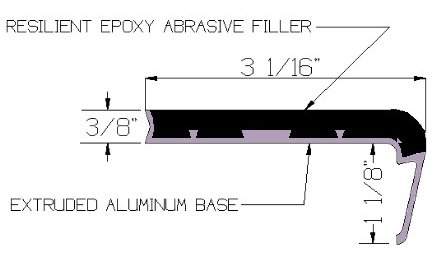

Type
GG-3 |
| Product Number: 9850-100-3000 |
| |
Description: 3-1/16" (77.79 mm) wide x 3/8"
(9.53 mm) thick with nose being 1/4" (6.35 mm) underside
with nose being 1-1/8" (28.58 mm) underside. |
| |
|
|
| |
|

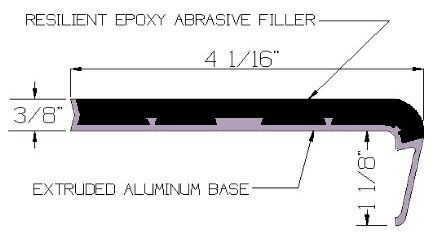

Type
GG-4 |
| Product Number: 9850-100-4000 |
| |
|
Description: 4-1/16" (103.19 mm) wide x 3/8"
(9.53 mm) thick with nose being 1/4" (6.35 mm) underside
with nose being 1-1/8" (28.58 mm) underside.. |
