RCA Design Surface Rubber Stair Treads
DISCONTINUED
PLEASE NOTE: RCA RUBBER COMPANY IS NO LONGER IN BUSINESS - THEIR PRODUCTS ARE NO LONGER MADE. PLEASE CONTACT THE MAT KING AND WE WILL TRY TO SUPPLY ALTERNATIVE PRODUCTS FOR YOUR APPLICATIONS. THANK YOU.
For interior installations only. |
 |
| |

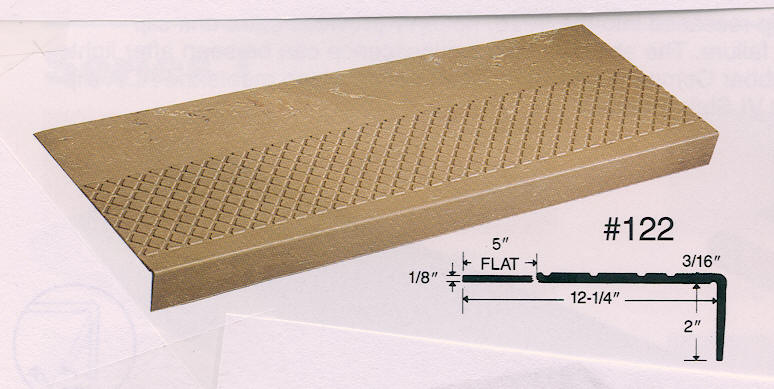

#122 Medium Duty Long Nose Diamond Design
Surface
DISCONTINUED
 |
|
Product #122 Medium Duty Long Nose Diamond Design Surface |
| Product |
Product Number |
Use |
Thickness |
Depth |
Length |
Weight |
Colors |
| #122 |
9636-400-0122 |
Heavy, Medium
or Light Duty |
3/16"
to 1/8" (4.76 to 3.18mm |
12-1/4"
(311mm) |
36",
42", 48", 54", 60", 72" (910,
1070, 1220, 1370, 1520, 1830mm) |
2 lbs/LF (2.98
kg/M |
Series
1 & Series
2 |
|
|
Note:
1. Available with abrasive strips (#422 or 522VI). Long nose
for metal pan-filled stairs. |
|
Note:
2. Available with either Square Nose or with "Adjust-A-Nose"
flexible to from 90o to 60o. |
| |
|
| |

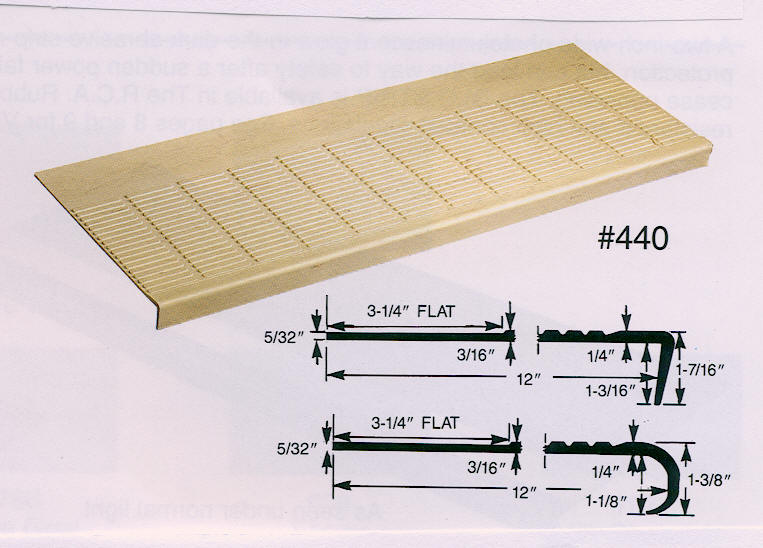

#440
Horizontal Bar Design Surface
DISCONTINUED
 |
| |
Product #440 Horizontal Bar Design Surface |
| |
| Product |
Product
Number |
Use |
Thickness |
Depth |
Length |
Weight |
Colors |
| #440 |
9636-400-0440 |
Heavy
Duty |
1/4"
to 5/32" (6.35 to 3.97mm |
12"
(305mm) |
36",
42", 48", 54", 60", 72" (910,
1070, 1220, 1370, 1520, 1830mm) |
2
lbs/LF (2.98 kg/M |
Series
1 & Series
2 |
|
|
Note:
1. Available with abrasive strips (#445 or 545VI). 54" (1370mm),
60" (1520mm) and 72" (1830mm) available Square Nose
only. |
|
Note:
2. Available with either Square Nose or with Round nose except
as noted in above. |
|
Note:
3. Colors: Square Nose available in Series 1 and 2. Round Nose
available in Series 1 only. |
| |
|
|
|
I |

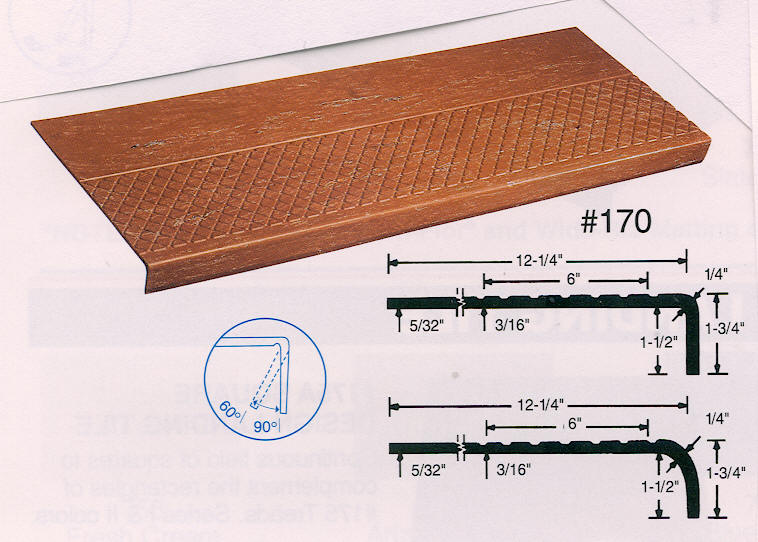

#170
Medium Duty Diamond Design Surface
DISCONTINUED
|
| |
Product #170 Medium Duty Diamond Design Surface |
| |
| Product |
Product
Number |
Use |
Thickness |
Depth |
Length |
Weight |
Colors |
| #170 |
9636-400-0170 |
Heavy
Duty |
1/4"
to 5/32" (6.35 to 3.97mm |
12-1/2"
(318mm) |
36",
42", 48", 54", 60", 72" (910,
1070, 1220, 1370, 1520, 1830mm) |
2
lbs/LF (2.98 kg/M |
Series
1 & Series
2 &
Series 3 |
|
| |
|
| Note:
1. Available with abrasive strips (#470 or 570VI). |
| Note:
2. Available with either Square Nose, with Round Nose or with
"Adjust-A-Nose". |
Note:
3. Colors: Square Nose and "Adjust-A-Nose" available
in Series 1, 2 and 3. Round Nose available in Series 1 only. |
| |
|
|

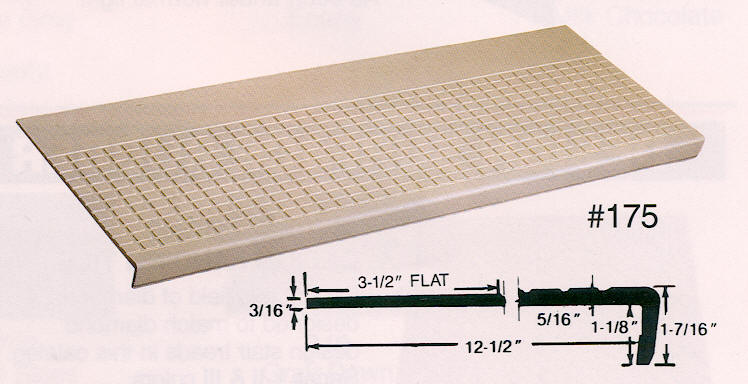

#175 Heavy Duty Rectangular Design Surface
DISCONTINUED
|
| |
|
| |
Product #175 Heavy Duty Rectangular Design Surface |
| |
| Product |
Use |
Thickness |
Depth |
Length |
Weight |
Colors |
| #175 |
Heavy
Duty |
5/16"
to 3/16" (7.94 to 4.76mm |
12-1/2"
(318mm) |
36",
42", 48", 54", 61", 72" (910,
1070, 1220, 1370, 1550, 1830mm) |
2.75
lbs/LF (4.10 kg/M |
Series
1 & Series
2 |
|
|
Note:
1. Available with abrasive strips (#475 or 575VI). |
|
Note:
2. Available with Square Nose only. |
| |
|
|
| |
|
|
Rubber
Stair Treads on this page meet requirements of ADA (i.e. the Americans
with Disabilities Act). |
|
Butting
Stair Treads together is NOT recommended. |
|
|
|
Colors
- Specifications
- Maintenance
-
Samples -
Price Quotation
- Warranty |
|
|
|
RCA
Rubber Company products are Made in America. |
|
| |
| |
