RCA Single Abrasive Strip Design Surface Rubber Stair Treads DISCONTINUED
PLEASE NOTE: RCA RUBBER COMPANY IS NO LONGER IN BUSINESS - THEIR PRODUCTS ARE NO LONGER MADE. PLEASE CONTACT THE MAT KING AND WE WILL TRY TO SUPPLY ALTERNATIVE PRODUCTS FOR YOUR APPLICATIONS.
THANK YOU. |
 |
| |
# 522VI Medium Duty Long Nose Diamond Design Surface with
Abrasive Strip Insert
 |
|
Product # 522VI Medium Duty Long Nose Diamond Design Surface
with Abrasive Strip Insert |
| Product |
Product Number |
Use |
Thickness |
Depth |
Length |
Weight |
Colors |
| #
522VI |
9636-500-6522 |
Medium Duty
|
3/16"
to 1/8" (4.76 to 3.18mm |
12-1/4"
(311mm) |
36",
42", 48", 54", 60", 72" (910,
1070, 1220, 1370, 1520, 1830mm) |
2 lbs/LF (2.98
kg/M |
Series
1 & Series
2 |
|
| Note:
1. Available without abrasive strips (#122)
or with two 3/4" wide abrasive strips (#422VI). Long nose
for metal pan-filled stairs. |
| Note:
2. Available with either Square Nose or with "Adjust-A-Nose"
flexible to from 90o to 60o. |
| Note:
3. For access by the Visually Impaired. Meets California Standard
Code Title 24 for the Visually Impaired. |
| |
|
| |
#
545VI Horizontal Bar Design Surface with Abrasive Strip Insert
 |
| |
Product # 545VI Horizontal Bar Design Surface with Abrasive Strip
Insert |
| |
| Product |
Product
Number |
Use |
Thickness |
Depth |
Length |
Weight |
Colors |
| #
545VI |
9636-500-6545 |
Heavy
Duty |
1/4"
to 5/32" (6.35 to 3.97mm |
12"
(305mm) |
36",
42", 48", 54", 60", 72" (910,
1070, 1220, 1370, 1520, 1830mm) |
2
lbs/LF (2.98 kg/M |
Series
1 & Series
2 |
|
| Note:
1. Available without abrasive strips (#440)
or with two 3/4" wide abrasive strip inserts (#545VI). 54"
(1370mm), 60" (1520mm) and 72" (1830mm) available Square
Nose only. |
| Note:
2. Available with Square Nose, with Round nose or with "Adjust-A-Nose"
flexible to from 90o to 60o except as noted
in above. |
| Note:
3. For access by the Visually Impaired. Meets California Standard
Code Title 24 for the Visually Impaired. |
| |
|
|
|
I |

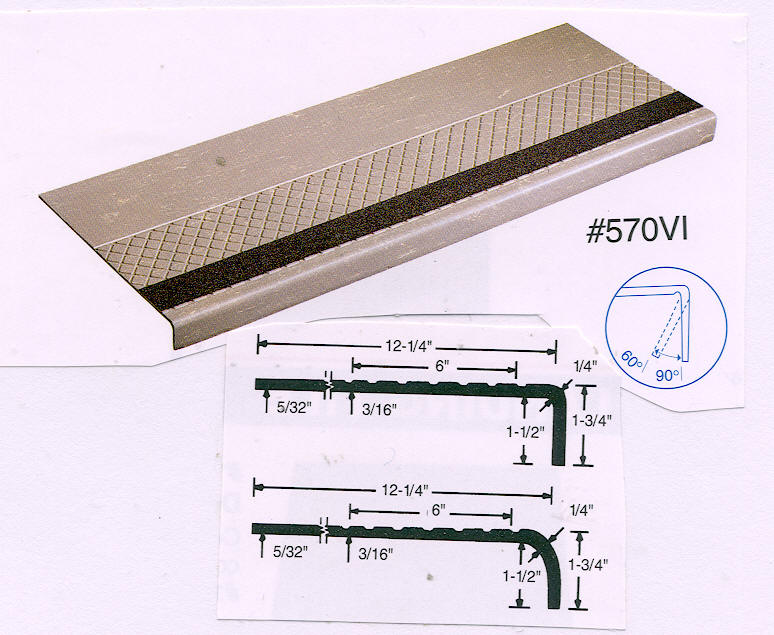

#570VI
Medium Duty Diamond Design Surface with Abrasive Strip Insert
|
| |
Product #570VI Medium Duty Diamond Design Surface with Abrasive
Strip Insert |
| |
| Product |
Product
Number |
Use |
Thickness |
Depth |
Length |
Weight |
Colors |
| #570VI |
9636-500-6570 |
Heavy
Duty |
1/4"
to 5/32" (6.35 to 3.97mm |
12-1/4"
(318mm) |
36",
42", 48", 54", 60", 72" (910,
1070, 1220, 1370, 1520, 1830mm) |
2
lbs/LF (2.98 kg/M |
Series
1 & Series
2 &
Series 3 |
|
| |
|
| Note:
1. Available without abrasive strips (#170)
or with two 3/4" wide abrasive strips (#470). |
| Note:
2. Available with Square Nose, with Round or with "Adjust-A-Nose"
flexible to from 90o to 60o. |
| Note:
3. For access by the Visually Impaired. Meets California Standard
Code Title 24 for the Visually Impaired. |
| |
|
|

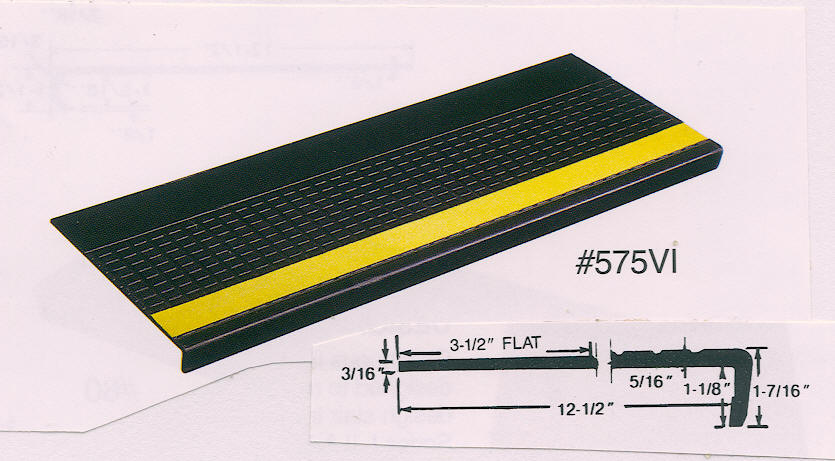

# 575VI Heavy Duty Rectangular Design Surface with Abrasive Strip
Insert
|
| |
|
| |
Product # 575VI Heavy Duty Rectangular Design Surface with Abrasive
Strip Insert |
| |
| Product |
Product
Number |
Use |
Thickness |
Depth |
Length |
Weight |
Colors |
| #575VI |
9636-500-6575 |
Heavy
Duty |
5/16"
to 3/16" (7.94 to 4.76mm |
12-1/2"
(318mm) |
36",
42", 48", 54", 61", 72" (910,
1070, 1220, 1370, 1550, 1830mm) |
2.75
lbs/LF (4.10 kg/M |
Series
1 & Series
2 |
|
| Note:
1. Available without abrasive strips (#175)
or with two 3/4" wide abrasive strip inserts (# 575VI). |
| Note:
2. Available with Square Nose only. |
| Note:
3. For access by the Visually Impaired. Meets California Standard
Code Title 24 for the Visually Impaired. |
| |
|
|
| |
|
| Rubber
Stair Treads on this page meet requirements of ADA (i.e. the Americans
with Disabilities Act). |
| Butting
Stair Treads together is NOT recommended. |
| |
|
Colors
- Specifications
- Maintenance
-
Samples -
Price Quotation
- Warranty |
| |
| RCA
Rubber Company products are Made in America. |
|
| |
| |
