RCA Target® Stair
Treads and Tile
- DISCONTINUED
Class "A" Compounds (ASTM-E84 Flame Spread
Rating of 25 or less)!
For interior installations only. |
 |
|
All the advantages of
long wearing resilient rubber, plus outstanding flame retardant advantages.
Colorful Target®
Tiles and Treads enhance any decor with vast decorating opportunities
and offer exceptional fire retardant features. |
|
Title Architectural Specifications: |
The Flooring herein
specified shall be Target Tile, as manufactured by The R.C.A. Rubber
Company of Akron, Ohio and supplied by The Mat King (800)442-6544 Fax
(800)628-7329
It shall have a Flame Spread Rating
of 25 or Less when tested in accordance with ASTM-E84. The Target Tile
shall be installed with #5 Epoxy Flooring Adhesive. Click HERE
for balance of
Architectural Specifications. |
|
#

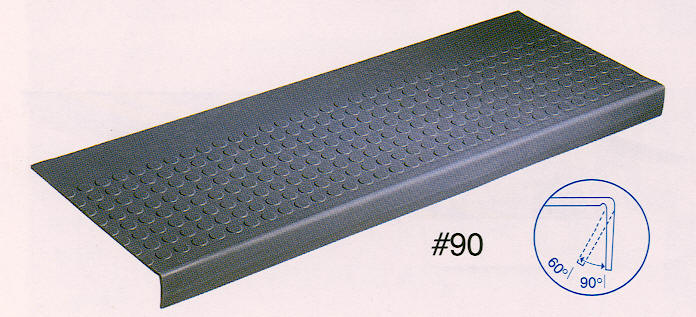

90 Target®
Rubber
Stair Treads
 |
Product # 90 Target Rubber Stair Treads |
Product |
Product Number |
Use |
Thickness |
Depth |
Length |
Weight |
Colors |
#
90 |
9637-200-0090 |
Heavy Duty
|
1/4"
to 5/32" (6.35 to 3.97mm |
12-1/2"
(318mm) |
36",
42", 48", 54", 60", 72" (910,
1070, 1220, 1370, 1520, 1830mm) |
2.5
lbs/LF (3.73 kg/M |
Series 3 |
|
Note:
1. Square Nose Only. |
Note:
2. Available with Adjustable Nose. |
Detailed
dimensions are subject to manufacturing tolerances. |
All
treads are furnished with sanded backs. |
|
|
|
|
|
#

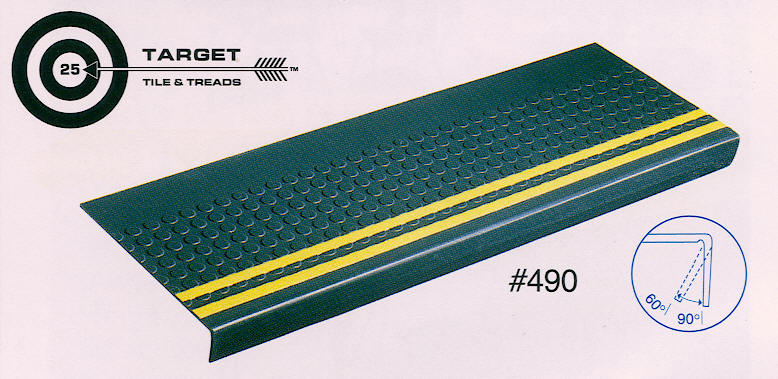

490
Target® Abrasive
Strip Rubber Stair Treads
 |
|
Product # 490 Target Abrasive Strip Rubber Stair Treads |
|
Product |
Product
Number |
Use |
Thickness |
Depth |
Length |
Weight |
Colors |
# 490 |
9637-200-0490 |
Heavy Duty |
1/4" to 5/32" (6.35 to 3.97mm |
12-1/2"
(318mm) |
36",
42", 48", 54", 60", 72" (910,
1070, 1220, 1370, 1520, 1830mm) |
2.5
lbs/LF (3.73 kg/M |
Series 3 |
|
Note:
1. Square Nose Only. |
Note:
2. Available with Adjustable Nose. |
Note:
3. Two 3/4" wide (19.05mm) Black Abrasive Strips will be
supplied unless optional Gray, Brown, Beige, Red, or Yellow Abrasive
Strips are specified. |
Detailed
dimensions are subject to manufacturing tolerances. |
All
treads are furnished with sanded backs. |
|
|
|
0
|
#

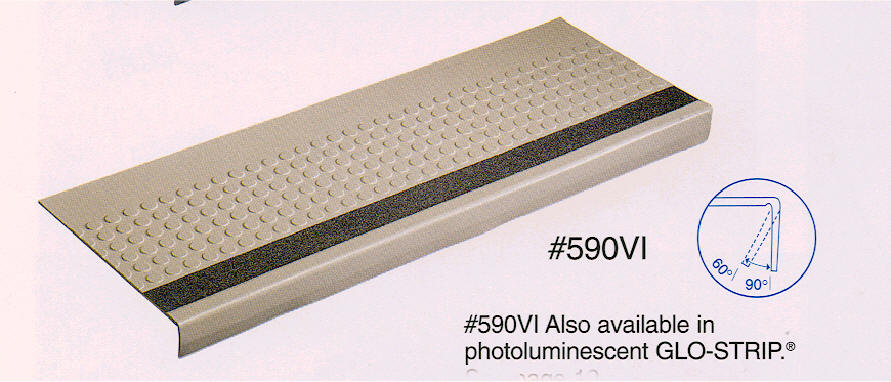

590VI
Target® Abrasive
Strip Rubber Stair Treads
|
|
Product # 590VI Target Abrasive Strip Rubber Stair Treads |
|
Product |
Product
Number |
Use |
Thickness |
Depth |
Length |
Weight |
Colors |
# 590VI |
9637-200-6590 |
Heavy Duty |
1/4" to 5/32" (6.35 to 3.97mm |
12-1/2"
(318mm) |
36",
42", 48", 54", 60", 72" (910,
1070, 1220, 1370, 1520, 1830mm) |
2.5
lbs/LF (3.73 kg/M |
Series 3 |
|
|
|
Note:
1.Square Nose Only. |
Note:
2. Available with Adjustable Nose. |
Note:
3. One 2" wide (50.8mm) Abrasive Strip in color specified
(Black, Gray, Brown, Beige, Red, or Yellow). Meets California
Standard Code Title 24 for the Visually Impaired. |
Detailed
dimensions are subject to manufacturing tolerances. |
All
treads are furnished with sanded backs. |
|
|
|
#

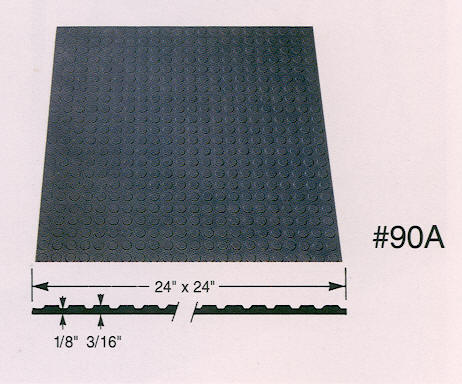

90A
Target® Tile
|
|
Product # 90A Target Tile |
|
Product |
Product Number |
Use |
Thickness |
Size |
Weight |
Colors |
# 90A |
9638-500-2424 |
Heavy Duty, Medium Duty, Light Duty
|
3/16" at stud 1/8" in field (4.76mm at stud
3.175mm in field) |
24"
x 24"(610 x 610mm) |
6.5
lbs/tile (2.95 kg/tile) |
Series 3 |
|
|
|
|
|
|
I |

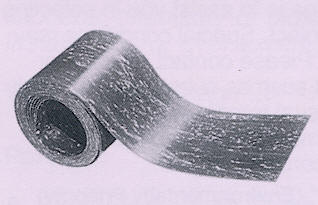

Target®
Stringer Material
|
|
Target Stringer Material |
|
Product |
Product
Number |
Use |
Thickness |
Width |
Length |
Weight |
Colors |
Stringer |
9640-100-0702 |
Stair Stringers |
1/8" (3.18mm) |
6" (153mm) |
up
to 33 feet in one contiguous roll (nominal) |
1.44#/SF |
Series
1 & Series
2 |
7" (178mm) |
8" (153mm) |
9"
(229mm) |
10"
(254mm) |
12"
(305mm) |
|
|
|
Detailed
dimensions are subject to manufacturing tolerances. |
All
treads are furnished with sanded backs. |
Molded Rubber Stair Riser
|
|
|
|
Product Molded Rubber Stair
Riser |
|
Product
Number |
Use |
Thickness |
Depth |
Length |
Weight |
Colors |
9640-100-0701 |
Risers |
1/8"
(3.18mm) |
7"
(178mm) with cove toe |
36",
42&quo(;, 48", 54", 61", 72" (910,
1070, 1220, 1370, 1550, 1830mm) |
0.75
lbs/LF (1.12 kg/M |
Series
1 & Series
2 &
Series 3 |
|
|
|
|
|
|
Rubber
Stair Treads on this page meet requirements of ADA (i.e. the Americans
with Disabilities Act). |
Butting
Stair Treads together is NOT recommended. |
|
|
Colors
- Specifications
- Maintenance
-
Samples -
Price Quotation
- Warranty |
|
RCA
Rubber Company products are Made in America. |
|
